TIVOLI 50 / HG 50
OLI 50 / HG 50
TIV
TIVOLI 63 / HG 63
TIV
OLI 63 / HG 63
TIVOLI 65 / HG 65
TIV
OLI 65 / HG 65
HC 60/70 / PH
HC 60/70 / PH 6
INSTRUCTION MANUAL
MANUAL DO OPERADOR
IMPORTANT INFORMATION: Please read these instructions care-
INFORMAÇÕES IMPORTANTES: Queira ler cuidadosa-
GB
PT
fully and make sure you understand them before using this unit.
mente estas instruções e tenha certeza de entendë las
Retain these instructions for future reference.
antes de usar a serra e guarde para consulta futura.
BETRIEBSANWEISUNG
LIBRETTO D'ISTRUZIONI
WICHTIGE INFORMATION:
Lesen Sie diese Hinweise zur Handha-bung des Geräts aufmerk-
IT
INFORMAZIONI IMPORTANTI: Leggere le istruzioni
DE
sam durch. Verwenden Sie es erst, wenn Sie sicher sind, daß Sie
attentamente e capirle bene prima di usare l'utensile.
alle Anweisungen verstanden haben und gut aufbewahren.
Conservare per ulteriore consultazione.
MANUEL D'INSTRUCTIONS
HASZNÁLATI ÚTMUTATÓ
RENSEIGNEMENTS
IMPORTANTS: Avant d'utiliser cet appareil, veuillez lire aten-
Jótállást vállalni csak rendeltetésszerüen használatba vett
FR
HU
tivement les instructions et assurez-vous de les avoir com-
gépekre tudunk. Kérj ü hogy a gép használatba vétele elött
prises. Conservez les instructions pour référence ultérieure.
gondosan olvassa el a kezelési utasításokat.
HANDLEIDING
EΓXEIPI∆IO XEIPIΣMOE
ΣHMANTIKEΣ
BELANGRIJKE IMPORTANTS: Lees deze handleiding aan-
ΠΛHPOΦOPIEΣ: ∆ιαβάστε πρoσεxτιxά αvτές τις οδηγίες
NL
GR
xαι Φρovτίστε vα τις xαταvoήσετε αvτ τo µηχάvηµα xαι
dachtig en zorg dat u ailes begrijpt alvorens de kettingzaag te
Φuλάξτε το για vα το σuµβοuλεύεστε στο µέλλοv.
gebrulken en be-waar ze voor toekomstige raadpleging.
BRUKERHÅNDBOK
VIKTIG INFORMASJON: Les disse anvisningene nøye
NO
CZ
og forsikre deg om at du forstår dem før du bruker
enheten og oppbevar dem for sen-ere bruk.
INSTRUKCJA OBS≥UGI
OHJEKIRJA
Gwarancja traci waΩnoß∫ w przypadku uΩywania
FI
TÄRKEÄÄ TIETOA: Lue nämä ohjeet huolellisesti ja
PL
urzådzenia do celów innych niΩ wymienione w instrukcji
varmista, että olet ymmärtänyt ne, ennen kuin alat käyttää
obs≤ugi. Prosimy o uwaΩne przeczytanie instrukcji oraz o
tätä laitetta ja säilytä myöhempää tarvetta varten.
stoowanie si™ do zalece~ i wskazówek w niej zawartych.
BRUKSANVISNING
NÁVOD NA OBSLUHU
Dôleæitá informácia: Pred
pouæitím stroja si starostlivo preËítajte tento návod na
VIKTIG INFORMATION: Läs instruktionerna noggrant och
SE
SK
obsluhu a uistite sa æe ste mu dôkladne porozumeli.
försäkra dig om att du förstår dem innan du använder
Návod starostlivo uschovajte pre potrebu v budúcnosti.
utrustningen och spara dem för framtida behov.
BRUGERHÅNDBOG
ИНCTPYKЦИИ
BAЖHЫE CBEДEHИЯ:
VIGTIGE OPLYSNINGER: Læs instruktionerne
Bнимaтeльнo пpoчитать инстрyкции и хрoщo их
DK
RU
omhyggeligt, før du bruger enheden og gemme til senere
пoнять, пepeд тeм как пoльзoвaтьcя блoкoм.
henvisning.
Хpaнить инcтpyкции для дaльнейшиx кoнcyльтаций.
MANUAL DE INSTRUCCIONES
KASUTUSJUHEND
INFORMACIÓN IMPORTANTE: Lea atentamente las instruc-
TÂHTIS INFORMATSIOON: Lugege kasutusjuhend enne
EE
ES
seadme kasutamist kindlasti põhjalikult läbi ning veenduge,
ciones y asegúrese de entenderlas antes de utilizar esta apara-
to. Conserve las instrucciones para la referencia en el futuro.
et olete kõigest täpselt aru saanud.
A
19
18
6
61
1
19
6
18
19
B1
20
B2
B3
20
B4
B5
C
20

Advertisement

Table of Contents
loading

Summary of Contents for Electrolux HC 60/70 / PH 6HC 60/70 / PH 611

  • Page 1 The Electrolux Group. The world’s No.1 choice. The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
  • Page 2 1 ltr 2 Strokes McCulloch Engine totally sintetyc oil 50:1 40:1 2,5% 25 cm 1 ltr 25 cm TIVOLI 65 / HG 65...
  • Page 4 Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice. Im Sinne des Fortschritts behält sich der Hersteller das Recht vor, technische Änderungen ohne vorherigen Hinweis durchzuführen. La Maison se réserve la possibilité...
  • Page 5: General Description

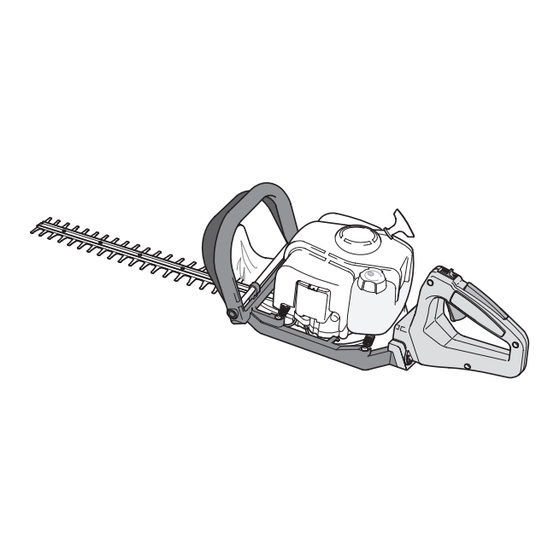

    1) BLADES 2) BLADE GUIDE 3) FUEL CAP 4) FRONT HANDLE 5) STARTER HANDLE 6) CYLINDER COVER 7) SPARK PLUG 8) HANDLE 9) THROTTLE CONTROL TRIGGER 10) STOP SWITCH PRODUCT IDENTIFICATION LABEL CAUTION! • Use the hedge trimmer properly in order to avoid injuries. •...
  • Page 6 Safety apparel: Approved boots Choke closed (Hot ignition) B - Description of the safety devices on the machine, Controls and maintenance necessary to ensure safe conditions WARNING! Never use the machine for any reason with its safety devices out of order •...
  • Page 7: Safety Instructions

    • Remember the risk of fire. Make sure the muffler is always correctly fastened to the machine. Never use the machine with a defective or damaged muffler. • CAUTION! Engine exhaust fumes con- tain carbon monoxide which can cause poi- soning.
  • Page 8: Fuel Mixture

    • Keep all parts of the body and clothing away from the blades during startup and while the engine is running. • Always work from a stable position on your feet. • Do not use the hedge trimmer while standing on a ladder or other unstable support.
  • Page 9: Fuel Storage

    • Clean the area around the fuel cap before removing it, to prevent any impurities from con- taminating the fuel. • Take the cap off the fuel container carefully. Unscrew the cap on the fuel tank and fill it with the necessary quality, using a funnel.
  • Page 10: Cold Engine

    F. Starting and stopping the engine CAUTION! • Before starting the machine read this manu- al in its entirety, with special attention to the safety devices and recommended personal protection equipment. • Before starting the machine make sure it is in perfect conditions and that all the safety devices are correctly installed and in perfect working order.
  • Page 11: Spark Plug

    CAUTION! • Do not make any repairs or adjustments on the machine that are not described in this manual. • Contact an authorized service center if you have any questions about the repairs to make. • The warranty may be invalidated in case of improper adjustments made by unautho- rized persons not employed by authorized service centers.
  • Page 12: Troubleshooting Table

    Make sure the STOP switch is on I. Make sure that the fuel tank is at least 25% full. Make sure the air filter is clean. Remove the sparkplug, dry and clean it, then return it to its place. If necessary, replace it.
  • Page 13: Conformity Certificate

    Vibrations on rear grip (m/s ) (ISO 5349) Vibrations on front grip (m/s ) (ISO 5349) Conformity certificate Valmadrera, 15.12.01 Giuseppe Todero (Technical Manager) Electrolux Outdoor Products Via Como 72, 23868 Valmadrera (Lecco) ITALY Technical specifications (dBA) (ISO 11201) 2150 8500 2800...
