Instruction Manual
Manuel d'instructions
Betriebsanweisung
Manual de instrucciones
English
Please read these instructions carefully and make sure you understand
them before using this unit.
Français
Avant d'utiliser cet appareil, veuillez lire attentivement les instructions et
assurez--vous de les avoir comprises.
Deutsch
Lesen Sie diese Hinweise zur Handhabung des Geräts aufmerksam durch.
Verwenden Sie es erst, wenn Sie sicher sind, daß Sie alle Anweisungen
verstanden haben.
Español
Lea atentamente las instrucciones y asegúrese de entenderlas antes de
utilizar esta unidad.
R
CS2137
530163281
12/11/02
Advertisement
Table of Contents
Related Manuals for Electrolux Jonsered CS2137
Summary of Contents for Electrolux Jonsered CS2137

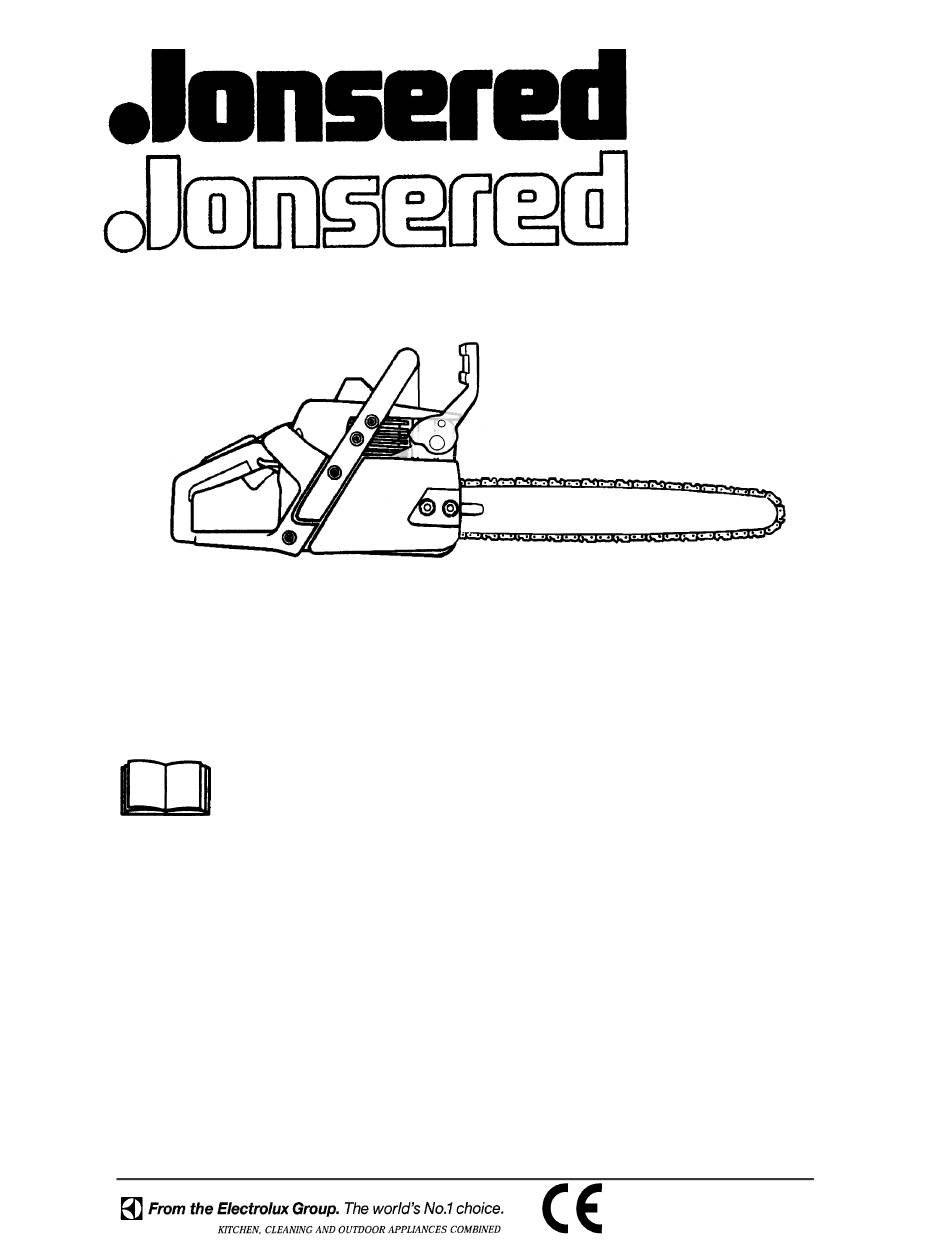

- Page 1 CS2137 Instruction Manual Manuel d’instructions Betriebsanweisung Manual de instrucciones English Please read these instructions carefully and make sure you understand them before using this unit. Français Avant d’utiliser cet appareil, veuillez lire attentivement les instructions et assurez--vous de les avoir comprises. Deutsch Lesen Sie diese Hinweise zur Handhabung des Geräts aufmerksam durch.
-
Page 2: Identification Of Symbols
IDENTIFICATION (WHAT IS WHAT?) Chain Front Handle Front Hand Guard Adjustment Tool Starter Rope (Bar Tool) Idle Speed Screw ON/STOP Muffler Switch Chain Primer Bulb Bumper Starter Bar Oil Fill Cap Spike Fuel Mix Fill Cap Housing Cylinder Cover Chain Throttle Direction Lockout... -
Page 3: Safety Rules
SAFETY RULES S Carefully plan your sawing operation in ad- WARNING vance. Do not start cutting until you have a Always disconnect clear work area, secure footing, and, if you spark plug wire and place wire where it can- are felling trees, a planned retreat path. not contact spark plug to prevent accidental OPERATE YOUR SAW SAFELY starting when setting up, transporting, ad-... - Page 4 S Mix and pour fuel in an outdoor area on bare Kickback Path ground; store fuel in a cool, dry, well venti- lated place; and use an approved, marked container for all fuel purposes. Wipe up all fuel spills before starting saw. S Move at least 10 feet (3 meters) from fuel- ing site before starting engine.
-
Page 5: Kickback Safety Features
Symmetrical Guide Bar Large Radius Tip Elbow locked S Low--Kickback Chain, designed with a contoured depth gauge and guard link which deflect kickback force and allow wood to gradually ride into the cutter. Thumb on underside of handlebar Low-Kickback Chain Contoured Depth Gauge Elongated Guard Link Deflects Kickback... -
Page 6: Safety Notice
SAFETY NOTICE: skin color or texture, or loss of feeling in the Exposure fingers, hands, or joints, discontinue the use vibrations through prolonged use of gasoline of this tool and seek medical attention. An powered hand tools could cause blood anti-vibration system does not guarantee the vessel or nerve damage in the fingers, avoidance of these problems. -
Page 7: Operating Your Unit
Adjusting the tension: Chain tension is very important. Chain stretches during use. This is especially true during the first few times you use your saw. Always check chain tension each time you use and refuel your saw. You can adjust the chain tension by loosening the chain brake Place chain onto the sprocket nuts and turning the adjusting screw 1/4 of a... -
Page 8: Starting A Cold Engine
will cause engine damage. When mixing fuel 2. Pull the choke/fast idle lever out to the full follow the instructions printed on the container. extent. Always read and follow the safety rules relating 3. Slowly press the primer bulb 6 times. to fuel before fueling your unit. -
Page 9: Cutting Methods
S The inertia activated chain brake is acti- should be placed on the ground with the en- vated if the front hand guard is pushed for- gine running. ward, either manually or by centrifugal Place the saw on firm ground. Grip the rear force. - Page 10 NOTCH CUT AND FELLING THE Important points TREE S Cut only one log at a time. S Cut shattered wood very carefully; sharp S Make notch cut by cutting the top of the pieces of wood could be flung toward oper- notch first.
-
Page 11: Limbing And Pruning
IMPORTANT POINTS S Roll the log over and finish with a second overcut. S Watch out for springpoles. Use extreme S Give special attention to logs under strain caution when cutting small size limbs. Slen- to prevent the saw from pinching. Make der material may catch the saw chain and be the first cut on the pressure side to relieve whipped toward you or pull you off balance. -
Page 12: Service And Adjustments
SERVICE AND ADJUSTMENTS After each use, ensure ON/STOP switch is WARNING in the STOP position, then clean all sawdust : Disconnect the spark from the guide bar and sprocket hole. plug before performing maintenance, except To maintain guide bar: for carburetor adjustments. S Move ON/STOP switch to the STOP posi- We recommend all service and adjustments tion. -
Page 13: Chain Sharpening
CHAIN SHARPENING STORAGE Chain sharpening is a complicated task that WARNING requires special tools. We recommend that : Stop engine and allow to you refer chain sharpening to a professional cool, and secure the unit before storing or chain sharpener. transporting in a vehicle. -
Page 14: Declaration Of Conformity
2000/14/EC EU Declaration of Conformity relating to 2000/14/EC We, Poulan/Weed Eater Division, Electrolux Home Products, Inc., Texarkana, TX, 75501, USA, Tél. : +1 903 223 4100, declare under sole responsibility that the Jonsered model CS2137 chain saw was assessed in accordance with Annex V of the DIRECTIVE and from serial numbers 2002--249(N or D)00001 and onwards, conforms to the provisions of the DIRECTIVE. -
Page 15: Technical Data Sheet
TECHNICAL DATA SHEET Noise levels CS2137 Engine CS2137 Equivalent (see note 1) noise Cylinder volume, cm pressure level at operator ’s ear, Stroke, mm measured according to relevant Idle speed, rpm 3,000 international standards, dB(A) Recommended max. Equivalent (see note 1) noise speed, unloaded, rpm 13,000 power level, measured...
