Atlona AT-VGA-RS300SRS User Manual

Vga over cat5 extender w/stereo audio and rs-232
Hide thumbs Also See for AT-VGA-RS300SRS:
Table of Contents

Advertisement

Quick Links

Download this manual

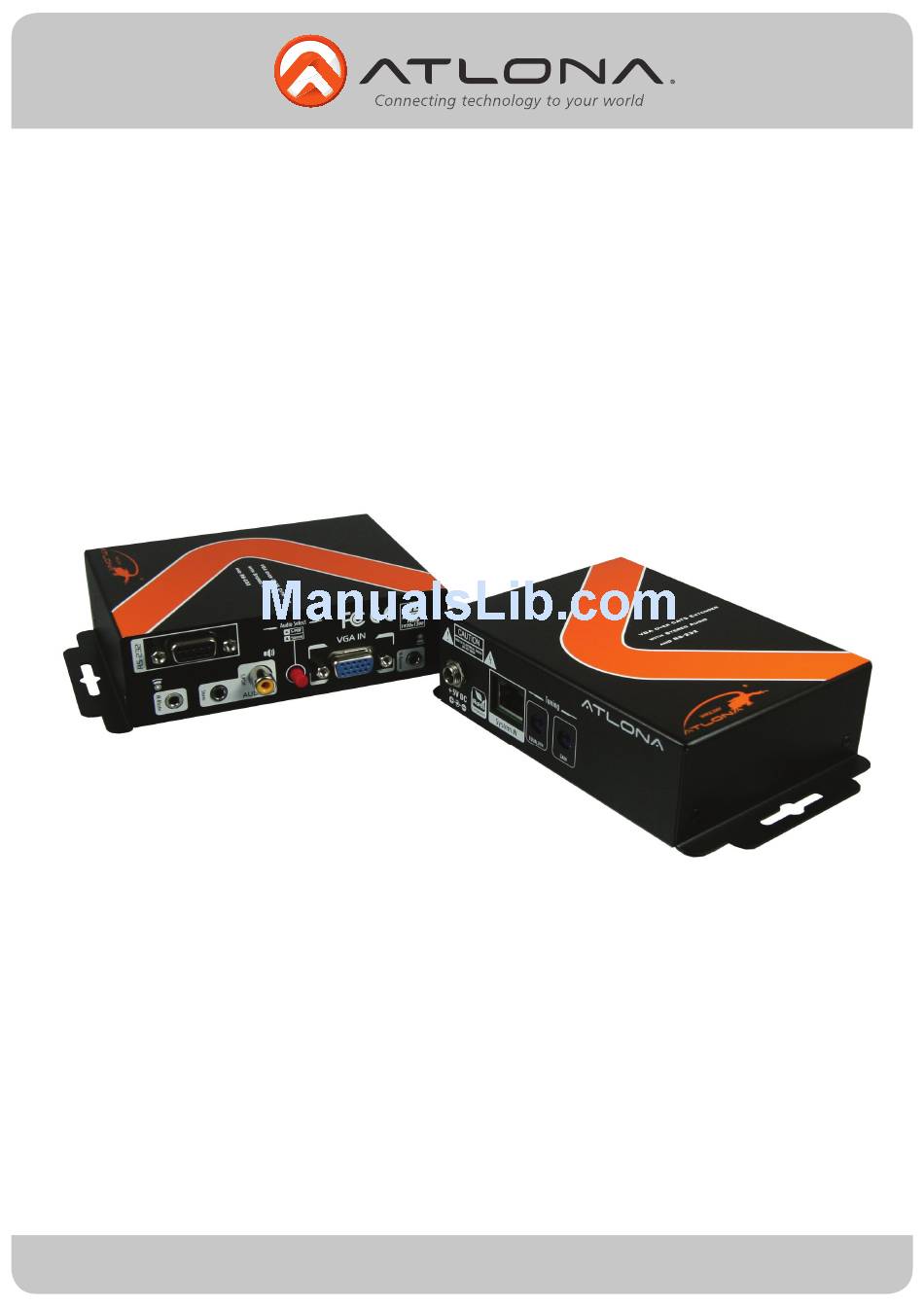

Atlona VGA over CAT5 Extender
w/Stereo Audio and RS-232
AT-VGA-RS300SRS

User Manual

Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-VGA-RS300SRS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlona AT-VGA-RS300SRS

Summary of Contents for Atlona AT-VGA-RS300SRS

  • Page 1: User Manual

    Atlona VGA over CAT5 Extender w/Stereo Audio and RS-232 AT-VGA-RS300SRS User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 2: Table Of Contents

    5.2 AT-VGA-RS300R 5.2.1. Front Panel ---------------------------------------------------------- 7 5.2.2. Rear Panel ---------------------------------------------------------- 8 6. DIP Switch ---------------------------------------------------------- 9 7. Installation ---------------------------------------------------------- 9 8. Safety Information ---------------------------------------------------------- 10 9. Warranty ---------------------------------------------------------- 11 10. Registration ---------------------------------------------------------- 12 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 3: Introduction

    Introduction The Atlona AT-VGA-RS300SRS (Sender and Receiver) extender unites with stereo audio allows users to extend VGA (up to 1920x1200) signals further than before. Using a single CAT5/5e/6 cable these units extend signal distances up to 1000ft (300m) with no signal degradation. With built in EQ and GAIN control the transmission path can be adjusted to adapt to the cable quality and video bandwidth.

  • Page 4: Specifications

    Wall mount case with screws Power Supply Interlocked 5V 2A DC Power Consumption Operation Temperature 32°F - 104°F or 0°C - 40°C Storage Temperature -4°F - 140°F or -20°C - 60°C 20-90% RH (no condensation) Relative Humidity Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 5: Front Panel

    5. Push-in button: select between S/PDIF and analog stereo audio [button down-S/PDIF, button up-Stereo] 6. VGA IN: connect to a VGA input source or a component video source via a VGA-component break cable 7. IR-Receiver: connect to IR receiver for IR pass-through from AT-VGA-RS300R to AT-VGA-RS300R Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 6: Rear Panel

    9. Local VGA: VGA loop-out to a local VGA display or component video display via a VGA component breakout cable. 10. System OUT: Plug in a CAT5/5e/6 cable that needs to be linked to AT-VGA-RS300R 11. Local S/PDIF: Digital stereo audio loop-out 12. Local Stereo: Analog stereo audio loop-out Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 7: At-Vga-Rs300R

    4. S/PDIF Out: Connect S/PDIF connector to a digital audio device 5. VGA Out: Connect to VGA display or use a breakout cable to connect to a component video display 6. IR Blaster: Connect to the IR blaster. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 8: Rear Panel

    8. System IN: Connect CAT5/5e/6 cable to this port then the AT-VGA-RS300S In Port 9. Equalizer: Adjust the sharpness by moving this rotary control 10. Gain: Adjust the brightness with movements of the rotary control Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 9: Dipswitch

    Performance Guide for VGA Transmissions over CAT5/5e/6 Cable Performance rating Type of CAT5/5e/6 Cable Wiring Shielding AT5e Solid **** Unshielded (UTP) Shielded (STP) Stranded Unshielded (UTP) Shielded (STP) Termination Please use EIA/TIA-568-B termination (T568B) at all times Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 10: Safety Information

    Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-VGA-RS300SRS. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

  • Page 11: Warranty

    Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss.

  • Page 12: Registration

    Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
