NOTE: Because replication is not synchronous (continuous), data in a secondary volume is only as current
as the last replication that completed successfully. Replications can be performed manually or scheduled.
Snapshot operations are I/O-intensive. Every write to a unique location in a master volume after a
snapshot is taken will cause an internal read and write operation to occur in order to preserve the snapshot
data. If you intend to create snapshots of, create volume copies of, or replicate volumes in a vdisk, ensure
that the vdisk contains no more than four master volumes, snap pools, or both. For example: 2 master
volumes and 2 snap pools; 3 master volumes and 1 snap pool; 4 master volumes and 0 snap pools.

Replication actions

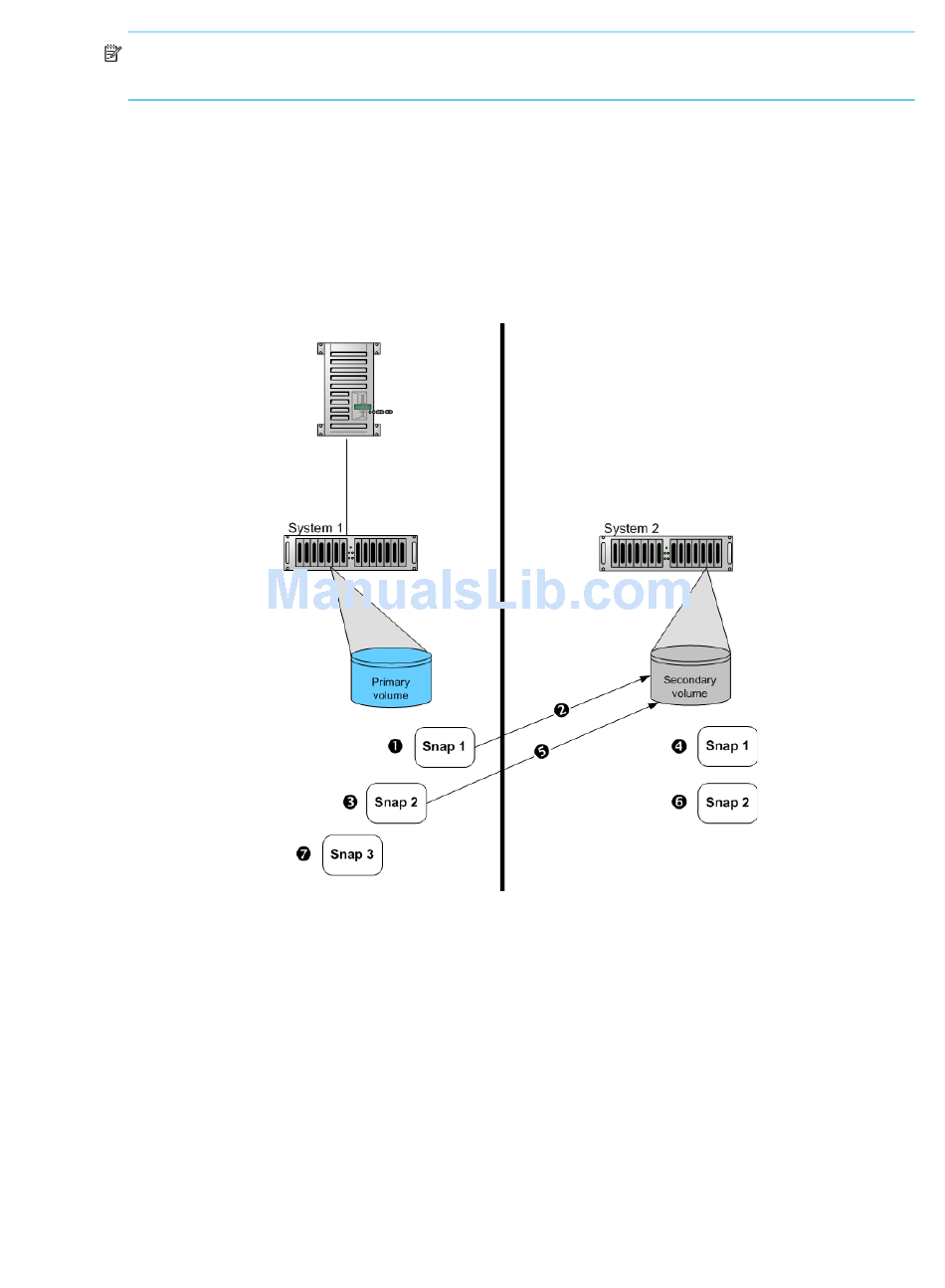

The following figure illustrates actions that occur during a series of replications from System 1 to System 2.
1 Take initial snapshot and initiate replication.
2 Initial replication consists of a full data copy.
3 Take second snapshot and request replication. This
can be taken while the initial replication is in progress.
4 Snapshot taken on secondary volume. This is the first
replication sync point.
5 When the initial replication is complete, the second
replication automatically starts. Only the data
changed since Snap 1 is replicated.
Figure 5

Actions that occur during a series of replications

6 Second snapshot taken on secondary volume. This is
the second sync point.
7 Other snapshots can be taken and replication initiated
on the primary volume while replication is in progress.
These snapshots are queued waiting for prior
replications to complete. These replication snapshots
will not become sync points until their replications are
complete.
