ASUS Q-Connector (system panel)
You can use the ASUS Q-Connector to connect/disconnect chassis front panel
cables in a few steps. Refer to the instructions below to install the ASUS
Q-Connector.

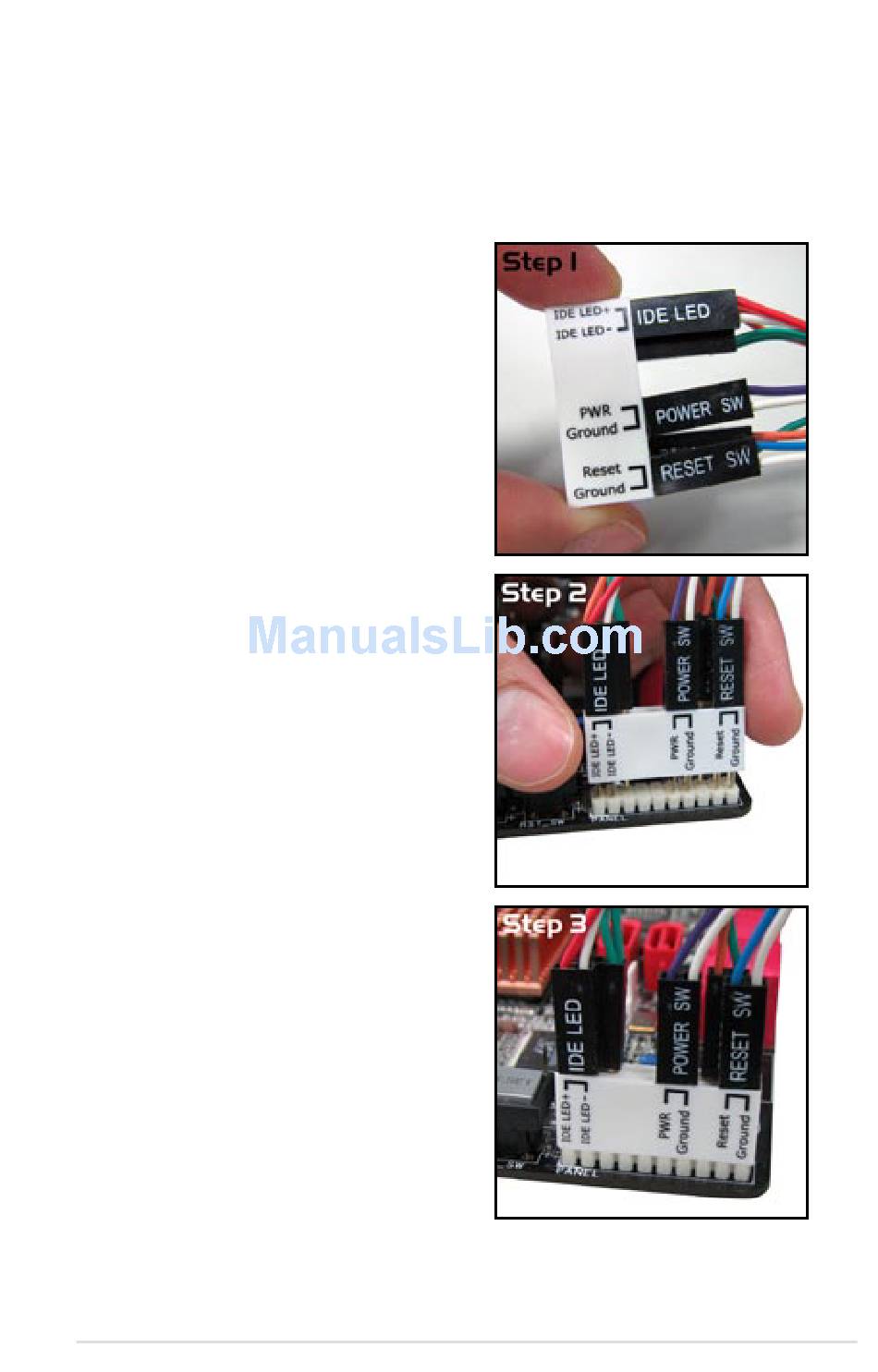

1. Connect the front panel cables to
the ASUS Q-Connector.
Refer to the labels on the
Q-Connector to know the detailed
pin definitions, then match them
to the respective front panel cable
labels.
2. Install the ASUS Q-Connector to
the system panel connector, making
sure the orientation matches the
labels on the motherboard.
3. The front panel functions are now
enabled. The figure shows the
Q-Connector properly installed on
the motherboard.
ASUS P6T6 WS Revolution 2-33
