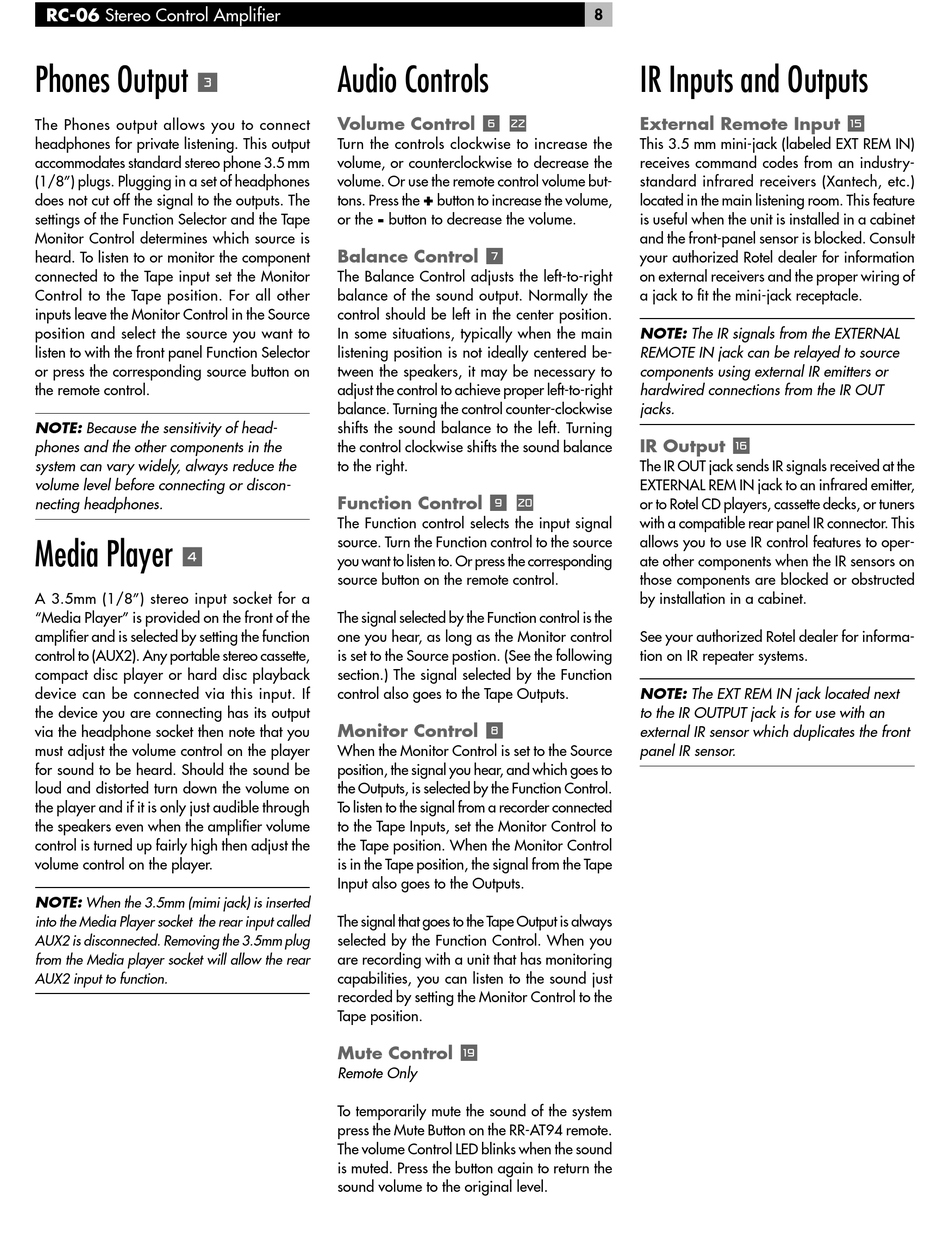

RC-06 Stereo Control Amplifier

Phones Output

3
The Phones output allows you to connect
headphones for private listening. This output
accommodates standard stereo phone 3.5 mm
(1/8") plugs. Plugging in a set of headphones
does not cut off the signal to the outputs. The
settings of the Function Selector and the Tape
Monitor Control determines which source is
heard. To listen to or monitor the component
connected to the Tape input set the Monitor
Control to the Tape position. For all other
inputs leave the Monitor Control in the Source
position and select the source you want to
listen to with the front panel Function Selector
or press the corresponding source button on
the remote control.
NOTE: Because the sensitivity of head-
phones and the other components in the
system can vary widely, always reduce the
volume level before connecting or discon-
necting headphones.

Media Player

4
A 3.5mm (1/8") stereo input socket for a
"Media Player" is provided on the front of the
amplifi er and is selected by setting the function
control to (AUX2). Any portable stereo cassette,
compact disc player or hard disc playback
device can be connected via this input. If
the device you are connecting has its output
via the headphone socket then note that you
must adjust the volume control on the player
for sound to be heard. Should the sound be
loud and distorted turn down the volume on
the player and if it is only just audible through
the speakers even when the amplifi er volume
control is turned up fairly high then adjust the
volume control on the player.
NOTE: When the 3.5mm (mimi jack) is inserted
into the Media Player socket the rear input called
AUX2 is disconnected. Removing the 3.5mm plug
from the Media player socket will allow the rear
AUX2 input to function.

Audio Controls

6 p
Volume Control
Turn the controls clockwise to increase the
volume, or counterclockwise to decrease the
volume. Or use the remote control volume but-
tons. Press the + button to increase the volume,
or the - button to decrease the volume.
7

Balance Control

The Balance Control adjusts the left-to-right
balance of the sound output. Normally the
control should be left in the center position.
In some situations, typically when the main
listening position is not ideally centered be-
tween the speakers, it may be necessary to
adjust the control to achieve proper left-to-right
balance. Turning the control counter-clockwise
shifts the sound balance to the left. Turning
the control clockwise shifts the sound balance
to the right.
9 i
Function Control
The Function control selects the input signal
source. Turn the Function control to the source
you want to listen to. Or press the corresponding
source button on the remote control.
The signal selected by the Function control is the
one you hear, as long as the Monitor control
is set to the Source postion. (See the following
section.) The signal selected by the Function
control also goes to the Tape Outputs.
8
Monitor Control
When the Monitor Control is set to the Source
position, the signal you hear, and which goes to
the Outputs, is selected by the Function Control.
To listen to the signal from a recorder connected
to the Tape Inputs, set the Monitor Control to
the Tape position. When the Monitor Control
is in the Tape position, the signal from the Tape
Input also goes to the Outputs.
The signal that goes to the Tape Output is always
selected by the Function Control. When you
are recording with a unit that has monitoring
capabilities, you can listen to the sound just
recorded by setting the Monitor Control to the
Tape position.
u
Mute Control
Remote Only
To temporarily mute the sound of the system
press the Mute Button on the RR-AT94 remote.
The volume Control LED blinks when the sound
is muted. Press the button again to return the
sound volume to the original level.
8

IR Inputs and Outputs

External Remote Input
This 3.5 mm mini-jack (labeled EXT REM IN)
receives command codes from an industry-
standard infrared receivers (Xantech, etc.)
located in the main listening room. This feature
is useful when the unit is installed in a cabinet
and the front-panel sensor is blocked. Consult
your authorized Rotel dealer for information
on external receivers and the proper wiring of
a jack to fi t the mini-jack receptacle.
NOTE: The IR signals from the EXTERNAL
REMOTE IN jack can be relayed to source
components using external IR emitters or
hardwired connections from the IR OUT
jacks.
r
IR Output
The IR OUT jack sends IR signals received at the
EXTERNAL REM IN jack to an infrared emitter,
or to Rotel CD players, cassette decks, or tuners
with a compatible rear panel IR connector. This
allows you to use IR control features to oper-
ate other components when the IR sensors on
those components are blocked or obstructed
by installation in a cabinet.
See your authorized Rotel dealer for informa-
tion on IR repeater systems.
NOTE: The EXT REM IN jack located next
to the IR OUTPUT jack is for use with an
external IR sensor which duplicates the front
panel IR sensor.
