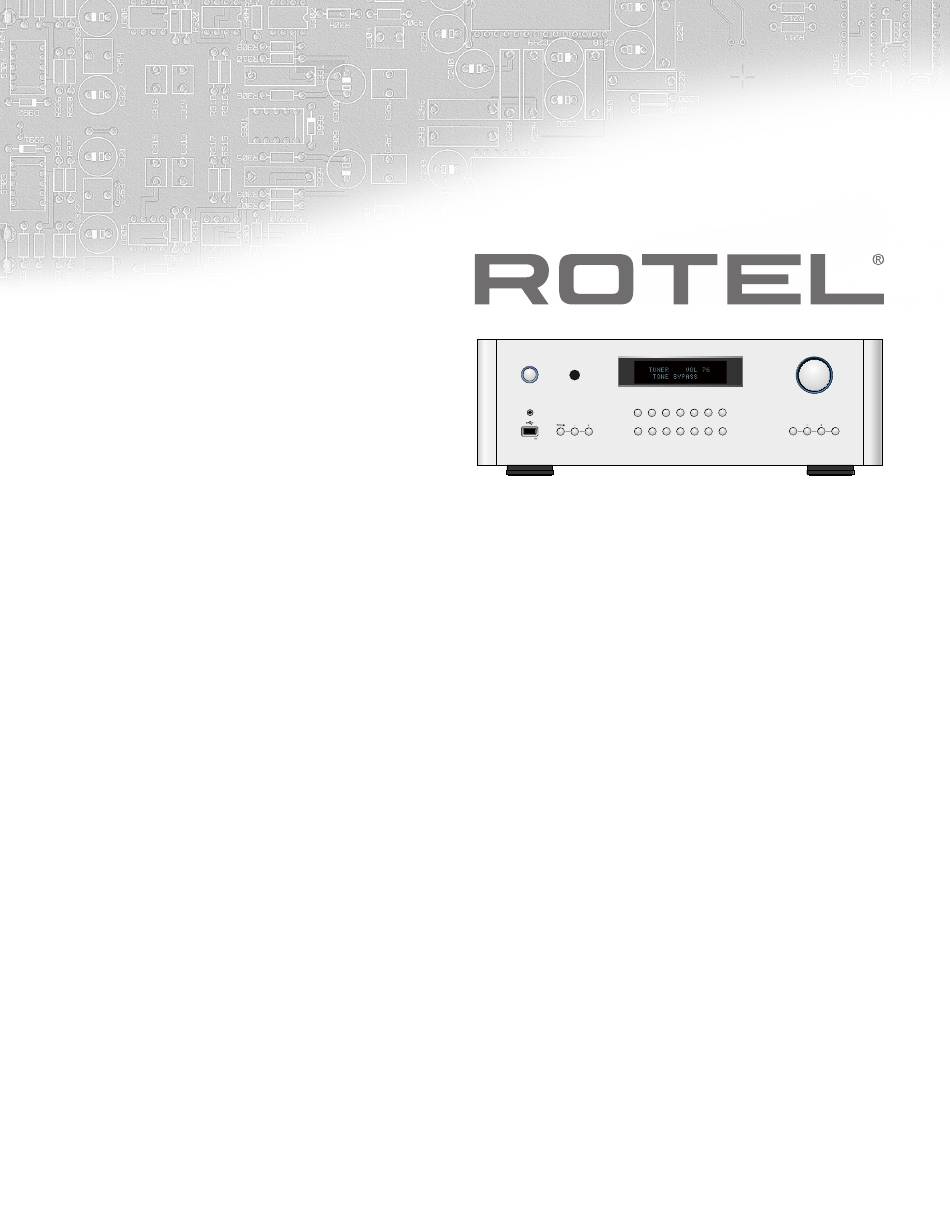

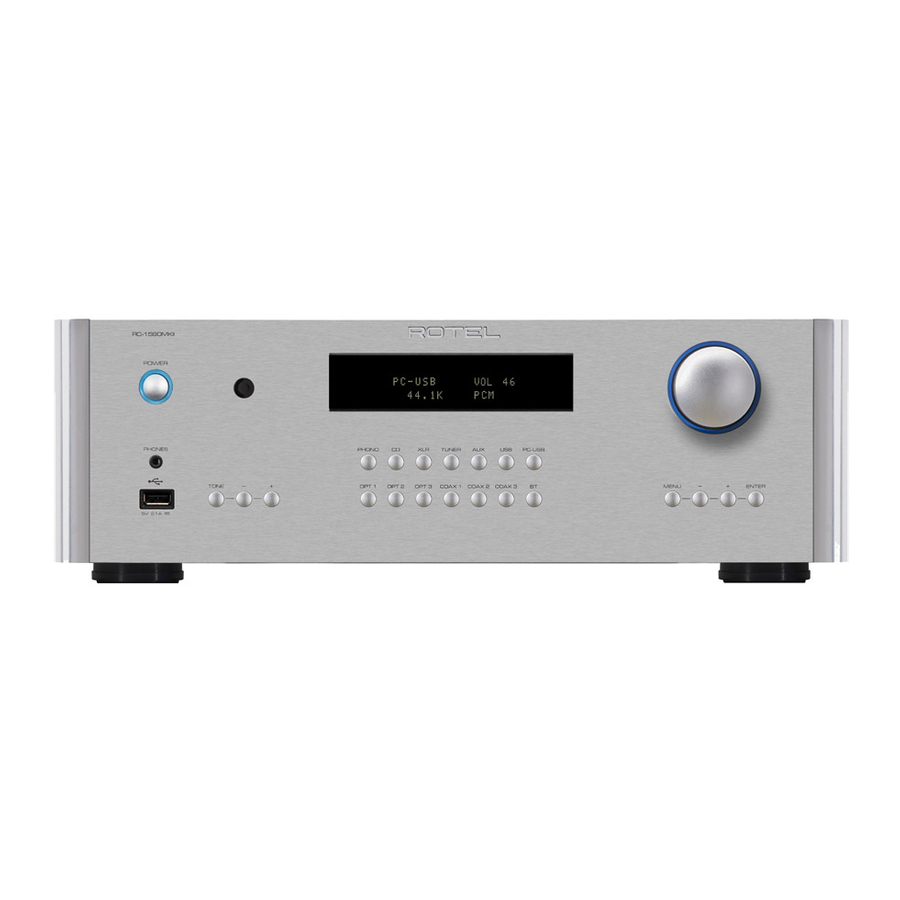

  • Page 1 RC-1590 POWER TUNER PC-USB PHONES PHONO OPT 1 OPT 2 OPT 3 COAX 1 COAX 2 COAX 3 MENU ENTER 5V 2. 1 A RC‑1590 Stereo Control Amplifier Amplificateur de Contrôle Stéréo Stereo‑Vorverstärker Preamplificador Estereofónico Stereo‑regelversterker Preamplificatore Stereo Stereokontrollförstärkare Предварительный стерео усилитель...

  • Page 2: Important Safety Instructions

    Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the Rotel products are designed to comply with international manufacturer’s instructions. directives on the Restriction of Hazardous Substances...
  • Page 3 English Figure 1: Controls and Connections Bedieningselementen en aansluitingen Commandes et Branchements Controlli e connessioni Bedienelemente und Anschlüsse Kontroller och anslutningar Controles y Conexiones Органы управления и разъемы w e r t PUSH PUSH...
  • Page 4 RC‑1590 Stereo Control Amplifier Figure 2: RR‑AX100 Remote Control Afstandsbediening RR‑AX100 Télécommande infrarouge RR‑AX100 Telecomando RR‑AX100 Fernbedienung RR‑AX100 RR‑AX100 fjärrkontroll Mando a Distancia RR‑AX100 Пульт ДУ RR-AX100 SETUP RR-AX100...
  • Page 5 Branchements des entrées et sorties analogiques Collegamenti ingressi ed uscite analogici Analoge Ein‑ und Ausgangsanschlüsse Anslutningar för analoga in‑ och utgångar Entradas y Salidas Analógicas Аналоговые входы и выходы PH0NO ROTEL RC-1590 PUSH PUSH ROTEL RCD-1570 ROTEL RB-1590 RIGHT INPUT LEFT INPUT...
  • Page 6 Branchements des entrées et sorties symétriques (XLR) Collegamenti ingressi ed uscite bilanciati (XLR) Symmetrische Ein‑ und Ausgangsanschlüsse (XLR) Balanserade in‑ och utgångar (XLR) Entradas y Salidas Balanceadas (XLR) Балансные (XLR) входы и выходы ROTEL RCD-1570 ROTEL RC-1590 PUSH PUSH ROTEL RB-1590 RIGHT INPUT LEFT INPUT UNBALANCED...
  • Page 7 Collegamenti ingressi digitali e segnali Trigger 12 V Digitaleingänge und 12V TRIG‑Ausgang Anslutningar för digitala ingångar och 12‑volts styrsignaler Entradas Digitales y Salida para Señal de Disparo de 12V Цифровые входы и 12-В триггерный выход ROTEL RCD-1570 ROTEL RC-1590 PUSH PUSH Computer CD PLAYER (Supplied)
  • Page 8 RC‑1590 Stereo Control Amplifier Figure 6: Front USB Input USB‑ingang op het voorpaneel Entrée USB en face avant Ingresso USB frontale Frontseitiger USB‑Eingang USB‑port på fronten Entrada USB Frontal USB вход на передней панели iPhone...
  • Page 9 Bij het maken van de verbindingen: Zorg dat niet alleen de RC-1590, maar de gehele installatie uitstaat, als nog niet alle verbindingen gemaakt zijn. Zorg dat niet alleen de RC-1590, maar de gehele installatie ook uitstaat, als u verbindingen gaat wijzigen.

  • Page 10: About Rotel

    Headphone Output 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 All of us at Rotel thank you for buying this product. We are sure it will bring Remote Sensor 2 .

  • Page 11: Ac Power And Control

    AC Power Input is ever required. Your RC-1590 is configured at the factory for the proper AC line voltage in Placement the country where you purchased it (either 120 volts AC or 230 volts AC Like all audio components that handle low-level signals, the RC-1590 can with a line frequency of either 50 Hz or 60 Hz).

  • Page 12: Headphone Output

    RC‑1590 Stereo Control Amplifier 12V TRIGGER Connection and played by the RC-1590. The unit is capable of decoding PCM signals Some audio components can be turned on automatically when they receive a up to 24 bit, 192kHz. 12V turn on “signal”. The two12V Trigger Outputs on the RC-1590 provide the required signal.

  • Page 13: Remote Sensor

    The front panel display shows the source selected, volume level and tone Bass and Treble Controls 9 C settings. The display can be dimmed using the RC-1590 setup menu or the IR remote controller. See the Dimmer Control section of this manual for details.

  • Page 14: Setup Menu

    Menu. Adjustment made using the button is temporary only and not saved after power off. • Power cycle the RC-1590 and reboot your PC after changing the USB Audio mode to ensure both units are properly configured. Rotel Link e Many audio playback applications do not support 384kHz sampling rate.
  • Page 15 • PC-USB VOL: VARIABLE (disabled) is factory default. • ROTEL LINK RCD: Selects how the CD player is connected to the amplifier, • OPT1 VOL: VARIABLE (disabled) is factory default. either CD (analog), COAX1, COAX2 and BAL-XLR. CD is the factory default.

  • Page 16: Troubleshooting

    If another electrical device works when plugged into the power outlet, but the Internet. the Power Indicator still will not light when the RC-1590 is plugged into the wall outlet, it indicates that the internal power fuse may have blown.

  • Page 17: Specifications

    Weight (net) 9.2 kg, 20.28 lbs. All specifications are accurate at the time of printing. Rotel reserves the right to make improvements without notice. Rotel and the Rotel Hi-Fi logo are registered trademarks of The Rotel Co., Ltd, Tokyo, Japan.
  • Page 18 Vertrieb: B&W Group Germany GmbH Kleine Heide 12 D-33790 Halle/Westf., Deutschland Tel.: 05201 / 87170 Fax: 05201 / 73370 E-Mail: info@bwgroup.de www.rotel.com RC-1590 Owner’s Manual Ver K 072618 English • Français• Deutsch • Español • Nederlands • Italiano • Svenska • Pусский...
  • Page 19 RC-1590 Stereo Preamplifier...
  • Page 20 For music enthusiasts who won’t accept compromise, Rotel teams. Analog inputs are all very low noise the RC-1590 preamplifier is in a class by itself, at a price circuitry and include a high performance moving magnet that belies its incredible performance.
