Chapter 2: Connecting to the Network
2.3.5 Connecting the 3E02-08-ATX Ethernet Switch
Module
You can connect each of the eight ports on the 3E02-08-ATX to a
10BASE-T port on a device such as a workstation, server, hub, etc. using
UTP wiring. The RJ45 ports on the 3E02-08-ATX provide internal
crossover, which means that, depending on whether crossover is provided
on the device you're connecting to, you can use either crossover or
straight-through UTP cable to connect a device to a port. Refer to
Appendix B for cable specifications.
Connect one end of a UTP cable to an open 10BASE-T port on the
3E02-08-ATX and the other end to the RJ45 port on the device (see
Figure 2-5). If the device doesn't have an RJ45 port, connect a 10BASE-T
transceiver directly to the device's AUI port, and then connect the UTP
cable to the RJ45 port on the transceiver.
SEGMENT
OFFLINE
Page 2-6
1X 2X 3X 4X 5X

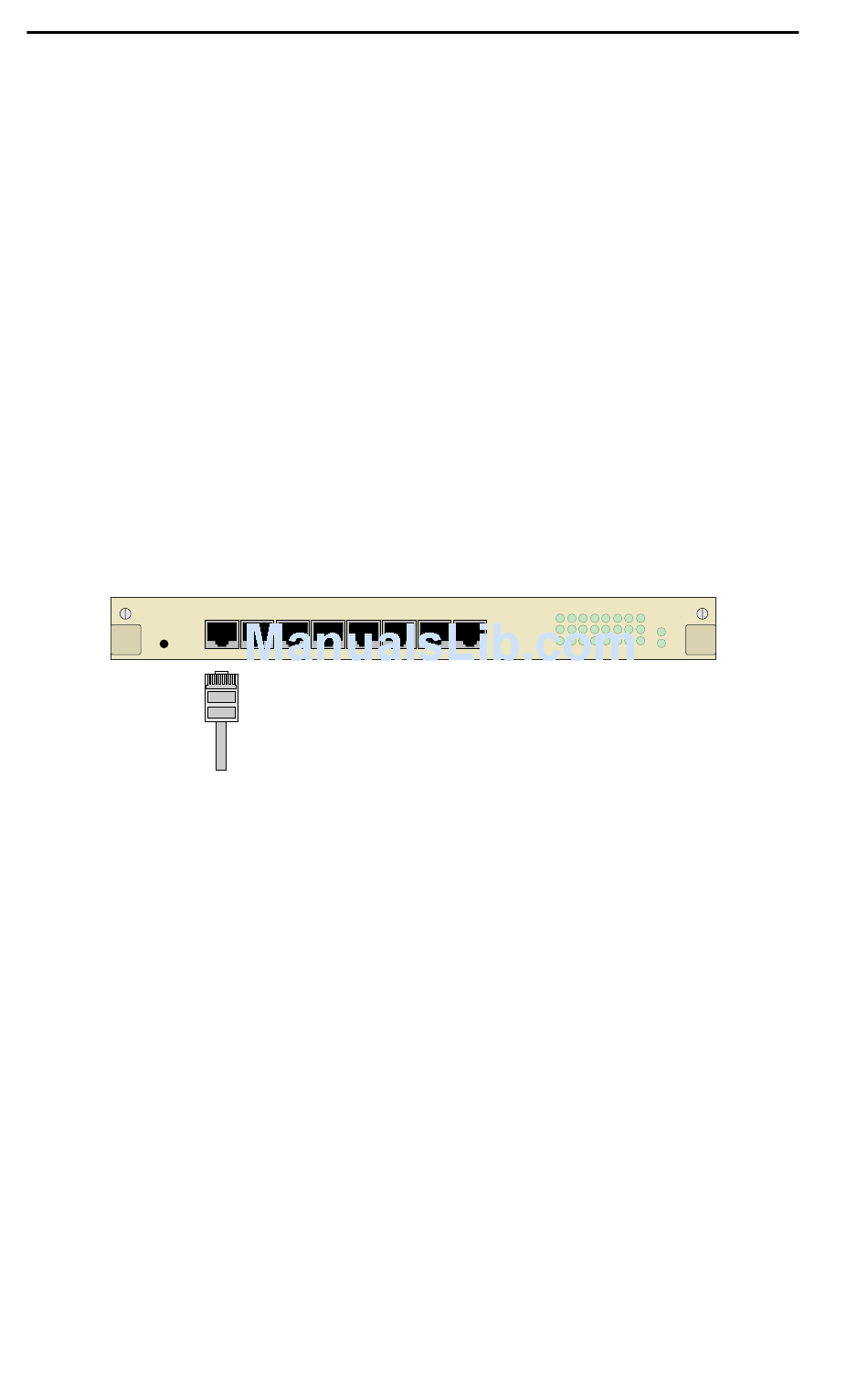

Figure 2-5 Connecting the 3E02-08-ATX
OCTAL IEEE 802.3 / ETHERNET 10BASE-T
6X 7X 8X
LINK
ACT
COL
1
Ethernet Switch Module User Guide
PROC
2 3 4 5 6 7 8
PWR
