3Com 3CRWPS10075-US - OfficeConnect Wireless 54Mbps 11g Print Server User Manual page 53

2 If Internet access from your location is via a Proxy Server, check Access IPP
Server via Proxy Server, and enter details of your Proxy Server. This will be
the same as your Browser configuration.
3 Enter the IP Address or URL of the IPP Server.
4 Click Select Device Port to view the available ports on the IPP Server, and
select the appropriate port. A connection to the IPP Server will be
established at this time.
5 Click Save to create the IPP port on your system. You will see a message
confirming that the port has been created, then the following dialog:

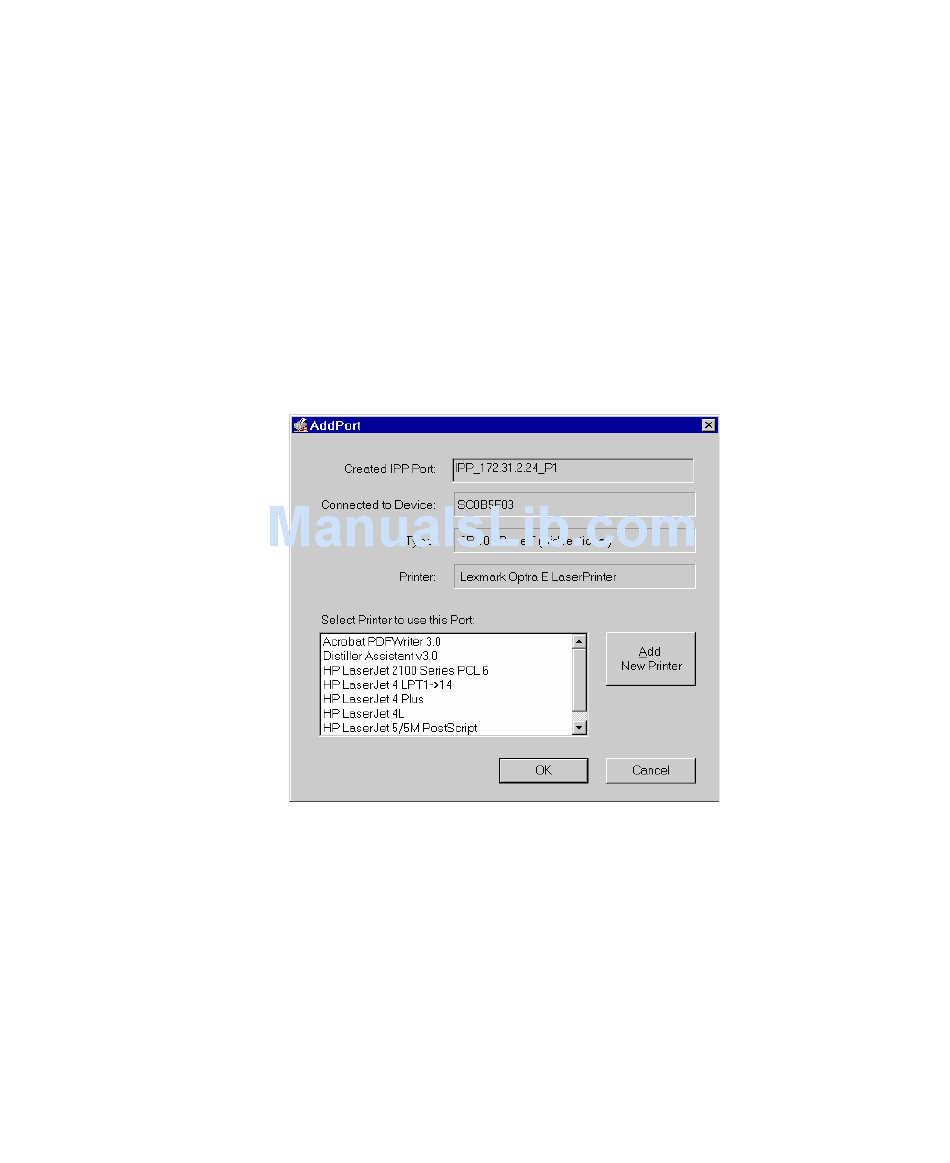

Figure 28 Select Printer for IPP Port
6 Either select an existing printer to use the new port, and click OK.
or
Click Add New Printer to create a new printer to use the IPP port. This will
start the Add Printer wizard. Follow the prompts to complete the process.
Ensure that the new printer uses the IPP port.
Installation is now complete.
To create additional IPP Ports, repeat the entire procedure.
■
The Proxy Server and other options are set individually for each IPP
■
Port.
Internet Printing Protocol (IPP) 53
