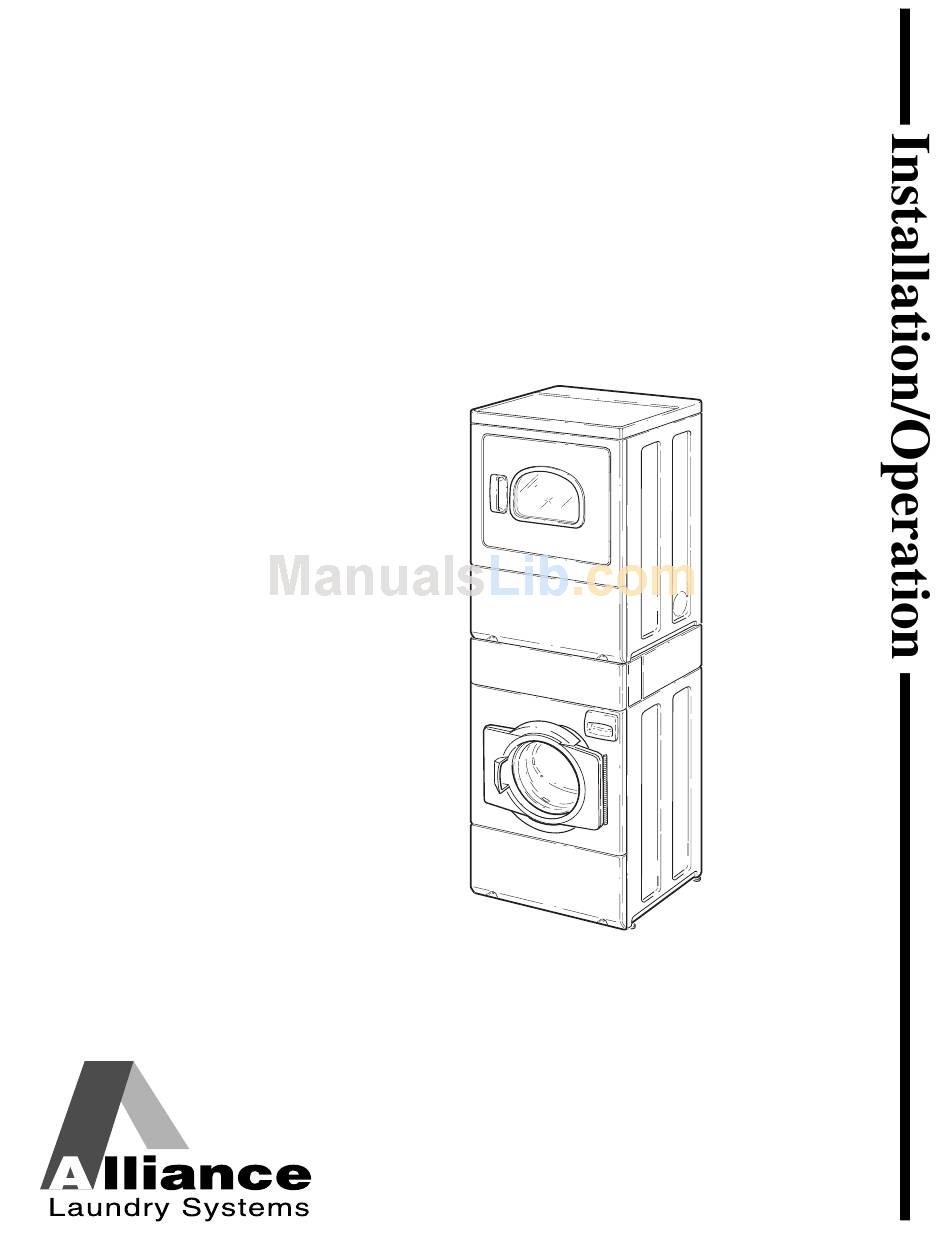

Stacked
Washer and Dryer
Electric Models
SWD444C
SWD444C
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. 802031R2
www.comlaundry.com
July 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWD444C and is the answer not in the manual?

Questions and answers

Summary of Contents for Alliance Laundry Systems SWD444C

  • Page 1 Stacked Washer and Dryer Electric Models SWD444C SWD444C Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 802031R2 www.comlaundry.com July 2005...
  • Page 3 • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. • Installation and service must be performed by a qualified installer or service agency. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802031 WARNING...
  • Page 4 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802031...
  • Page 5: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802031 Replacement Parts ...
  • Page 6 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Operation... 33 Operation Instructions for Washers ... 33 Step 1: Set Fabric Selector/Wash Temperature (°C) ... 33 Step 2: Add Laundry Supplies ... 33 Step 3: Load Laundry... 34 Step 4: Close Loading Door...
  • Page 7: Replacement Parts

    Replacement Parts If replacement parts are required, contact the source from which you purchased your unit or contact: 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Alliance Laundry Systems Shepard Street P.O. Box 990 Ripon, WI 54971-0990 U.S.A.
  • Page 8 Notes 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 9: Safety Information

    802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Safety Information Important Safety Instructions Save These Instructions To reduce the risk of fire, electric shock,...
  • Page 10 Due to the oil, the fabric may catch on fire by itself. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 20. To reduce the risk of fire, DO NOT put clothes...
  • Page 11 36. Do not operate washer and dryer if the units have been separated. 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT IMPORTANT: Solvent vapors from dry-cleaning machines create acids when drawn through the heater of the drying unit. These acids are corrosive to the dryer as well as to the laundry load being dried.
  • Page 12 Notes 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 13: Installation

    (14.3 in.) *With leveling legs turned into base. NOTE: Side and rear exhaust openings are 102 mm (4 inch) ducting. 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Installation 597 mm 203 mm (8.0 in.) *363 mm (14.3 in.)
  • Page 14: Before You Start

    Place the unit on a solid floor with an adequate air supply. For more detailed information, refer to section on Location Requirements. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Exhaust Use rigid metal duct and exhaust the dryer to the outside by the shortest route possible.
  • Page 15: Installing The Unit

    Figure 3 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 2: Connect Water Fill Hoses NOTE: Refer to section on Water Supply Requirements before connecting water fill hoses.
  • Page 16: Step 3: Connect Drain Hose To Drain Receptacle

    All hoses should be replaced every five years. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 3: Connect Drain Hose to Drain Receptacle Remove the drain hose from its shipping position on the rear of the washer by removing the shipping tape.
  • Page 17: Step 4: Connect Dryer Exhaust System

    (2 in.) Beaded Tie-Down Strap Figure 7 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 4: Connect Dryer Exhaust System For further assistance, refer to sections on Location Requirements and Dryer Exhaust Requirements. A clothes dryer produces combustible lint.
  • Page 18: Step 5: Position And Level The Unit

    © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Remove rubber feet from accessories bag and place on all four leveling legs.
  • Page 19: Step 6: (Washer Only) Remove The Shock Sleeves And Shipping Brace

    For leveling purposes, the unit may be tilted a maximum of 152.4 mm (6 inches) in any direction. 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Shock Sleeves Motor Mount Bolts and Lockwashers...
  • Page 20: Step 7: (Dryer Only) Connect Electrical Cord

    NOTE: Unit is shown with access cover removed for illustration purposes only. NEVER operate unit with access cover removed. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 8: Wipe Out Inside of Washer Drum and Dryer Drum...
  • Page 21: Step 9: Connect The Washer And Dryer To Electrical Power

    Figure 15 Figure 16 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 10: Check Installation Refer to Installer Checklist on the back cover and make sure that unit is installed correctly. Moving Unit to a New Location To prevent damage while moving the unit, the shipping materials MUST BE reinstalled.
  • Page 22: Heat Source Check

    230 Volt, 60 Hertz, 30 Amp, single-phase electrical circuit and must abide by local electrical codes. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT To install power cord (obtain locally): 1. Remove electrical access panel on rear of machine.
  • Page 23: Dryer

    802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Dryer 230 Volt, 60 Hertz, 2 Wire Plus Grounded (Earth) Wire Installation...
  • Page 24 Earth (Ground) Wire Earth (Ground) Screw “N” Terminal Figure 19 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Dryer is shown with the access cover removed for illustration purposes only. To reduce the risk of an electric shock, serious injury or death, NEVER operate the dryer with the access cover removed.
  • Page 25 4. Tighten all screws and reinstall access cover removed in step 1. 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT POWER SUPPLY INTERMEDIATE FUSE BOX (May be omitted if...
  • Page 26: Water Supply Requirements

    Order hoses as follows: No. 37380 Fill Hose (2.44 m) (8 feet) No. 37381 Fill Hose (3.05 m) (10 feet) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Water Supply Faucets W029 Cold Water Connection...
  • Page 27: Location Requirements

    Exhaust Duct Clearance to Combustible Materials NOTE: Shaded areas indicate adjacent structure. 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT IMPORTANT: Unless completely assembled, DO NOT slide the unit across the floor. DO NOT slide...
  • Page 28: Dryer Exhaust Requirements

    Never install flexible duct in concealed spaces, such as a wall or ceiling. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT DO NOT use sheet metal screws on exhaust pipe joints or other fastening means which extend into the duct that could catch lint and reduce the efficiency of the exhaust system.
  • Page 29: Make-Up Air Requirements

    Draw make-up air from a room containing a dry cleaner or a hair salon. 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Exhaust Direction The dryer can be exhausted to the outdoors through the back, left, right or bottom of the unit.
  • Page 30: Exhaust System

    Maximum length of 102 mm (4 in.) diameter flexible metal duct NOTE: Deduct 1.8 m (6 ft.) for each additional elbow. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT To prevent backdraft when unit is not in operation, outer end of exhaust pipe must have a weather hood with hinged dampers (obtain locally).
  • Page 31: Exhaust System Maintenance

    Once attached, the unit can be slid back into position. 521P3 FLEXIBLE METAL VENT KIT Figure 28 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Dryer Airflow Efficient dryer operation requires proper dryer airflow. Proper dryer airflow can be evaluated by measuring the static pressure.
  • Page 32: Multi-Dryer Installation Exhaust Requirements

    The dryer interior and the complete exhaust system should be cleaned periodically by a qualified service person to remove any lint build-up. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT SWD732N Weather Hood or Sweep Elbow...
  • Page 33 Figure 32 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT EXHAUST AIR FLOW MAXIMUM LENGTH OF DUCT 9.1 m (30 feet) HORIZONTAL EXHAUST INSTALLATION 51 mm (2 in.) Minimum or Clearance per Local...
  • Page 34: Lint Filter

    Lint Filter Figure 33 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Dryer Motor Overload Protector The motor overload protector stops the motor in the event of an overload. After cooling, the overload protector will reset itself.
  • Page 35: Operation

    NOTE: Changes can be made to Fabric Selector setting up until the first fill is complete. 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Operation Step 2: Add Laundry Supplies Open dispenser drawer. Measure and add low sudsing detergent (1), bleach (2) and fabric softener (3) to the dispenser drawer (refer to Figure 34).
  • Page 36: Step 3: Load Laundry

    Close loading door tightly. The washer will not operate with the loading door open. Figure 36 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 5: Determine Proper Controls for Washer The direction of the arrow indicates which controls are for the washer.
  • Page 37: Step 7: Select Prewash If Desired

    IN USE is lit at the beginning of a wash cycle and will remain lit until the wash cycle is complete. 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Rinse RINSE is lit at the beginning of all rinse cycles and will remain lit until the rinse cycle is complete.
  • Page 38: Operation Instructions For Dryers

    Step 1: Clean Lint Filter Clean lint filter before each use. Figure 46 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 2: Load Laundry Load dryer half full with laundry (8.2 kg maximum dry clothes load). Add fabric softener sheet if desired.
  • Page 39: Step 4: Determine Proper Controls For Dryer

    DRY659N NOTE: Always follow manufacturer’s care label instructions. 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 6: Insert Coin(s) or Card To Insert Money Insert coin(s) in coin slot. Check pricing as seen on digital display.
  • Page 40: Step 7: Start Dryer

    START keypad. Cycle is completed when time remaining reaches 00 minutes. Figure 52 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 8: Remove Laundry Remove laundry immediately after dryer stops. DRY193...
  • Page 41: Maintenance

    Outside of window can be cleaned with household window cleaner. 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Maintenance Replacing Hoses Hoses and other natural rubber parts deteriorate after extended use.
  • Page 42: Exhaust System

    Do not obstruct the flow of combustion and ventilation air. NOTE: Verify proper operation after servicing. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT For Energy Conservation Make sure the lint filter is always clean. Do not overload dryer.
  • Page 43: Before You Call For Service

    • • • • • • • 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Won’t Won’t Possible Reason Spin Drain Be sure power cord is plugged all the way into the electrical outlet. •...
  • Page 44: If Service Is Required

    Phone: +1 (920) 748-3121 Nameplate Figure 54 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT When calling or writing about your unit, PLEASE GIVE THE MODEL AND SERIAL NUMBERS. The model and serial numbers are located on the nameplate.
  • Page 45: Copyright, Alliance Laundry Systems Llc – Do Not Copy Or Transmit

    Service Agency Address NOTE: Record the above information and keep your sales slip. Model and serial numbers are located on the nameplate. 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Serial Number Phone Number Phone Number...
  • Page 46 Notes 802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 48: Installer Checklist

    Fast Track for Installing the Stacked Washer and Dryer (Refer to the manual for more detailed information) • Position Unit Near Installation Area. CHECK • Connect Water Fill Hoses. CHECK • Connect Drain Hose to Drain Receptacle. CHECK • Connect Dryer Exhaust System.
