Chapter 2
Preview Configuration

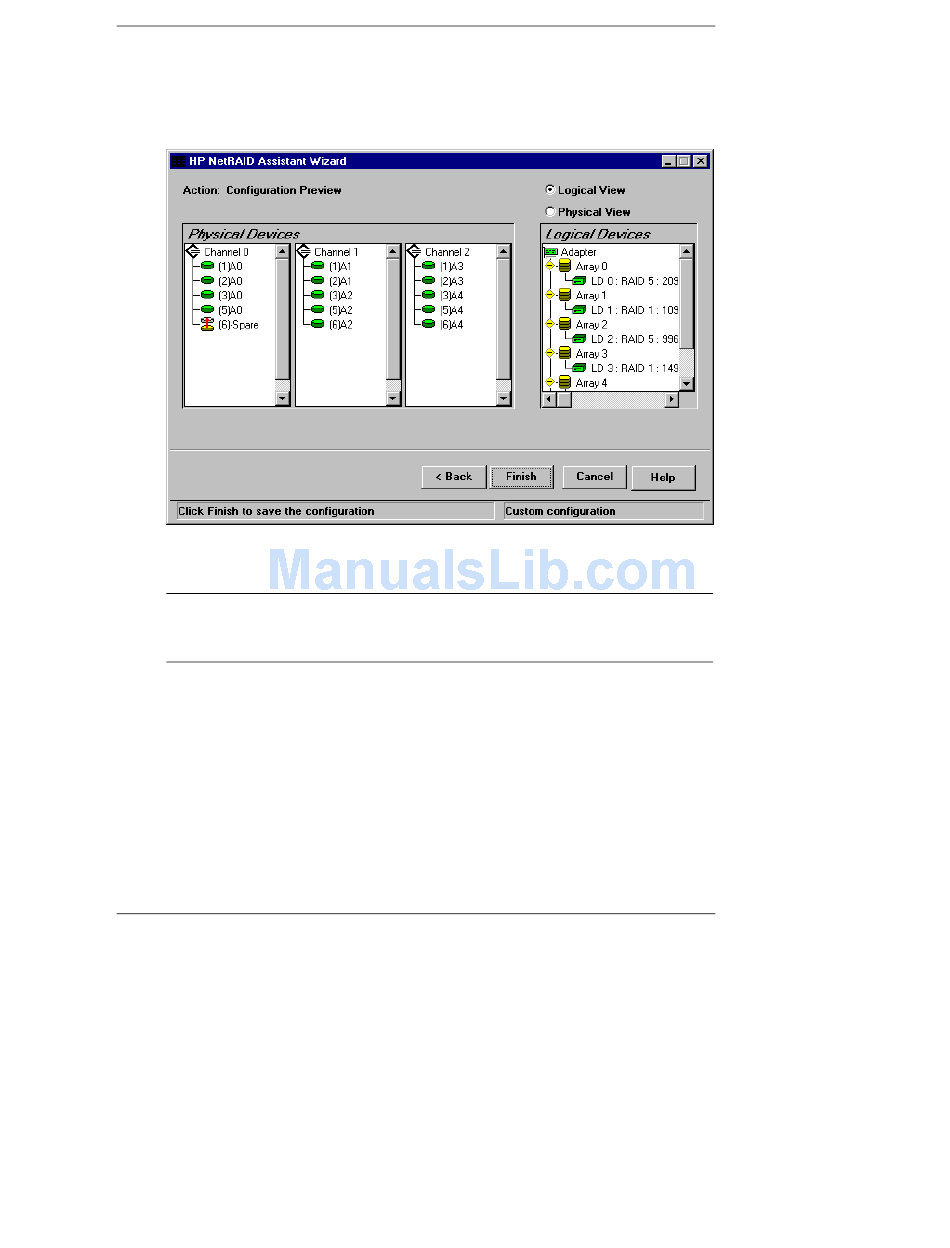

The HP NetRAID Assistant Wizard Configuration Preview window, shown in
Figure 2-7, displays the configuration proposed for the physical and logical drives.
Figure 2-7. HP NetRAID Assistant Wizard Configuration Preview Window
NOTE
The RAID level of a logical drive that spans arrays lacks the
terminal zero. Mentally add it to make RAID 1 into RAID 10,
RAID 3 into RAID 30, and RAID 5 into RAID 50.
To switch between showing logical drives and physical drives:
Click Logical View or Physical View.
To expand a view that has been collapsed (physical or logical drives, or hot
spares are hidden):
Click the + sign in the yellow diamond.
To display the properties of a logical drive:
Double-click the logical drive in the Logical Devices box.
HP NetRAID Assistant
