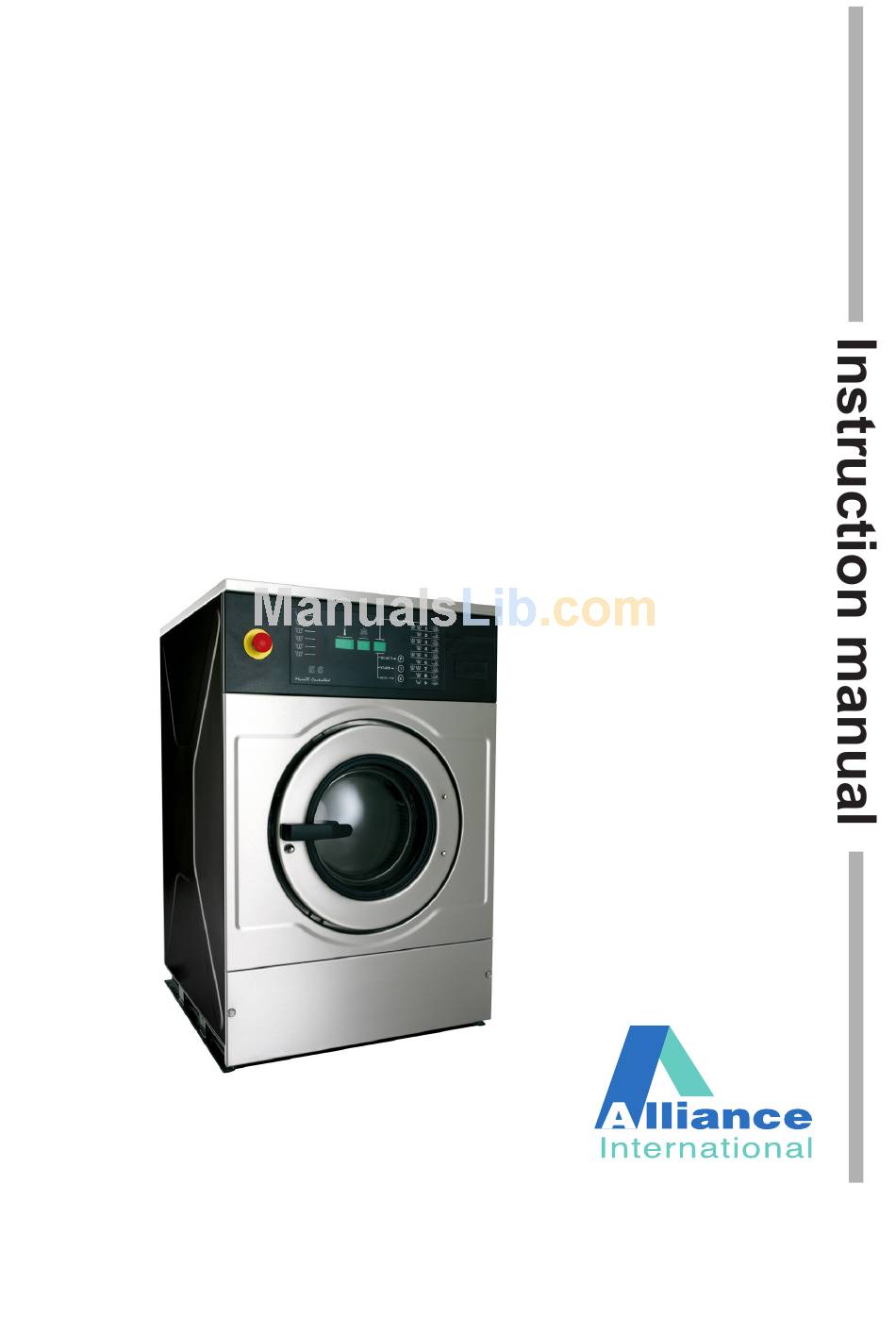

- Page 1 Washer Extractors WFF65, WFF75, WFF100 WFF135, WFF165 for corresponding “CWF” and “IWF” models, see page 5 for complete model list. Technical specifications Installation instructions Maintenance Part No. D0875R7 Code: 249/00353/10 January 2011...
-
Page 3: Table Of Contents
Technical data WFF75, IWF074, IWF018, CWF074, CWF018 ... 16 Dimensions WFF75, IWF074, IWF018, CWF074, CWF018 ... 17 Technical data WFF100, IWF100, IWF025, CWF100, CWF025 ... 18 Dimensions WFF100, IWF100, IWF025, CWF100, CWF025 ... 19 Technical data WFF135, IWF135, IWF030, CWF135, CWF030 ... 20 Dimensions WFF135, IWF135, IWF030, CWF135, CWF030 ... - Page 4 Steam connection ... 43 Technical remarks ... 44 Internal connections of the electrical heating ... 44 Maintenance instruction of the machine ... 45 End of day ... 45 General maintenance ... 45 Periodical maintenance ... 45 Annual maintenance ... 46 Contact Information ...
-
Page 5: Model Numbers
Model Numbers Build-up Build-up Model numbers xWF065yyMyyyyyy xWF075yyMyyyyyy xWF100yyMyyyyyy xWF135yyMyyyyyy xWF165yyMyyyyyy WFF65 WFF75 WFF100 WFF135 WFF165 xWF014yyMyyyyyy xWF018yyMyyyyyy xWF025yyMyyyyyy xWF030yyMyyyyyy xWF035yyMyyyyyy IWF014ANM IWF018MLM IWF014MNM IWF018MXM IWF014MCM IWF018MYM IWF014MDM IWF018SCM IWF014MEM IWF018SDM IWF014MLM IWF018SEM IWF014MXM IWF018SRM IWF014MYM IWF018SLM IWF014SCM IWF018SXM IWF014SDM... - Page 6 IWF074ZNM IWF065ANM IWF074ZCM IWF065MNM IWF074ZDM IWF065MCM IWF074ZEM IWF065MDM IWF074ZLM IWF065MEM IWF074ZXM IWF065MLM IWF074ZYM IWF065MXM IWF100ANM IWF065MYM IWF100MNM IWF065SCM IWF100MCM IWF065SDM IWF100MDM IWF065SEM IWF100MEM IWF065SRM IWF100MLM IWF065SLM IWF100MXM IWF065SXM IWF100MYM IWF065SYM IWF100SCM IWF065ZNM IWF100SDM IWF065ZCM IWF065ZDM IWF100SEM IWF100SRM IWF065ZEM IWF100SLM IWF065ZLM IWF100SXM IWF065ZXM IWF065ZYM...
- Page 7 CWF065MEM CWF014ANM CWF065MLM CWF014MNM CWF065MXM CWF014MCM CWF065MYM CWF014MDM CWF074ANM CWF014MEM CWF074MNM CWF014MLM CWF074MCM CWF014MXM CWF074MDM CWF014MYM CWF074MEM CWF018ANM CWF074MLM CWF018MNM CWF074MXM CWF018MCM CWF074MYM CWF018MDM CWF100ANM CWF018MEM CWF100MNM CWF018MLM CWF018MXM CWF100MCM CWF100MDM CWF018MYM CWF100MEM CWF025ANM CWF100MLM CWF025MNM CWF025MCM CWF100MXM CWF100MYM CWF025MDM CWF135ANM CWF025MEM CWF135MNM...
-
Page 8: Safety And Environmental Informations
Safety and Environmental Informations Safety CAUTION LABELS Please familiarize yourself with the following standard warning symbols. They are used throughout this manual and on the equipment to alert you to possible hazards. Anyone operating or servicing this equipment must understand these symbols and must follow all safety rules in this manual. -
Page 9: Environmental
Environmental Disposal of Unit This appliance is marked according to the European directive 2002/96/ EC on Waste Electrical and Electronic Equipment (WEEE). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. -
Page 10: Explanation Of Safety Messages
Explanation of Safety Messages Throughout this manual and on machine decals, you will find precautionary statements (“DANGER,” “WARNING,” and “CAUTION”) followed by specific instructions. These precautions are intended for the personal safety of the operator, user, servicer, and those maintaining the machine. DANGER Indicates an imminently hazardous situation that, if not avoided, will cause severe personal injury or death. -
Page 11: Important Safety Instructions
Important Safety Instructions WARNING To reduce the risk of fire, electric shock, serious injury or death to persons when using your washer, follow these basic precautions: 1. Read all instructions before using the washer. 2. Refer to the GROUNDING INSTRUCTIONS in the installation Manual for the proper grounding of the washer. -
Page 12: Save These Instructions
21. Loading door MUST BE CLOSED any time the washer is to fill, tumble, or spin. DO NOT bypass the loading door switch by permitting the washer to operate with the loading door open. 22. Always read and follow manufacturer’s instructions on packages of laundry and cleaning aids. Heed all warnings or precautions. -
Page 13: Operator Safety
Operator Safety WARNING NEVER insert hands or objects into basket until it has completely stopped. Doing so could result in serious injury. To ensure the safety of machine operators, the following maintenance checks must be performed daily: 1. Prior to operating the machine, verify that all warning signs are present and legible. Missing or illegible signs must be replaced immediately. -
Page 14: Technical Data And Dimensions
Technical data and dimensions Technical data WFF65, IWF065, IWF014, CWF065, CWF014 Capacity (dry weight) Ratio [kg/Lit] Cylinder Cabinet Front loading Speed G-factor Motor (3-phase) Drain valve Water supply Steam connection Heating Packing dimensions Weight METRIC 1:11 5,9 kg 1:10 6,5 kg 7,2 kg Diameter 530 mm... -
Page 15: Dimensions Wff65, Iwf065, Iwf014, Cwf065, Cwf014
Dimensions WFF65, IWF065, IWF014, CWF065, CWF014 Legend: metric mm [inches] 55 [2.17] 550 [21.65] 660 [25.98] 226 [8.9] 151 [5.94] 75 [2.95] 164.5 [6.48] 660 [25.98] 5 [0.2] 55 [2.17] 37 [1.46] 69 [2.72] 109 [4.29] 180 [7.09] 220 [8.66] 273 [10.75] 287 [11.3] 670 [26.37]... -
Page 16: Technical Data Wff75, Iwf074, Iwf018, Cwf074, Cwf018
Technical data WFF75, IWF074, IWF018, CWF074, CWF018 Capacity (dry weight) Ratio [kg/Lit] Cylinder Cabinet Front loading Speed G-factor Motor (3-phase) Drain valve Water supply Steam connection Heating Packing dimensions Weight METRIC 1:11 6,9 kg 1:10 7,3 kg 8,4 kg Diameter 530 mm Depth 345 mm... -
Page 17: Dimensions Wff75, Iwf074, Iwf018, Cwf074, Cwf018
Dimensions WFF75, IWF074, IWF018, CWF074, CWF018 Legend: metric mm [inches] 55 [2.17] 550 [21.65] 660 [25.98] 226 [8.9] 151 [5.94] 75 [2.95] 164.5 [6.48] 660 [25.98] 5 [0.2] 37 [1.46] 55 [2.17] 69 [2.72] 109 [4.29] 180 [7.09] 220 [8.66] 233 [9.17] 327 [12.87] 670 [26.37]... -
Page 18: Technical Data Wff100, Iwf100, Iwf025, Cwf100, Cwf025
Technical data WFF100, IWF100, IWF025, CWF100, CWF025 Capacity (dry weight) Ratio [kg/Lit] Cylinder Cabinet Front loading Speed G-factor Motor (3-phase) Drain valve Water supply Steam connection Heating Packing dimensions Weight METRIC 1:11 8,6 kg 1:10 9,5 kg 10,5 kg Diameter... -
Page 19: Dimensions Wff100, Iwf100, Iwf025, Cwf100, Cwf025
Dimensions WFF100, IWF100, IWF025, CWF100, CWF025 Legend: metric mm [inches] 55 [2.17] 550 [21.65] 660 [25.98] 226 [8.9] 151 [5.94] 75 [2.95] 164.5 [6.48] 660 [25.98] 5 [0.2] 55 [2.17] 37 [1.46] 69 [2.72] 109 [4.29] 180 [7.09] 220 [8.66] 233 [9.17]... -
Page 20: Technical Data Wff135, Iwf135, Iwf030, Cwf135, Cwf030
Technical data WFF135, IWF135, IWF030, CWF135, CWF030 Capacity (dry weight) Ratio [kg/Lit] Cylinder Cabinet Front loading Speed G-factor Motor (3-phase) Drain valve Water supply Steam connection Heating Packing dimensions Weight METRIC 1:11 12 kg 1:10 13,2 kg 14,5 kg Diameter 650 mm Depth 400 mm... -
Page 21: Dimensions Wff135, Iwf135, Iwf030, Cwf135, Cwf030
Dimensions WFF135, IWF135, IWF030, CWF135, CWF030 Legend: metric mm [inches] 70 [2.76] 640 [25.2] 780 [30.71] 332 [13.07] 267 [10.51] 202 [7.95] 106.5 [4.19] 315 [12.4] 84 [3.31] 28 [1.1] 70 [2.76] 82 [3.23] 109 [4.29] 209 [8.23] 220 [8.66] 260 [10.24] 410 [16.14] 760 [29.92]... -
Page 22: Technical Data Wff165, Iwf165, Cwf165
Technical data WFF165, IWF165, CWF165 Capacity (dry weight) Ratio [kg/Lit] Cylinder Cabinet Front loading Speed G-factor Motor (3-phase) Drain valve Water supply Steam connection Heating Packing dimensions Weight METRIC 1:11 15 kg 1:10 16,5 kg 18,3 kg Diameter 650 mm Depth 500 mm Volume... -
Page 23: Dimensions Wff165, Iwf165, Cwf165
Dimensions WFF165, IWF165, CWF165 Legend: metric mm [inches] 70 [2.76] 640 [25.2] 780 [30.71] 332 [13.07] 267 [10.51] 202 [7.95] 106.5 [4.19] 315 [12.4] 84 [3.31] 28 [1.1] 70 [2.76] 82 [3.23] 109 [4.29] 209 [8.23] 220 [8.66] 260 [10.24] 510 [20.08] 860.1 [33.86] 916.1 [36.07]... -
Page 24: Installation And Connection Instructions
The machines must be fixed on a metal base which is securely anchored on a concrete base. See Label 2. WFF65/75/100 = WFF65, IWF065, IWF014, CWF065, CWF014, WFF75, IWF074, IWF018, CWF074, CWF018, WFF100, IWF100, IWF025, CWF100, CWF025 WFF135/165 = WFF135, IWF135, IWF030, CWF135, CWF030, WFF165, IWF165, CWF165 A: Bolt M12 (1/2”) (WFF65/75/100), M16 (5/8”) (WFF135/165) -
Page 25: Mounting Bolt Hole Locations For Machines, Wff65, Iwf065, Iwf014, Cwf065, Cwf014
Mounting Bolt Hole Locations for machines, WFF65, IWF065, IWF014, CWF065, CWF014 Legend: metric mm [inches] 55 [2.17] 550 [21.65] 660 [25.98] 55 [2.17]... -
Page 26: Mounting Bolt Hole Locations For Machines, Wff75, Iwf074, Iwf018, Cwf074, Cwf018
Mounting Bolt Hole Locations for machines, WFF75, IWF074, IWF018, CWF074, CWF018 Legend: metric mm [inches] 55 [2.17] 550 [21.65] 660 [25.98] 55 [2.17]... -
Page 27: Mounting Bolt Hole Locations For Machines, Wff100, Iwf100, Iwf025, Cwf100, Cwf025
Mounting Bolt Hole Locations for machines, WFF100, IWF100, IWF025, CWF100, CWF025 Legend: metric mm [inches] 55 [2.17] 550 [21.65] 660 [25.98] 55 [2.17]... -
Page 28: Mounting Bolt Hole Locations For Machines, Wff135, Iwf135, Iwf030, Cwf135, Cwf030
Mounting Bolt Hole Locations for machines, WFF135, IWF135, IWF030, CWF135, CWF030 Legend: metric mm [inches] 70 [2.76] 640 [25.2] 70 [2.76] 780 [30.71]... - Page 29 Mounting Bolt Hole Locations for machines, WFF165, IWF165, CWF165 Legend: metric mm [inches] 70 [2.76] 640 [25.2] 70 [2.76] 780 [30.71]...
-
Page 30: Water Connection
For the WFF65 = WFF65, IWF065, IWF014, CWF065, CWF014 For the WFF75 = WFF75, IWF074, IWF018, CWF074, CWF018 For the WFF100 = WFF100, IWF100, IWF025, CWF100, CWF025 For the WFF135 = WFF135, IWF135, IWF030, CWF135, CWF030 For the WFF165 = WFF165, IWF165, CWF165 of machines. -
Page 31: Electrical Installation
Electrical Installation Important Electrical ratings are subject to changes. Refer to serial plate decal for electrical ratings information specific to your machine. WARNING Hazardous Voltage. Can cause shock, burn or cause death. Allow machine power to remain off for two minutes prior to working in and around AC inverter drive. - Page 32 This appliance must be connected to a grounded metal, permanent wiring system; or an equipment- grounding conductor must be run with the circuit conductors and connected to the equipment- grounding terminal or lead on the appliance. IMPORTANT: Alliance Laundry Systems Warranty does not cover components that fail as a result of improper input voltage.
-
Page 33: Main Power Connection
Main power connection Connection label: Machine power connections are made at the back of the machine. Three or four conductor power cable is the recommended method (See chapter electrical specs for minimum cable requirements, if local electrical codes exceed these requirements, follow local codes). The number of conductors in this cable and the proper connection points for the cable wires shall be determined by the machine and power requirements. - Page 34 200-240 Volts, 3-Phase, 3-wire + PE, 50 or 60 Hertz Configuration (Named: Q-Voltage or 3-phase X-Voltage): With supply power of: 200-240 Volts, 3-phase, 3-wire, after connecting the green/yellow PE ground wire, connect one power wire to each of the terminals at the bottom of the power contactor switch marked: “L1,L2,L3”. 200-240 volts, 1-Phase, 2-wire + PE, 50 Hertz (called 1-phase, 50 Hz X-voltage): With supply power of: 200-240 Volts, 1-phase, 2-wire, 50Hz, after connecting the green/yellow PE ground wire, connect the power wire to the “L1”...
-
Page 35: Electrical Specifications Wff65, Iwf065, Iwf014, Cwf065, Cwf014
The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications WFF65, IWF065, IWF014, CWF065, CWF014 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415... -
Page 36: Electrical Specifications Wff75, Iwf074, Iwf018, Cwf074, Cwf018
The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications WFF75, IWF074, IWF018, CWF074, CWF018 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415... -
Page 37: Electrical Specifications Wff100, Iwf100, Iwf025, Cwf100, Cwf025
The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications WFF100, IWF100, IWF025, CWF100, CWF025 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60... -
Page 38: Electrical Specifications Wff135, Iwf135, Iwf030, Cwf135, Cwf030
The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications WFF135, IWF135, IWF030, CWF135, CWF030 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415... -
Page 39: Electrical Specifications Wff165, Iwf165, Cwf165
The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications WFF165, IWF165, CWF165 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240... -
Page 40: Liquid Soap Connection (Option)
Liquid soap connection (option) Label 5 Connection of the liquid soap hoses The liquid soap connection consists of 8 connections for liquid soap (See Label 5). The central opening is used for ventilation. Dangerous Chemicals. May damage eyes and skin. Wear eye and hand protection when handling chemicals;... - Page 41 The 220V can be transformed to other values to drive other type soap pumps. Example: pumps 24V ~. (See Label 7) Label 7 Also, pumps with different operating tension can be combined. Example: 5 pumps 220V ~ and 1 pump 24V ~. (See Label 8) Label 8 With an external tension 24V DC (See Label 9) Label 9...
-
Page 42: Connection Of A Central Operating Panel For Coin Machines (Option)
Connection of a central operating panel for coin machines (option) Label 10 Label 13 To reduce the risk of electric shock, disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply. -
Page 43: Steam Connection
For the WFF65 = WFF65, IWF065, IWF014, CWF065, CWF014 For the WFF75 = WFF75, IWF074, IWF018, CWF074, CWF018 For the WFF100 = WFF100, IWF100, IWF025, CWF100, CWF025 For the WFF135 = WFF135, IWF135, IWF030, CWF135, CWF030 For the WFF165 = WFF165, IWF165, CWF165... -
Page 44: Technical Remarks
Technical remarks Internal connections of the electrical heating 1 AC 3 AC Heating LC1D0901 Table 8 Heating 3x230V 4,2kw 3x1,4kw See label 14 3x2kw See label 14 3x3kw See label 14 12kw 3x4kw -------- 12kw 3x2kw See label 14 3x2kw See label 14 15kw 3x2kw... -
Page 45: Maintenance Instruction Of The Machine
Maintenance instruction of the machine To reduce the risk of electric shock, disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply. Before starting wiring or inspection, power must be switched OFF, check to make sure that the operation panel indicator is off. -
Page 46: Annual Maintenance
Annual maintenance Model Belt WFF65 PJ8 1355 WFF75 PJ8 1355 WFF100 PJ8 1355 WFF135 PK7 1520 WFF165 PK7 1520 Belt tension: Verify that the belts are running in the middle of the basket pulley. Verify the belt tension according to the table below. Belt tension measurements should be taken as close as possible to the center of the belt span (see figure). -
Page 47: Contact Information
Contact Information Nameplate Nameplate Location The nameplate is located at the rear of the machine. Always provide the machine’s serial number and model number when ordering parts or when seeking technical assistance. See labels 16 and 17. Label 16 Label 17... - Page 48 Position of the Serialplate Replacement Parts If literature or replacement parts are required, contact the source from which the machine was purchased or contact the phone numbers or websites shown on the nameplate.
-
Page 49: Repair And After-Sales Service
Program: ... Date of installation: ... Installed by: ... Serial number: ... Operation voltage and frequency: ... Alliance Laundry Systems Shephard Street, PO BOX 990 Ripon, WI 54971-0990 United States Tel: 001 920 748 3121 - Fax: 001 920 748 1645 www.comlaundry.com...
