Summary of Contents for Alliance Laundry Systems W001C
- Page 1 Automatic Washers Home Laundry W001C W001C Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 38900R8 April 2007 www.comlaundry.com...
-
Page 3: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 38900 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Replacement Parts ... Installation... - Page 4 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38900...
-
Page 5: Replacement Parts
Replacement Parts If replacement parts are required, contact the source from which you purchased your washer, or contact: © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38900 Alliance Laundry Systems Shepard Street P.O. Box 990 Ripon, WI 54971-0990... - Page 6 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38900...
-

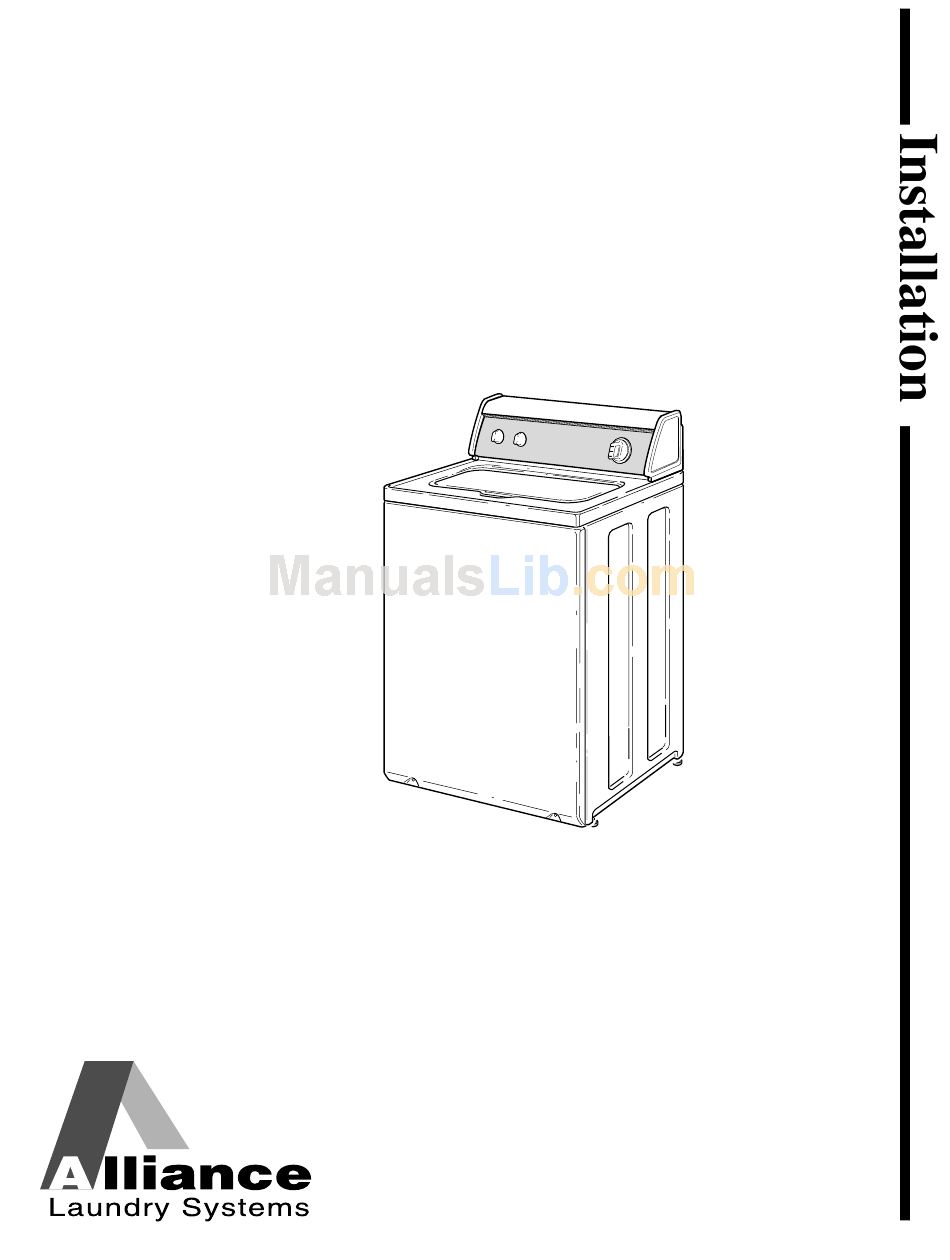

Page 7: Installation
71.1 cm (28 in.) 56.2 cm (22.13 in.) 1 cm 65 cm 66 cm (0.4 in.) (25.6 in.) (26 in.) TLW2075N *With leveling legs turned into base. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38900... -
Page 8: Before You Start
Wrench Screwdriver Pliers Level Figure 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Electrical Refer to serial plate for specific electrical requirements. For more detailed information, refer to section on Electrical Requirements. Water Washer needs two standard 19.1 mm (3/4 inch) water supply faucets with a pressure between 138 and 827 kPa (20 to 120 pounds per square inch). -
Page 9: Installing The Washer
NOTE: Refer to your Operating Instructions for reinstalling shipping brace and shipping plug. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38900 Step 2: Wipe Out Inside of Washtub Prior to first wash, use an all purpose cleaner, or a detergent and water solution, and a damp cloth to remove shipping dust from inside of washtub. -
Page 10: Step 3: Connect Fill Hoses
Turn water on and check for leaks. If leaks are found, retighten the hose couplings. Continue tightening and rechecking until no leaks are found. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT COLD Filter Screen (Screen must be facing... -
Page 11: Step 4: Connect Drain Hose To Drain Receptacle
3.2 cm (1-1/4 inch) outside diameter drain hose. Retainer Clamp Standpipe Adapter Figure 5 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38900 Standpipe Installation: Place the hose into the standpipe. Remove the beaded tie-down strap from accessories... - Page 12 [4 feet] are not recommended) Tie-Down Strap Standpipe Adapter Figure 7 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Low Standpipe Installation: No. 562P3 Siphon Break Kit is required for this type of installation. This kit is available (as optional equipment at extra cost) through an authorized dealer or parts distributor.
- Page 13 Drain Hose Tie-Down Strap or Wire Tie Cabinet Top Hinge Figure 9 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38900 In the Wall Installation: For installations of this type, the drain hose MUST be secured to one of the inlet hoses using the beaded tie- down strap from accessories bag.
-
Page 14: Step 5: Position And Level The Washer
(supplied in accessories bag) to secure hose. Tie-Down Strap (Tape if necessary) Figure 11 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 5: Position and Level the Washer Position washer so it has sufficient clearance for installation and servicing. -
Page 15: Step 6: Connect The Washer To Electrical Power
NOTE: The agitator should not be removed except for service. The washtub is designed to be self- cleaning. Figure 14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38900 Step 8: Check Lid Switch Washer should stop agitating and spinning when lid is opened. -
Page 16: Electrical Requirements
NOTE: Refer to the washer nameplate for proper voltage and Hertz the washer is designed to operate on. Refer to Figure 18. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 120 Volt, 60 Hertz, With 3 Prong Grounding Plug... -
Page 17: 120 Volt/50 Hertz
10 ampere fuse, equivalent fusetron or circuit breaker. DO NOT OPERATE OTHER APPLIANCES ON THE SAME CIRCUIT WHEN THE WASHER IS OPERATING. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38900 Nameplate Figure 18 240 Volt/60 Hertz... - Page 18 Standard IEC 60335-1, clauses 24.3 and 22.2. Gap is defined as the minimum contact separation of each pole in the switch between the “ON” and “OFF” positions. Figure 19 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38900...
-
Page 19: Water Supply Requirements
Water Supply Faucets Cold Water Connection Hot Water Connection Fill Hoses Figure 20 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 38900 Water Temperature Cold: Recommended cold water temperature is 10° to 24° Celsius (50° to 75° Fahrenheit). -
Page 20: Risers
Refer to Figure 21. Risers (Air cushions) Water Supply Faucets Figure 21 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT W005I W005I 38900... -
Page 22: Installer Checklist
Fast Track for Installing the Washer (Refer to the manual for more detailed information) ➊ • Remove the Shipping Brace and Shipping Plug. CHECK ➋ • Wipe Out Inside of Washtub. CHECK ➌ • Connect Fill Hoses. COLD CHECK ➍ •...
