Summary of Contents for Alliance Laundry Systems W001C

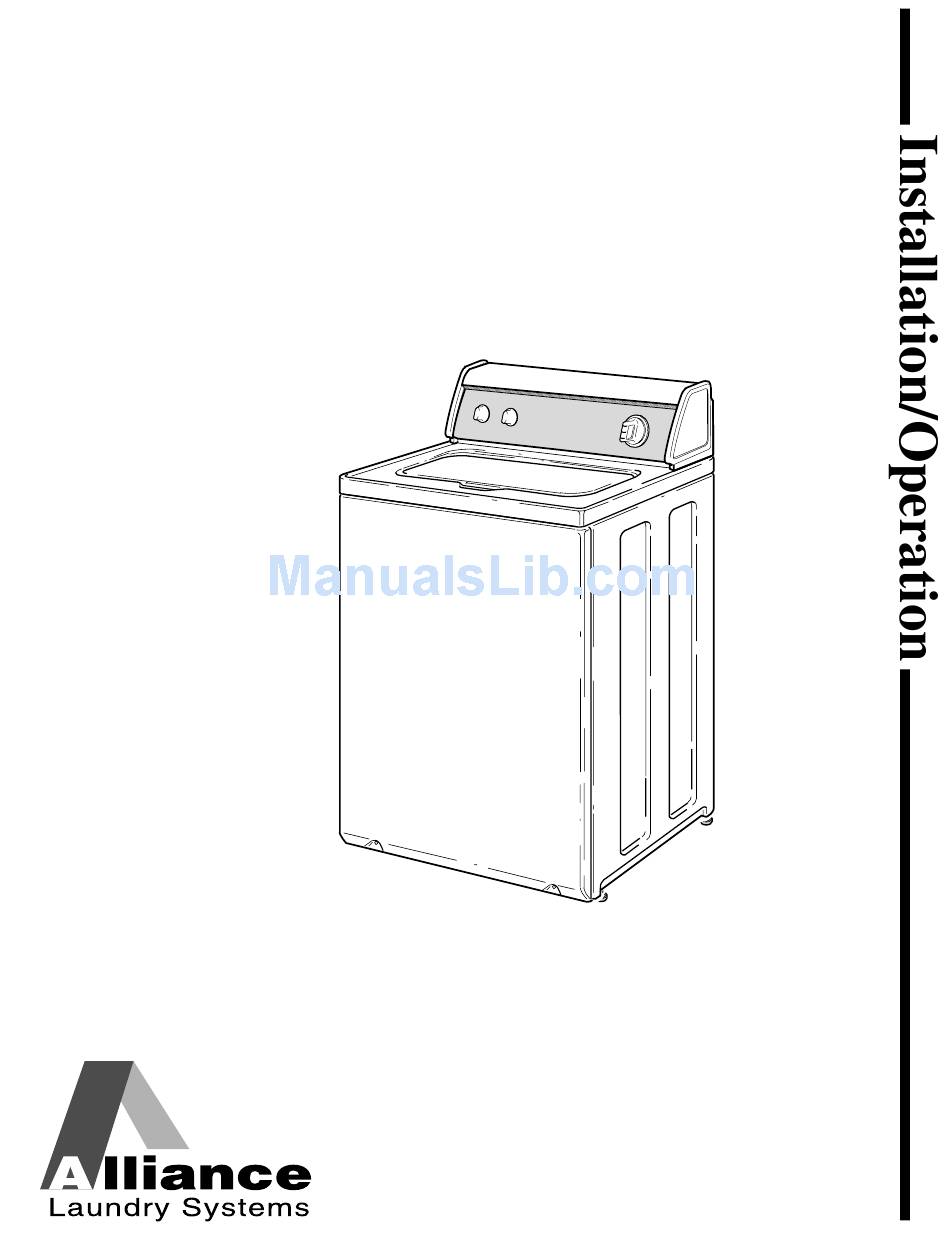

- Page 1 Automatic Topload Washers W001C W001C Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 39971R3 www.comlaundry.com March 2007...
- Page 3 For your safety and to reduce the risk of fire or an explosion, do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. IMPORTANT: Read the complete INSTALLATION and OPERATION INSTRUCTIONS before using the washer. 39971 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 4 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39971...
-
Page 5: Table Of Contents
Step 4: Connect Drain Hose to Drain Receptacle ... 12 Step 5: Position and Level the Washer ... 14 Step 6: Connect the Washer to Electrical Power ... 14 Step 7: Add Water to the Washer ... 15 Step 8: Check Lid Switch ... 15 Electrical Requirements... - Page 6 Motor Overload Protector... 25 Before You Call for Service ... 26 If Service Is Required ... 27 Information for Handy Reference... 28 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39971...
-
Page 7: Replacement Parts
Replacement Parts If replacement parts are required, contact the source from which you purchased your washer, or contact: © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39971 Alliance Laundry Systems Shepard Street P.O. Box 990 Ripon, WI 54971-0990 U.S.A. - Page 8 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39971...
-
Page 9: Safety Information
GAS IS FLAMMABLE. DO NOT SMOKE OR USE AN OPEN FLAME DURING THIS TIME. 6. Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. This is a safety rule for all appliances. - Page 10 8. Do not reach into the washer if the washtub or agitator is moving. 9. Do not install or store the washer where it will be exposed to water and/or weather. 10. Do not tamper with the controls. 11. Do not repair or replace any part of the washer, or...
-
Page 11: Installation
Installation Dimensions and Specifications 71.1 cm (28 in.) 56.2 cm (22.13 in.) 1 cm 66 cm (26 in.) (.4 in.) 65 cm (25.6 in.) TLW2075N * With leveling legs turned into base. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39971... -
Page 12: Before You Start
NOTE: Install dryer before washer. This allows for attaching exhaust duct. -
Page 13: Step 2: Wipe Out Inside Of Washtub
(This is especially important when installing your washer in a newly constructed or renovated building.) Insert rubber washers and filter screens (from accessories bag) in water fill hose couplings (two hoses supplied with washer). -
Page 14: Step 4: Connect Drain Hose To Drain Receptacle
Installation Step 4: Connect Drain Hose to Drain Receptacle IMPORTANT: Drain receptacle must be capable of handling a minimum of 3.2 cm (1-1/4 inch) outside diameter drain hose. UNHOOK HOSE W509I Shipping Retainer Clamp Standpipe Adapter Figure 5 30.489 cm (12 in.) 91.44 cm (36 in.) - Page 15 SINK INSTALLATION Drain Hose Tie-Down Strap or Wire Tie Cabinet Top Hinge Figure 9 IN-THE-WALL INSTALLATION Tie-Down Strap (Tape if necessary) Standpipe Adapter NOTE: End of drain hose must not be below height of cabinet top or siphon break kit. Figure 10 ©...
-
Page 16: Step 5: Position And Level The Washer
Position washer so it has sufficient clearance for installation and servicing. Place rubber feet on all four leveling legs. Place washer in position on a clean, dry, and firm floor. Do not install the washer on carpeting. Loosen 7/8 inch locknuts and adjust the two front leveling legs. -
Page 17: Step 7: Add Water To The Washer
Installation Step 7: Add Water to the Washer Step 8: Check Lid Switch Prior to first use, add 0.95 liter (one quart) of water to tub. W376IE0C Figure 16 W391I W391I Figure 15 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 18: Electrical Requirements
AC (alternating current) 15 Amps. Refer to Figure 18 for determining correct polarity of the wall receptacle. Do not modify the plug provided with the washer – if it will not fit the outlet, have a proper outlet installed by a qualified electrician. -
Page 19: Earthing (Grounding) Instructions
240 Volt/60 Hertz The washer is designed to be operated on a separate polarized three-wire, earthed 240 Volt, 60 Hertz, single-phase electrical circuit protected by a 10 ampere fuse, equivalent fusetron or circuit breaker. -
Page 20: Water Temperature
NOTE: Longer fill hoses are available (as optional equipment at extra cost) if the hoses (supplied with the washer) are not long enough for the installation. Order hoses as follows: No. 20617 Fill Hose 2.44 m (8 foot) No. 20618 Fill Hose 3.05 m (10 foot) -
Page 21: Operation
Loading the Washer Load Articles Load items by the amount of space they take up, not by their weight. Mix large and small items in a load to get the best washing results. Drop items loosely into the washtub. Overloading can cause poor cleaning, excessive wrinkling, and tears. -
Page 22: Water Level
RIGHT Figure 22 WRONG Figure 23 The water level in your washer should fit the size of your wash load. Small loads will use lower water levels. IMPORTANT: If in doubt, always use a higher water level. Most average loads will require a water setting of Large. -
Page 23: To Wash Clothes
W281I Figure 26 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39971 4. Close the lid. The washer will not agitate or spin with the lid open. Figure 27 5. Set WASH/RINSE temperatures. NOTE: The washer will provide a cold rinse in all TEMPERATURE settings. -
Page 24: Timer
To set or reset the timer, push timer knob in to stop the washer. Hold timer knob in firmly while turning it clockwise to the setting desired. Pull timer knob out to start the washer. -
Page 25: Optional Features
Add powdered bleach to the wash water. Carefully pour recommended amount of bleach into the dispenser during the first fill of the washer. Fabric Softener Dispenser To Use Dispenser After the clothes are loaded into the washtub and before the start of the WASH cycle, pour the proper amount of liquid fabric softener into dispenser. -
Page 26: Washing Temperature Guide
Operation Washing Temperature Guide Water Temperature • Sturdy whites and colorfast items. • Work clothes. • Soiled items. 60°C (140°F) • Diapers. • Rinsing of some items (OPTIONAL). • Light and moderately soiled items. WARM • Non-colorfast or dark colors. 37°C (99°F) •... -
Page 27: Maintenance
The washtub will need no particular care though it may need rinsing or wiping after an unusual load has been washed. Leave the lid open to allow the inside of the washer to dry out after use. This helps prevent musty odors from developing. -
Page 28: Before You Call For Service
Pull timer knob out to start the washer. Was the last spin completed? Clean the screens in the water mixing valve and the filter screens in the fill hoses. Water is siphoned from the washer during the cycle. Refer to Installation section. Are controls properly set? •... -
Page 29: If Service Is Required
Figure 30 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 39971 When calling or writing about your washer, PLEASE GIVE THE MODEL AND SERIAL NUMBERS that are located on the nameplate. Refer to Figure 30 for location. -
Page 30: Information For Handy Reference
Maintenance Information for Handy Reference Alliance Laundry Systems Shepard Street P.O. Box 990 Ripon, WI 54971-0990 U.S.A. Date Purchased Model Number Dealer’s Name Dealer’s Address Service Agency Service Agency Address NOTE: Record the above information and keep your sales slip. Model and serial numbers are located on the nameplate.
