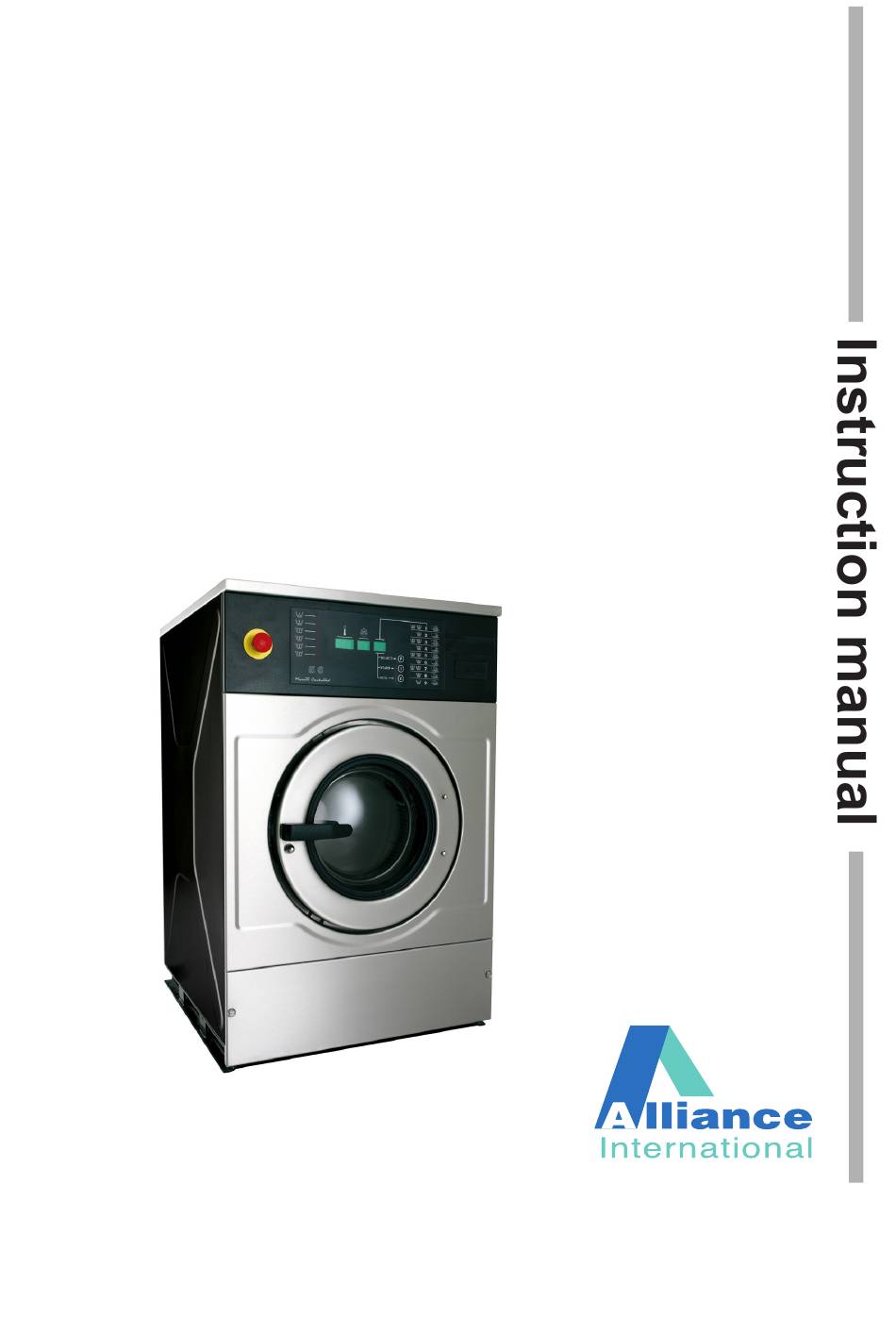

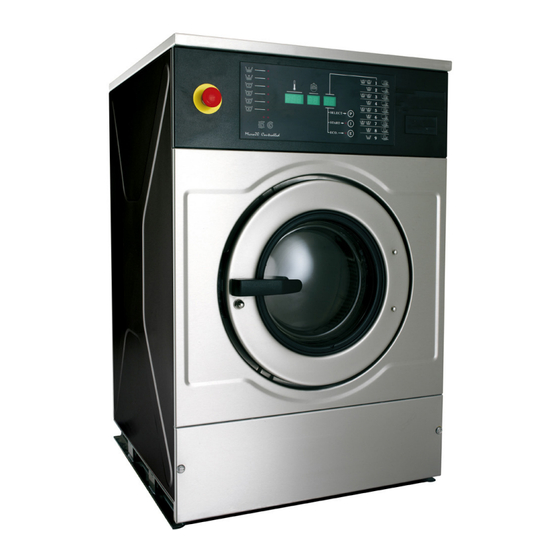

Alliance Laundry Systems WFF150 Instruction Manual

Alliance Laundry Systems WFF150 Instruction Manual

Washer extractors

Advertisement

Quick Links

Washer Extractors
WFF150, WFF185, WFF235, WFF305
for corresponding "CWF" and "IWF"
models, see page 6 for complete model
list.
Technical specifications
Installation instructions
Maintenance
Part No. D0909R9
Code: 249/00384/10
October 2011

Advertisement

loading
Need help?

Need help?

Do you have a question about the WFF150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alliance Laundry Systems WFF150

  • Page 1 Washer Extractors WFF150, WFF185, WFF235, WFF305 for corresponding “CWF” and “IWF” models, see page 6 for complete model list. Technical specifications Installation instructions Maintenance Part No. D0909R9 Code: 249/00384/10 October 2011...
  • Page 3 Surface ...................... 22 Anchoring on a metal base ................ 22 Directly on the ground ................22 Mounting Bolt Hole Locations for machines, WFF150, IWF150, IWF033, CWF033 ....................23 Mounting Bolt Hole Locations for machines, WFF185, IWF185, IWF040, CWF185, CWF040 ..................24 Mounting Bolt Hole Locations for machines, WFF235, IWF235, IWF055, CWF235, CWF055 ..................
  • Page 4 Steam connection ..................40 Technical remarks ..................41 Internal connections of the electrical heating ..........41 Maintenance instruction of the machine ........... 42 End of day ....................42 General maintenance ................42 Periodical maintenance ................42 Annual maintenance .................. 43 Contact Information ..................
  • Page 6 Model Numbers Build-up xWF150yyMyyyyyy xWF185yyMyyyyyy WFF150 WFF185 xWF033yyMyyyyyy xWF040yyMyyyyyy xWF235yyMyyyyyy xWF305yyMyyyyyy WFF235 WFF305 xWF055yyMyyyyyy xWF075yyMyyyyyy Model numbers IWF040SXM IWF075SEM IWF033ANM IWF075SRM IWF040SYM IWF033MNM IWF075SLM IWF055ANM IWF033MCM IWF075SXM IWF055MNM IWF033MDM IWF055MCM IWF075SYM IWF033MEM IWF150ANM IWF033MLM IWF055MDM IWF150MNM IWF055MEM IWF033MXM IWF150MCM IWF055MLM...
  • Page 7 IWF185ANM IWF305ANM CWF055MLM IWF185MNM IWF305MNM CWF055MXM IWF185MCM IWF305MCM CWF055MYM IWF185MDM IWF305MDM CWF075ANM IWF185MEM IWF305MEM CWF075MNM IWF185MLM IWF305MLM CWF075MCM IWF185MXM IWF305MXM CWF075MDM IWF185MYM IWF305MYM CWF075MEM IWF185SCM IWF305SCM CWF075MLM IWF185SDM IWF305SDM CWF075MXM IWF185SEM IWF305SEM CWF075MYM IWF185SRM IWF305SRM CWF150ANM IWF185SLM IWF305SLM CWF150MNM IWF185SXM IWF305SXM CWF150MCM IWF185SYM...
  • Page 8 Safety and Environmental Informations Safety CAUTION LABELS Please familiarize yourself with the following standard warning symbols. They are used throughout this manual and on the equipment to alert you to possible hazards. Anyone operating or servicing this equipment must understand these symbols and must follow all safety rules in this manual.
  • Page 9 Environmental Disposal of Unit This appliance is marked according to the European directive 2002/96/ EC on Waste Electrical and Electronic Equipment (WEEE). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
  • Page 10 Explanation of Safety Messages Throughout this manual and on machine decals, you will find precautionary statements (“DANGER,” “WARNING,” and “CAUTION”) followed by specific instructions. These precautions are intended for the personal safety of the operator, user, servicer, and those maintaining the machine. DANGER Indicates an imminently hazardous situation that, if not avoided, will cause severe personal injury or death.
  • Page 11 Important Safety Instructions WARNING To reduce the risk of fire, electric shock, serious injury or death to persons when using your washer, follow these basic precautions: 1. Read all instructions before using the washer. 2. Refer to the GROUNDING INSTRUCTIONS in the installation Manual for the proper grounding of the washer.
  • Page 12 21. Loading door MUST BE CLOSED any time the washer is to fill, tumble, or spin. DO NOT bypass the loading door switch by permitting the washer to operate with the loading door open. 22. Always read and follow manufacturer’s instructions on packages of laundry and cleaning aids. Heed all warnings or precautions.
  • Page 13 Operator Safety WARNING NEVER insert hands or objects into basket until it has completely stopped. Doing so could result in serious injury. To ensure the safety of machine operators, the following maintenance checks must be performed daily: 1. Prior to operating the machine, verify that all warning signs are present and legible. Missing or illegible signs must be replaced immediately.
  • Page 14 Technical data and dimensions Technical data WFF150, IWF150, IWF033, CWF033 METRIC Capacity (dry weight) Ratio [kg/Lit] 1:11 13.1 kg 28.88 lb. 1:10 14.5 kg 31.96 lb. 16.1 kg 35.49 lb. Cylinder Diameter 680 mm 26.77 inch Depth 400 mm 17.74 inch...
  • Page 15 Dimensions WFF150, IWF150, IWF033, CWF033 Legend: metric mm [inches] 84 [3.31] 220 [8.66] 28 [1.1] 260 [10.24] 410 [16.14] 33 [1.3] 70 [2.76] 640 [25.2] 70 [2.76] 760 [29.92] 780 [30.71] 82 [3.23] 816 [32.12] 332 [13.07] 267 [10.51] 202 [7.95] 106 [4.17]...
  • Page 16 Technical data WFF185, IWF185, IWF040, CWF185, CWF040 METRIC Capacity (dry weight) Ratio [kg/Lit] 1:11 16.4 kg 36.15 lb. 1:10 18,1 kg 39.90 lb. 20,1 kg 44.31 lb. Cylinder Diameter 680 mm 26.77 inch Depth 500 mm 19.68 inch Volume 181 Lit 6.39 ft³.
  • Page 17 Dimensions WFF185, IWF185, IWF040, CWF185, CWF040 Legend: metric mm [inches] 84 [3.31] 220 [8.66] 28 [1.1] 260 [10.24] 510 [20.08] 33 [1.3] 70 [2.76] 640 [25.2] 70 [2.76] 860.1 [33.86] 780 [30.71] 82 [3.23] 916.1 [36.07] 332 [13.07] 267 [10.51] 202 [7.95] 106 [4.17] ...
  • Page 18 Technical data WFF235, IWF235, IWF055, CWF235, CWF055 METRIC Capacity (dry weight) Ratio [kg/Lit] 1:11 21.3 kg 46.95 lb. 1:10 23.4 kg 51.58 lb. 26 kg 57.32 lb. Cylinder Diameter 750 mm 29.52 inch Depth 530 mm 20.86 inch Volume 234 Lit 8.26 ft³.
  • Page 19 Dimensions WFF235, IWF235, IWF055, CWF235, CWF055 Legend: metric mm [inches] 241 [9.49] 49 [1.93] 90 [3.54] 680 [26.77] 90 [3.54] 50 [1.97] 282 [11.1] 518 [20.39] 50 [1.97] 860 [33.86] 900 [35.43] 927 [36.5] 321 [12.64] 14 [0.55] 984.5 [38.76] 241 [9.49] 236 [9.29] 151 [5.94]...
  • Page 20 Technical data WFF305, IWF305, IWF075, CWF305, CWF075 METRIC Capacity (dry weight) Ratio [kg/Lit] 1:11 28 kg 61.72 lb. 1:10 30.4 kg 67.02 lb. 33.3 kg 73.41 lb. Cylinder Diameter 850 mm 33.46 inch Depth 537 mm 21.14 inch Volume 304 Lit 10.73 ft³.
  • Page 21 Dimensions WFF305, IWF305, IWF075, CWF305, CWF075 Legend: metric mm [inches] 248 [9.76] 71.5 [2.81] 67 [2.64] 347 [13.66] 570 [22.44] 46 [1.81] 70 [2.76] 850 [33.46] 70 [2.76] 990 [38.98] 1030 [40.55] 1055 [41.54] 7 [0.26] 1113 [43.8] 488 [19.21] 368 [14.47] 247 [9.72] 187 [7.36]...
  • Page 22 WFF185 = WFF185, IWF185, IWF040, CWF185, CWF040 WFF235 = WFF235, IWF235, IWF055, CWF235, CWF055 WFF305 = WFF305, IWF305, IWF075, CWF305, CWF075 A: Bolt M16 (5/8”) (WFF150/185/235/305) B: Concrete base: WFF150/185: 30cm- 12 inch, WFF235/WFF305: 40cm- 16 inch C: Washer 40x17x4 (1.57x0.60x0.15) D: Nut M16 (5/8”) (WFF150/185/235/305)
  • Page 23 Mounting Bolt Hole Locations for machines, WFF150, IWF150, IWF033, CWF033 Legend: metric mm [inches] 70 [2.76] 640 [25.2] 70 [2.76] 780 [30.71]...
  • Page 24 Mounting Bolt Hole Locations for machines, WFF185, IWF185, IWF040, CWF185, CWF040 Legend: metric mm [inches] 70 [2.76] 640 [25.2] 70 [2.76] 780 [30.71]...
  • Page 25 Mounting Bolt Hole Locations for machines, WFF235, IWF235, IWF055, CWF235, CWF055 Legend: metric mm [inches] 90 [3.54] 680 [26.77] 90 [3.54] 860 [33.86]...
  • Page 26 Mounting Bolt Hole Locations for machines, WFF305, IWF305, IWF075, CWF305, CWF075 Legend: metric mm [inches] 70 [2.76] 850 [33.46] 70 [2.76] 990 [38.98]...
  • Page 27 In case of boiler fed machines, a minimum of hot water of 90°C - 194°F should be available per unit. (See Table 1) Min Contents Boiler MODEL METRIC For the WFF150 = WFF150, IWF150, IWF033, CWF033 116 l. 4.09 ft³ For the WFF185 = WFF185, IWF185, IWF040, CWF185, CWF040 145 l.
  • Page 28 Water drain WFF150 = WFF150, IWF150, IWF033, CWF033 WFF185 = WFF185, IWF185, IWF040, CWF185, CWF040 (if drain valve: 2") The machine is equipped with a drain valve with 2" outer diameter (50 mm). This drain valve should be connected to the drain by means of the drain elbow which is delivered with the machine.
  • Page 29 Electrical Installation Important Electrical ratings are subject to changes. Refer to serial plate decal for electrical ratings information specific to your machine. WARNING Hazardous Voltage. Can cause shock, burn or cause death. Allow machine power to remain off for two minutes prior to working in and around AC inverter drive.
  • Page 30 This appliance must be connected to a grounded metal, permanent wiring system; or an equipment- grounding conductor must be run with the circuit conductors and connected to the equipment- grounding terminal or lead on the appliance. IMPORTANT: Alliance Laundry Systems Warranty does not cover components that fail as a result of improper input voltage.
  • Page 31 Main power connection Label 4 Connection label: Machine power connections are made at the back of the machine. Three or four conductor power cable is the recommended method (See chapter electrical specs for minimum cable requirements, if local electrical codes exceed these requirements, follow local codes). The number of conductors in this cable and the proper connection points for the cable wires shall be determined by the machine and power requirements.
  • Page 32 200-240 Volts, 3-Phase, 3-wire + PE, 50 or 60 Hertz Configuration (Named: Q-Voltage or 3-phase X-Voltage): With supply power of: 200-240 Volts, 3-phase, 3-wire, after connecting the green/yellow PE ground wire, connect one power wire to each of the terminals at the bottom of the power contactor switch marked: “L1,L2,L3”. 200-240 volts, 1-Phase, 2-wire + PE, 50 Hertz (called 1-phase, 50 Hz X-voltage): With supply power of: 200-240 Volts, 1-phase, 2-wire, 50Hz, after connecting the green/yellow PE ground wire, connect the power wire to the “L1”...
  • Page 33 WARNING The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications WFF150, IWF150, IWF033, CWF033 150 liters / 33 pounds Boiler Fed/Steam Heat Electric Heat NON-US NON-US 440-480 50/60 3+PE 14/2.5 29,6 12/4.0...
  • Page 34 WARNING The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications WFF185, IWF185, IWF040, CWF185, CWF040 185 liters / 40 pounds Boiler Fed/Steam Heat Electric Heat NON-US NON-US 440-480 50/60 3+PE 14/2.5 29,6 12/4.0...
  • Page 35 WARNING The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications WFF235, IWF235, IWF055, CWF235, CWF055 235 liters / 55 pounds Boiler Fed/Steam Heat Electric Heat NON-US NON-US 440-480 50/60 3+PE 14/2.5 29,8 12/4.0...
  • Page 36 WARNING The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment. Electrical Specifications WFF305, IWF305, IWF075, CWF305, CWF075 305 liters / 75 pounds Boiler Fed/Steam Heat Electric Heat NON-US NON-US 440-480 50/60 3+PE 14/2.5 39,2 12/4.0...
  • Page 37 Liquid soap connection (option) Connection of the liquid soap hoses The liquid soap connection consists of 8 connections for liquid soap (See Label 5). The central opening is used for ventilation. WARNING Dangerous Chemicals. May damage eyes and skin. Wear eye and hand protection when handling chemicals;...
  • Page 38 The 220V can be transformed to other values to drive other type soap pumps. Example: pumps 24V ~. (See Label 7) Label 7 Also, pumps with different operating tension can be combined. Example: 5 pumps 220V ~ and 1 pump 24V ~. (See Label 8) Label 8 With an external tension 24V DC (See Label 9) Label 9...
  • Page 39 Connection of a central operating panel for coin machines (option) WARNING To reduce the risk of electric shock, disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply.
  • Page 40 7. Steam hose with appropriate pipe coupling Steam Supply Information MODEL For the WFF150 = WFF150, IWF150, IWF033, CWF033 2.0 - 5.5 30 - 80 For the WFF185 = WFF185, IWF185, IWF040, CWF185, CWF040 2.0 - 5.5 30 - 80 For the WFF235 = WFF235, IWF235, IWF055, CWF235, CWF055 2.0 - 5.5 30 - 80...
  • Page 41 Technical remarks Internal connections of the electrical heating 1 AC Heating LC1D0901 Table 8 3 AC Heating 3x230V 3x400V 12kw 3x4kw -------- -------- See label 14 LC1D0901 12kw 3x2kw See label 14 LC1D1810 See label 15 LC1D0901 3x2kw See label 14 LC1D1810 15kw 3x2kw...
  • Page 42 Maintenance instruction of the machine WARNING To reduce the risk of electric shock, disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply. Before starting wiring or inspection, power must be switched OFF, check to make sure that the operation panel indicator is off.
  • Page 43 (see figure). Belt tension testing table Model Belt Frequency (Hz) Tension force (N) Deflection (mm) Deflection force at MIN at MAX tension tension WFF150 PK7 1520 10,4 WFF185 PK7 1520 10,4 WFF235 PK8 1854 11,3 WFF305 PK8 1915 1116...
  • Page 44 Contact Information Nameplate Nameplate Location The nameplate is located at the rear of the machine. Always provide the machine’s serial number and model number when ordering parts or when seeking technical assistance. See Labels 16 and 17. Label 16 Label 17...
  • Page 45 Position of the Serialplate Replacement Parts If literature or replacement parts are required, contact the source from which the machine was purchased or contact the phone numbers or websites shown on the nameplate.
  • Page 46 Program: ................Date of installation: ..............Installed by: ................Serial number: ............... Operation voltage and frequency: ......... Alliance Laundry Systems Shephard Street, PO BOX 990 Ripon, WI 54971-0990 United States Tel: 001 920 748 3121 - Fax: 001 920 748 1645 www.comlaundry.com...
