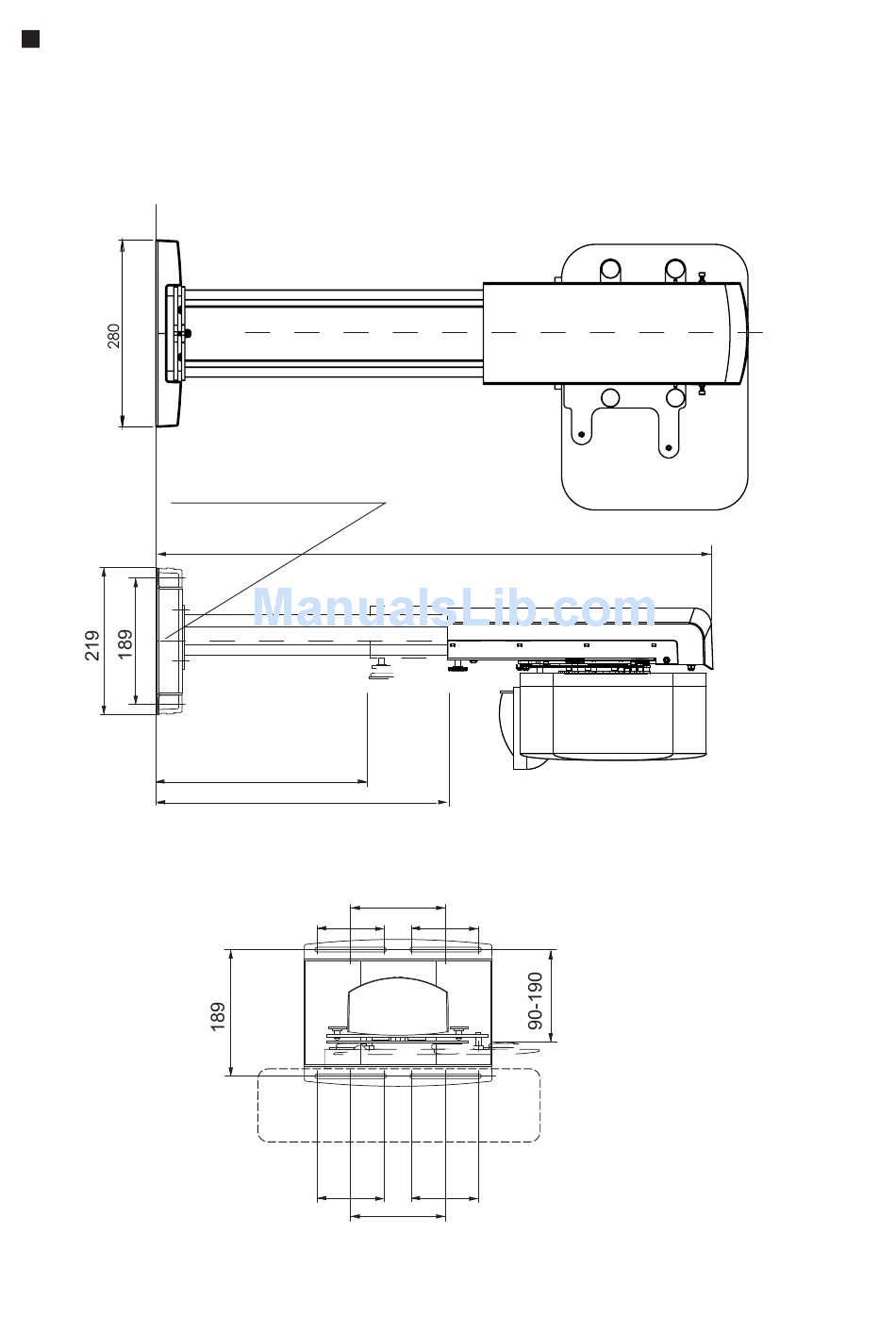

Dimensions of Parts:

(unit: mm)
The dimensions of the positions of the wall fixation screws (bolts) of the wall adapter are
described
Central axis
The center of the wall adapter
(central axis)
883 (minimum) -1263 (maximum)
490
850
Projector posterior surface
142
100
100
Projector bottom surface
(including the legs)
100
100
142
6
