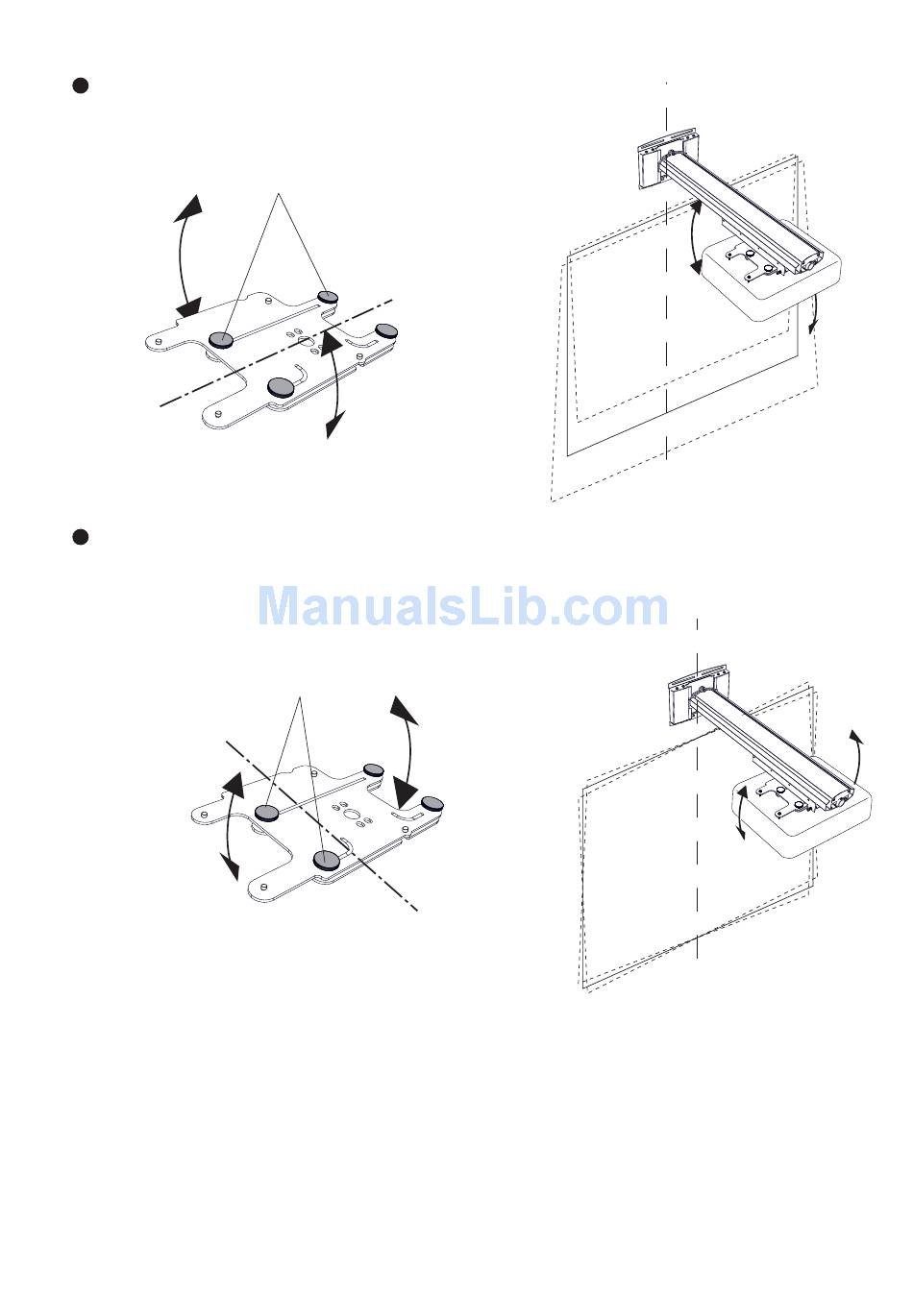

4. Adjust the tilt.
Tilt adjustment is performed with the four adjustment knobs.
Front/rear tilt adjustment
Adjust together
Left/right tilt adjustment
Fine adjustment in same direction as for vertical adjustment
Adjust together
• If tilt adjustment achieved with these knobs is not suf cient, repeat the adjustment process from
step 2 on page E-12.
• During adjustment, the position of the projected image may shift. In such a case, loosen the wall
adapter and arm fixation screws and adjust the position.
This completes the adjustment.
Securely tighten all screws and adjustment knobs.
Rotation axis
Rotation axis
12
