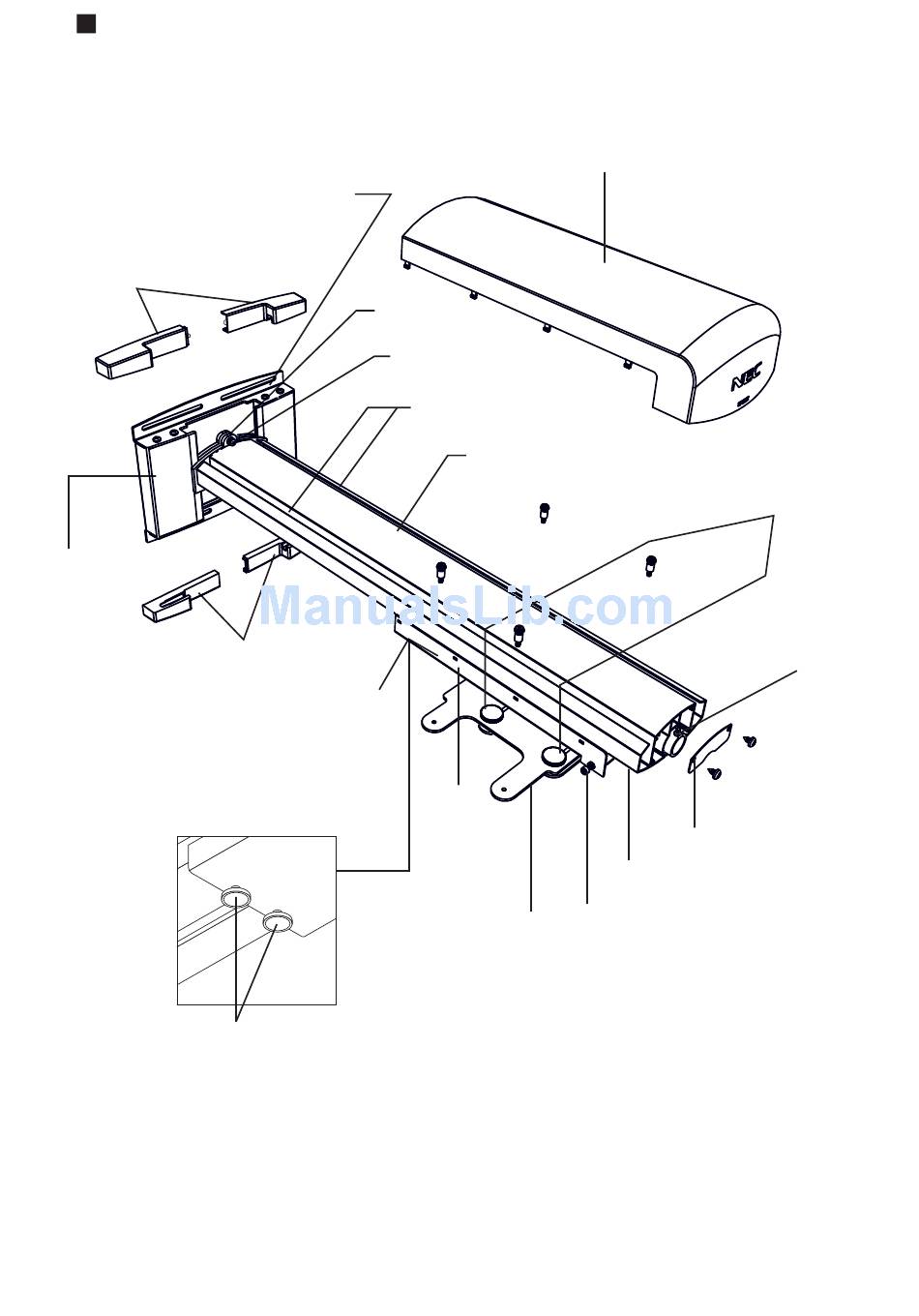

Names of Parts

Elongate hole for screw (or bolt)
(4 parts)
Covers (A, B)
Wall adapter
Vertical adjust/
Arm fixation knobs
Cover (B, A)
Arm cover
Plate (A)
Arm fixation screw
Grooves for wiring
Arm
Projector
adapter
Projector fixation
plate
5
Tilt adjust knobs (4 parts)
Plate (B)
Horizontal fixation nut
Horizontal adjust screws
Central axis
