Exterior view

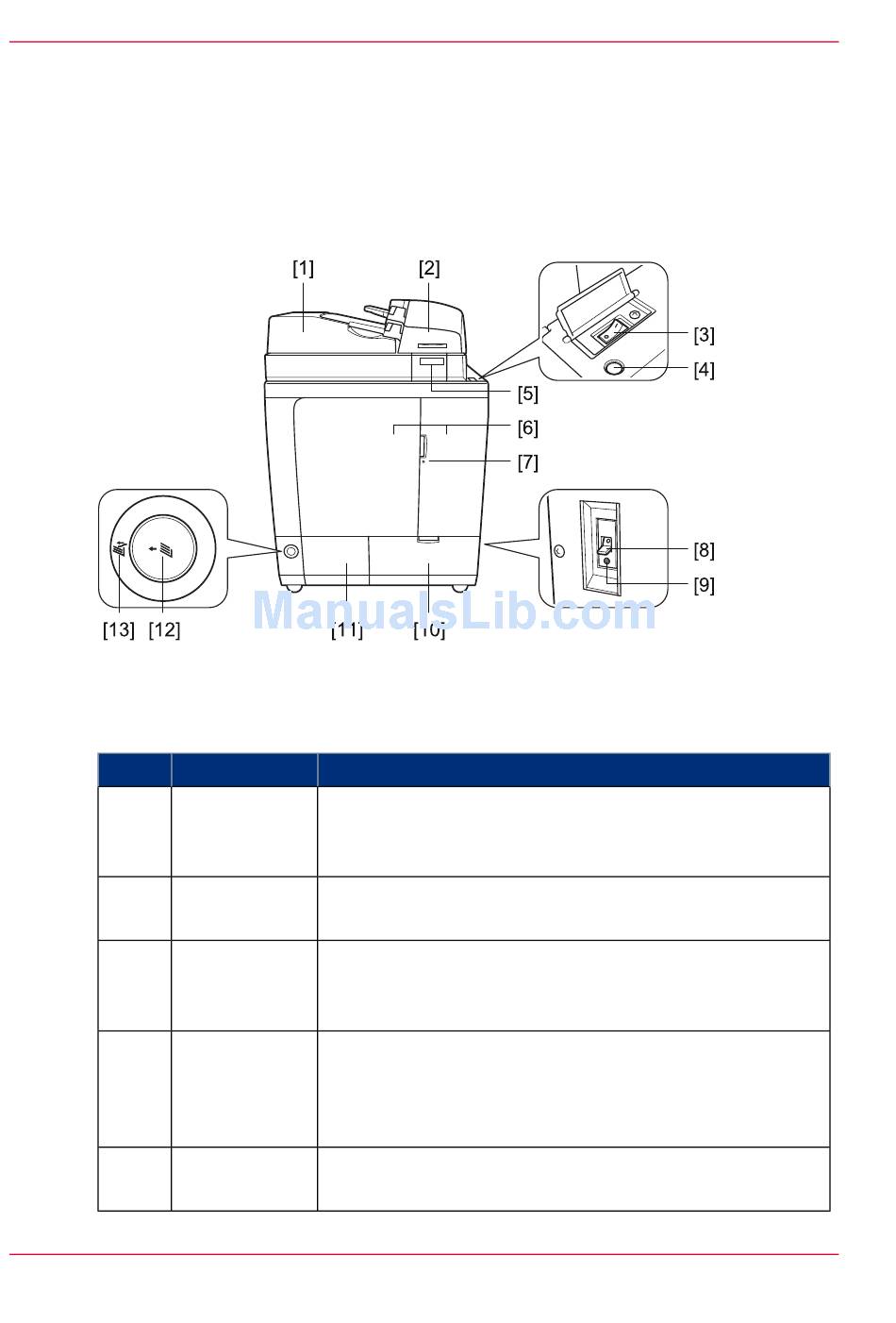

Parts and their functions
Exterior view
Illustration
Parts and their functions
#
1
2
3
4
5
26
Chapter 2 - Before you start using this machine
Part
Function
Top cover
Open this cover when clearing a paper jam from the gath-
ering tray.
'Clear a paper jam inside the top cover' on page 61
Sheet inserter
For loading paper used for covers or insert sheets.
'Load paper into the sheet inserter' on page 45
Power switch
Turns power on and off.
'How to turn the main power on' on page 33
'How to turn the main power off' on page 34
Energy
Enters and exits the energy save mode. Also, it lights green
saver/LED
in energy save mode and flashes when adjustment of the
glue temperature starts.
'Energy saver and energy save mode' on page 35
Glue unit
Open when replenishing glue.
'Replenish glue' on page 54
