Canon imagePROGRAF iPF6100 User Manual page 665

Important
•

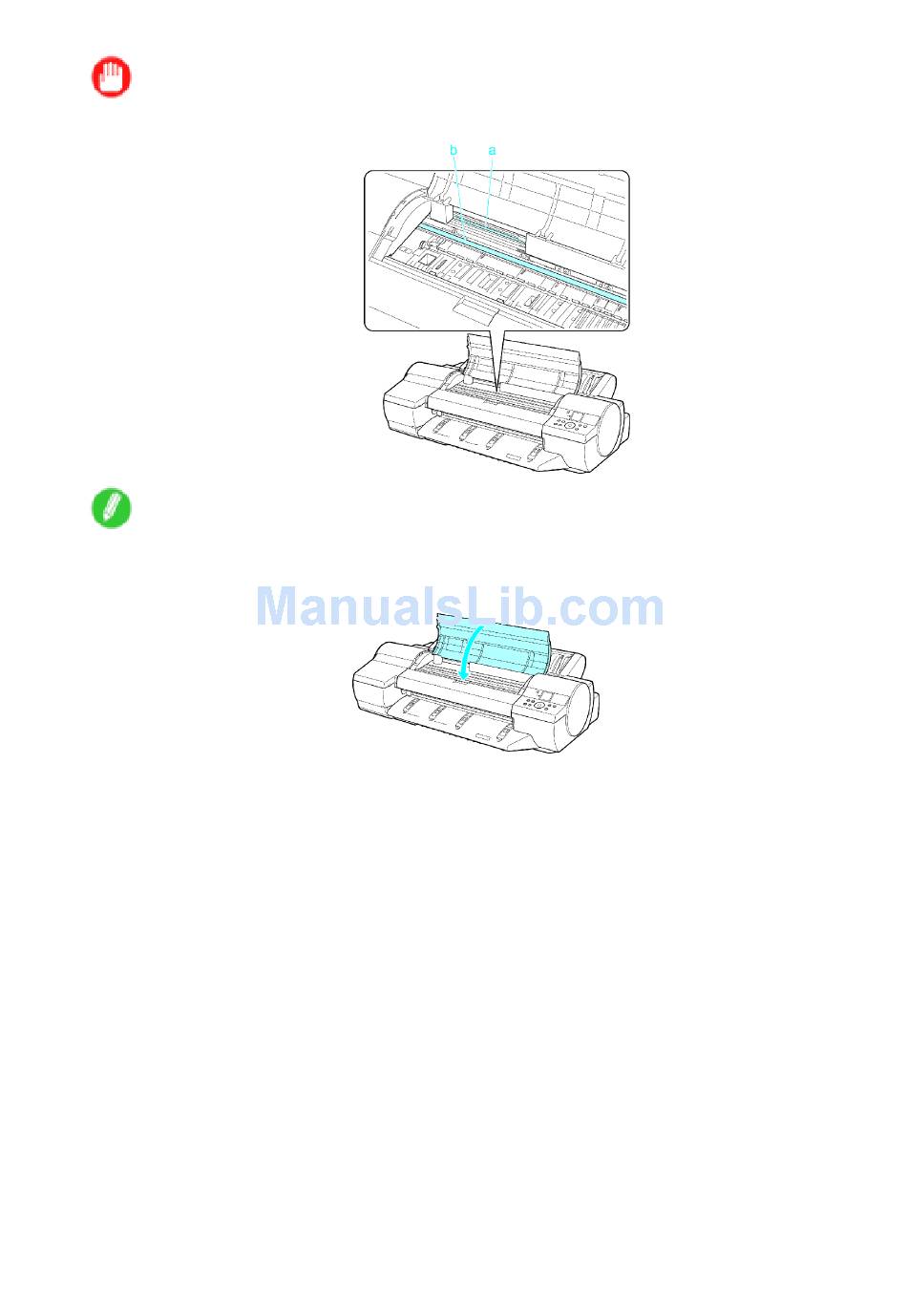

Never touch the Linear Scale (a) or Carriage Shaft (b).
Note
•
Here, the Belt Stopper is the one that was removed and stored after initial installation.
13.
Close the Top Cover.
14.
Tape down printer covers to secure them, in the reverse order of tape removal during installation.
15.
Repack the Roll Holder, Holder Stopper, and printer in shipping materials, and then package
them in a shipping box.
Other Maintenance
Maintenance 651
