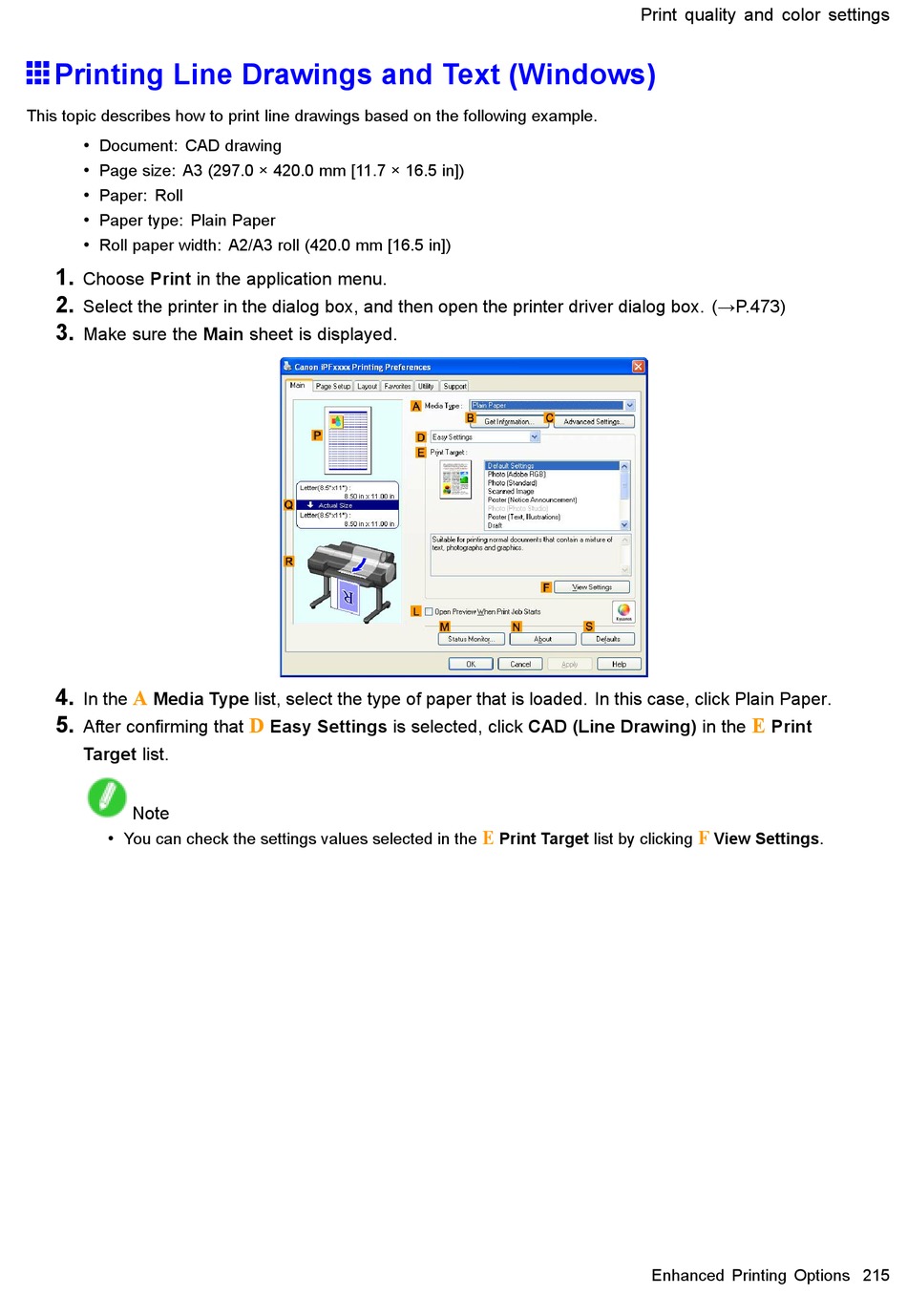

Printing Line Drawings and Text (Windows)
This topic describes how to print line drawings based on the following example.
•
Document: CAD drawing
•
Page size: A3 (297.0 × 420.0 mm [11.7 × 16.5 in])
•
Paper: Roll
•
Paper type: Plain Paper
•
Roll paper width: A2/A3 roll (420.0 mm [16.5 in])
1.
Choose Print in the application menu.
2.
Select the printer in the dialog box, and then open the printer driver dialog box. (→P.473)
3.
Make sure the Main sheet is displayed.
4.
A
In the Media Type list, select the type of paper that is loaded. In this case, click Plain Paper.
5.
After conrming that
Target list.
Note
•
You can check the settings values selected in the
D
Easy Settings is selected, click CAD (Line Drawing) in the
Print quality and color settings
E
Print Target list by clicking
E
Print
F
View Settings.
Enhanced Printing Options 215
