Alliance Laundry Systems Drying Tumblers Maintenance Manual
25-170 pound capacity
Hide thumbs
Also See for Drying Tumblers:
- Installation manual (60 pages) ,
- Troubleshooting manual (63 pages)
Subscribe to Our Youtube Channel
Related Manuals for Alliance Laundry Systems Drying Tumblers
Summary of Contents for Alliance Laundry Systems Drying Tumblers

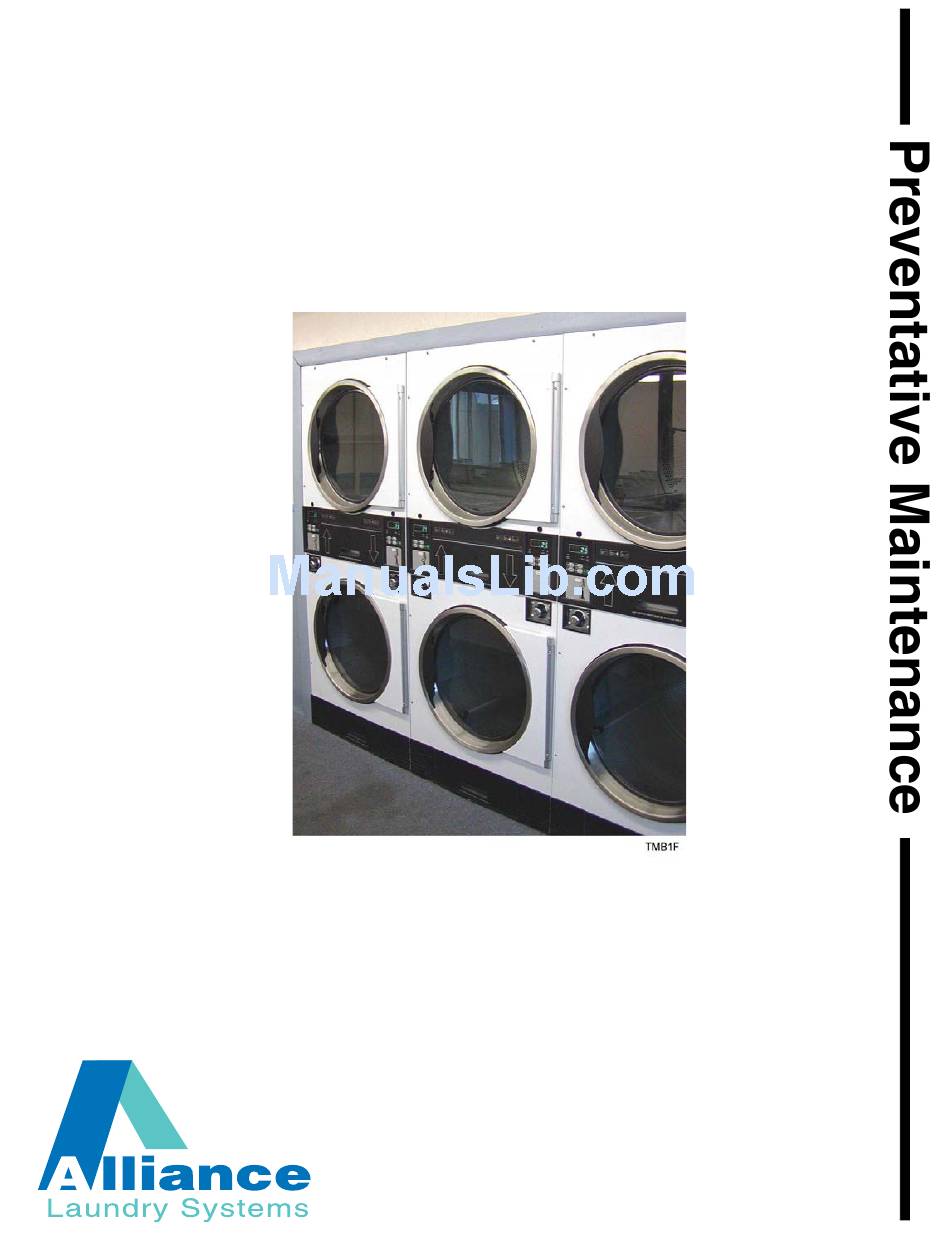

- Page 1 Drying Tumblers 25-170 Pound Capacity Please refer to your operating manual for detailed maintenance procedures. Part No. 70323301R6 www.comlaundry.com December 2009...
-
Page 3: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 70323301... -
Page 4: Daily
Single Tumblers Lint Screen Lint Compartment Stack Tumblers TMB2F 2. Check cylinder for foreign objects to avoid damage to clothing and equipment. Lint Screens © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 70323301... -
Page 5: Monthly
TMB37F airflow and avoid overheating. Stack Tumbler 30 and 45 Pound Stack Tumblers TMB1809B TMB2066P Even lint Uneven lint Access distribution distribution Covers TMB6F © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 70323301... - Page 6 25, 30, 35 and 55 Pound Tumblers TMB38F Thermistor Thermostat 120 and 170 Pound Tumblers Thermostat Thermistor Blower Stack 30 and 45 Pound Tumblers TMB39F Thermistor Thermistor Blower Thermostat © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 70323301...
-
Page 7: Quarterly
25, 30, 35, 55, T30 and T45 Models: Use a Adjusting Screws vacuum to clean lint from rear limit thermostat cover. No Airflow Air Shutter T457I Adjusting Screws Thermostat Cover © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 70323301... - Page 8 After February 2006 Belt Opening TMB15F TMB43F Belts TMB42F Belt 120 and 170 Pound Tumblers TMB16F Stack 30 and 45 Pound Tumblers Belt Belts Opening TMB17F TMB48F © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 70323301...
-
Page 9: Bi-Annually
4. Check steam connections for looseness and leakage. TMB22F 50 and 75 Pound Gas Connection Connection TMB25F Steam Connections 5. Remove all front panels and vacuum, including coin TMB45F drop mechanisms. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 70323301... - Page 10 8. Clean burner tubes and orifice area of any lint buildup. Burner Tube with Lint Buildup Inlet Hoses Outlet Hose TMB26F Burner Tube without Lint Buildup TMB2008N TMB2008N TMB27F © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 70323301...
-
Page 11: Annually
Check seal and idler assembly for wear. Rear Idler Seal Assembly All Models: 2. Remove burner tubes and clean using water and a brush. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 70323301... -
Page 12: Daily Preventative Maintenance Checklist
4. Clean lint and debris buildup from blower to maintain proper airflow, avoid overheating and prevent possible vibration. Laminate this checklist so that it can be re-used. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 70323301... -
Page 13: Quarterly Preventative Maintenance Checklist
Check seal and idler assembly for wear. 2. All Models: Remove burner tubes and clean using water and a brush. Laminate this checklist so that it can be re-used. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 70323301...
