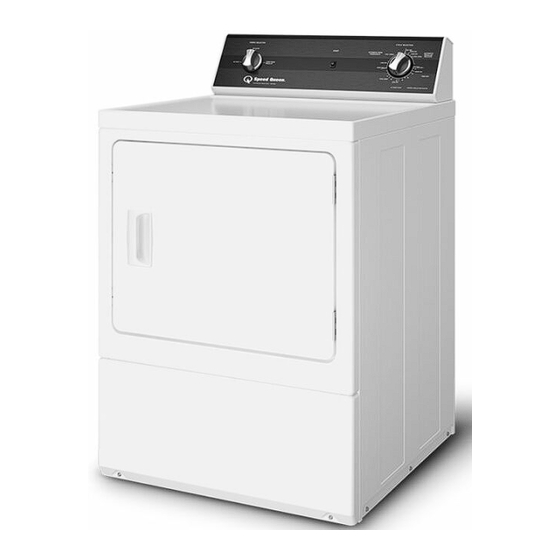

- Page 1 Installation Instructions for Dryers Original Instructions Keep These Instructions for Future Reference. CAUTION: Read the instructions before using the machine. (If this machine changes ownership, this manual must accompany machine.) Part No. D516901ENR3 www.speedqueen.com January 2020...
- Page 3 Installation and service must be performed by a appliance. qualified installer, service agency or the gas sup- plier. W053 W052 This product uses FreeRTOS V7.2.0 (www.freertos.org). © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT...
- Page 4 A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance. • This appliance must not be installed in a bedroom or bath- room. © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT...
-
Page 5: Table Of Contents
Installer Checklist.................23 © Copyright 2020, Alliance Laundry Systems LLC All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. -
Page 6: Dimensions
28 in. [711 mm] 23.5 in. [597 mm] NOTE: Exhaust openings are 4 inch [102 mm] metal * With leveling legs turned into base. ducting. © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT... - Page 7 28 in. [711 mm] 23.5 in. [597 mm] NOTE: Exhaust openings are 4 inch [102 mm] metal * With leveling legs turned into base. ducting. © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT...
-
Page 8: Installation
W299 Parts Included An accessories bag has been shipped inside your dryer. It in- cludes: • Product literature © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT... - Page 9 Installation 1. Dryer Base 2. Level 3. Leveling Leg Figure 2 © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT...
- Page 10 Front View (Closet Door) 2 (G) DRY2637N_SVG 1. Closet Door 2. Centered Air Openings (G) (2 Openings minimum) 3. Outer Wall of Enclosure Figure 3 © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT...
-
Page 11: Connect Dryer Exhaust System
To reduce the risk from substances in the fuel W604 or from fuel combustion, make sure this appliance is installed, operated, and maintained according to the instructions in this manual. W115 © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT... -
Page 12: Exhaust Direction
• In mobile home installations, dryer exhaust duct must be se- cured to mobile home structure. © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT... -
Page 13: Gas Dryers - Connect Gas Supply Pipe
Use a non-corrosive leak detection fluid. • Any disassembly requiring the use of tools must be performed by a suitably qualified service per- son. W316 © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT... - Page 14 NOTE: DO NOT connect the dryer to L.P. Gas Service without converting the gas valve. Install L.P. Gas Con- version Kit 649P3, available at extra cost. © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT...
-
Page 15: Connect Electrical Plug (Electric Dryer Only)
MAXIMUM RATED VOLTAGE listed on the serial plate. an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT... - Page 16 14. Intermediate Shut-Off Box (may or may not be fused) 15. Direct Connection 16. Power Cord Connection Figure 6 1. Disconnect power to dryer. 2. Remove access cover from rear of dryer. © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT...
-
Page 17: Connecting Power Cord With Four-Wire Plug
5. Using a screwdriver, tighten all screws firmly. DRY2467N_SVG IMPORTANT: Failure to tighten these screws firmly may result in wire failure at the terminal block. Figure 11 © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT... -
Page 18: Reverse Door, If Desired
10. Reinstall access cover and screw. Reverse Door, if Desired NOTE: Doors with windows cannot be reversed. © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT... - Page 19 DRY1918N_SVG Figure 20 7. Reinstall nine screws removed in Step 2. DRY1916N_SVG Figure 17 4. Rotate door panel 180 degrees as shown. DRY1919N_SVG Figure 21 © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT...
-
Page 20: Wipe Out Inside Of Dryer
Figure 24 W521 When plugging in the dryer: © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT... -
Page 21: Grounding Information
Check Heat Source qualified electrician should correct the problem. Do not operate other appliances on the same circuit when this ap- pliance is operating. © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT... -
Page 22: Electric Dryers
W158 6. After the dryer has operated for approximately three minutes, exhaust air or exhaust pipe should be warm. © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT... -
Page 23: Installer Checklist
Start and Run Dryer in Heat Setting to Verify Dryer is Heating. • Connect Electrical Cord. CHECK CHECK D699I_SVG1 Reverse Door, if De- sired. CHECK D675I_SVG1 Refer to the manual for more detailed information. © Copyright, Alliance Laundry Systems LLC - Part No. D516901ENR3 DO NOT COPY or TRANSMIT...
