Replacing the hard drive

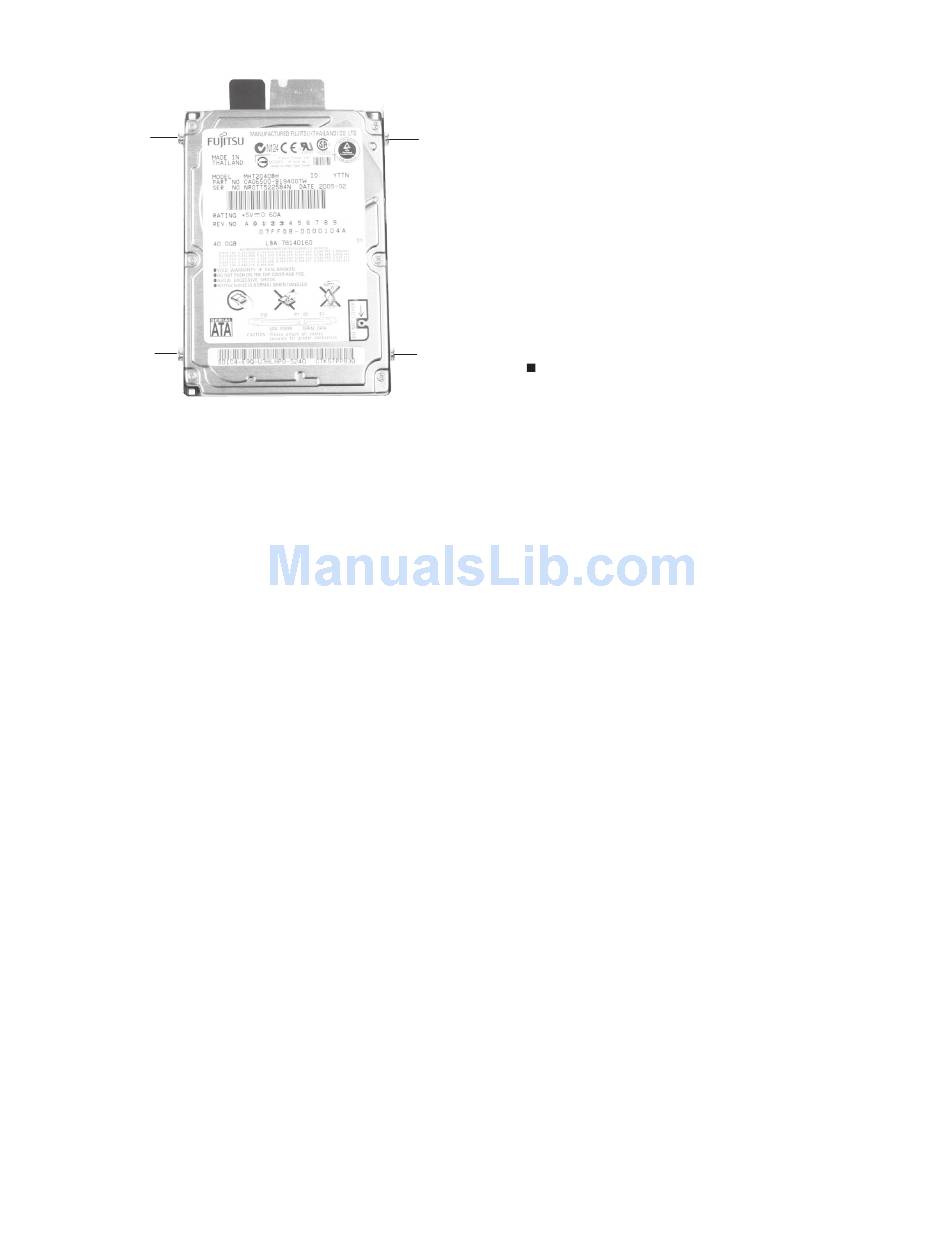

12 Remove the four screws that secure the hard drive to the hard
drive kit bracket.
Screw
Screw
Technical Support
See the label on the bottom of the notebook for Customer Care Information. See
your Reference Guide for important safety, regulatory, and legal information.
13 Remove the bracket from the old drive.
14 Place the new drive, label side up, onto the bracket so the screw
holes line up.
15 Replace the four screws that secure the bracket to the drive.
16 Place the new hard drive kit into your convertible notebook, slide
the drive into the connector, then replace the hard drive screw.
Screw
17 Replace the cover, then tighten the cover screws.
18 Insert the battery(ies), then turn your convertible notebook over.
19 Connect the power adapter, modem cable, and network cable.
20 Turn on your convertible notebook, open the DVD drive, insert
the Windows DVD, close the DVD drive, then restart your
convertible notebook.
21 When the prompt "Press any key to boot from CD or DVD"
appears, press any key on your keyboard and follow the
on-screen instructions. As part of the process you may be
prompted to insert your Drivers and Applications Recovery disc.
22 Reconnect all peripheral devices, including the optional port
replicator, and replace any PC and memory cards.
Screw
