Replacing the Wireless Network Module
10 Move the antenna cables out of the way.
11 Press outward on the clip at each side of the module until the
module tilts upward.
0
-OR-
Remove the screws that secure the module to the system board.
Technical Support
See the label on the bottom of the notebook for Customer Care Information. See
your Reference Guide for important safety, regulatory, and legal information.

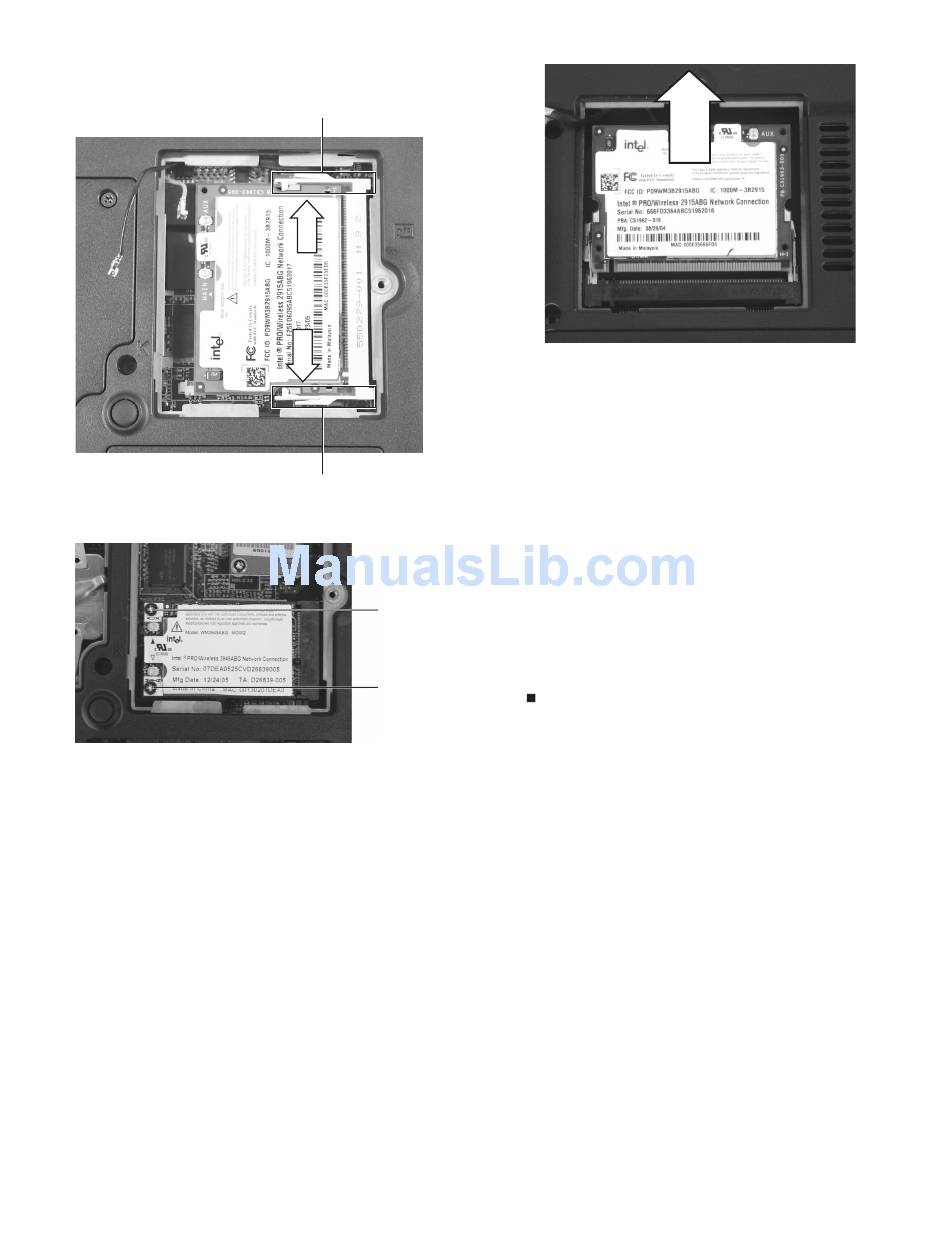

Clip
Clip
Screw
Screw
© 2007 Gateway, Inc. All rights reserved. Gateway and eMachines are trademarks
or registered trademarks of Gateway, Inc. in the United States and other countries.
All other brands and product names are trademarks or registered trademarks of
their respective companies.
12 Pull the module out of the slot.
13 Hold the new module at a 30-degree angle and insert it into the
empty slot. This module is keyed so it can only be inserted in one
direction. If the module does not fit, make sure that the notch in
the module lines up with the tab in the module slot.
14 Move the antenna wires out of the way.
15 Press the module down until it clicks into place.
-OR-
Replace the screws removed in
16 Reattach the antenna cables to the connectors.
17 Replace the wireless network bay cover, then tighten the cover
screw.
18 Insert the battery(ies), then turn your convertible notebook over.
19 Connect to the optional port replicator.
-OR-
Connect the power adapter, modem cable, and network cable.
20 Reconnect all peripheral devices and replace any PC and memory
cards.
21 Turn on your convertible notebook.
