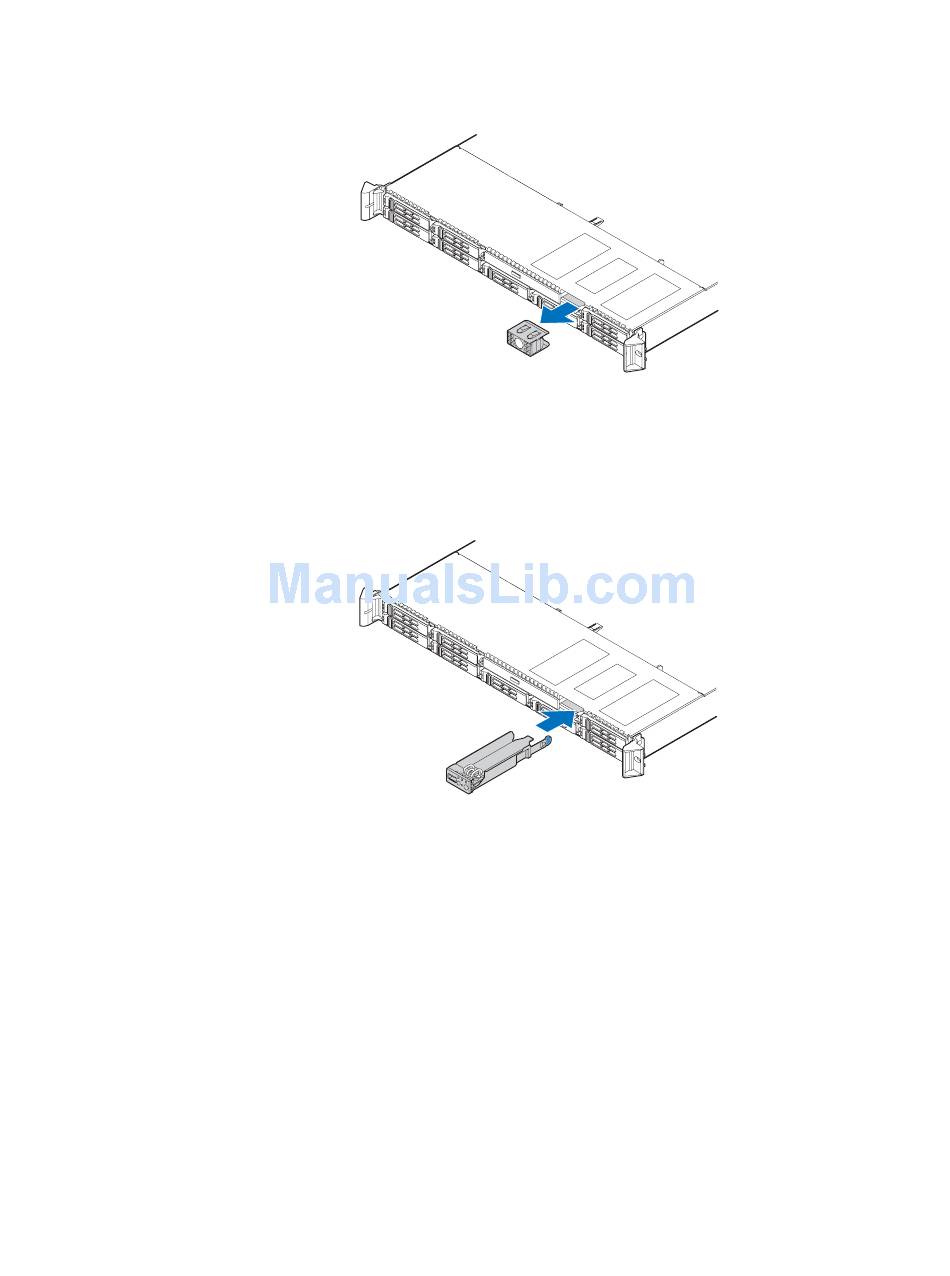

7. Remove the mini control panel filler from the server system as shown below.
TP02247

Figure 63. Removing Mini Control Panel Filler from the Server System

8. Slide the mini control panel into the server system until it clicks into place.
TP02246

Figure 64. Installing Mini Control Panel into the Server System

9. Install a standard control panel filler or two drive carriers.
10. Install the server system cover. For instructions, see
"Installing the Server System
Cover".
11. (Optional) Install the front bezel. For instructions, see
"Installing the Front
Bezel".
12. Plug all peripheral devices and the AC power cable into the server.
®
Intel
Server System SR1550AL/SR1550ALSAS User's Guide
71
