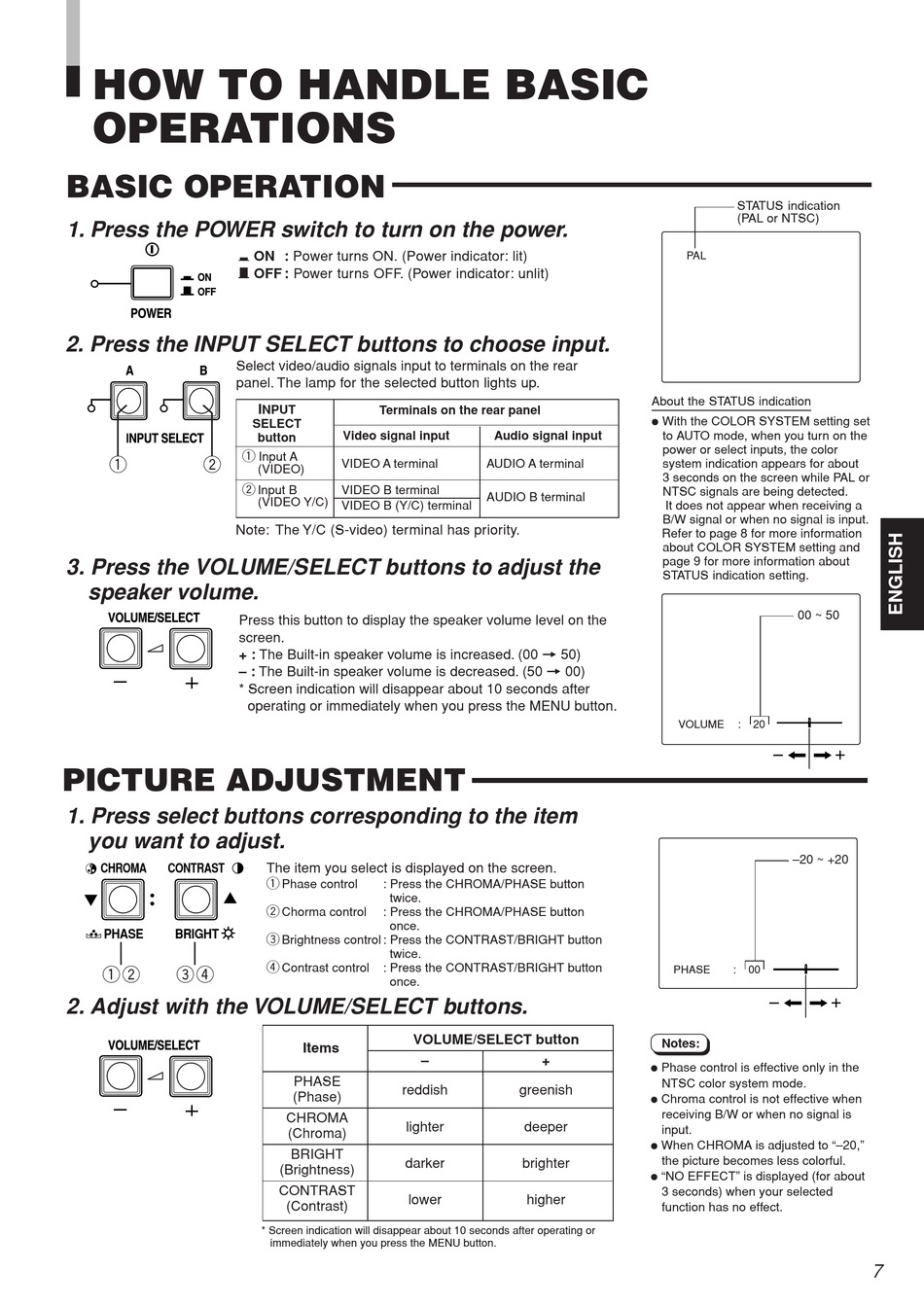

HOW TO HANDLE BASIC
OPERATIONS
BASIC OPERATION
1. Press the POWER switch to turn on the power.
2. Press the INPUT SELECT buttons to choose input.
Select video/audio signals input to terminals on the rear
panel. The lamp for the selected button lights up.
Note: The Y/C (S-video) terminal has priority.
3. Press the VOLUME/SELECT buttons to adjust the
speaker volume.
PICTURE ADJUSTMENT
1. Press select buttons corresponding to the item
you want to adjust.
CHROMA CONTRAST
PHASE BRIGHT
2. Adjust with the VOLUME/SELECT buttons.
_ ON : Power turns ON. (Power indicator: lit)
— OFF : Power turns OFF. (Power indicator: unlit)
I
NPUT Terminals on the rear panel
SELECT
Video signal input
button
1
Input A
VIDEO A terminal
(VIDEO)
2
Input B VIDEO B terminal
(VIDEO Y/C) VIDEO B (Y/C) terminal
Press this button to display the speaker volume level on the
screen.
+ : The Built-in speaker volume is increased. (00 = 50)
– : The Built-in speaker volume is decreased. (50 = 00)
* Screen indication will disappear about 10 seconds after
operating or immediately when you press the MENU button.
The item you select is displayed on the screen.
1
Phase control : Press the CHROMA/PHASE button
twice.
2
Chorma control : Press the CHROMA/PHASE button
once.
3
Brightness control : Press the CONTRAST/BRIGHT button
twice.
4
Contrast control : Press the CONTRAST/BRIGHT button
once.
Items
PHASE
reddish
(Phase)
CHROMA
lighter
(Chroma)
BRIGHT
darker
(Brightness)
CONTRAST
lower
(Contrast)
* Screen indication will disappear about 10 seconds after operating or
immediately when you press the MENU button.
Audio signal input
AUDIO A terminal
AUDIO B terminal
VOLUME/SELECT button
– +
greenish
deeper
brighter
higher
STATUS indication
(PAL or NTSC)
PAL
About the STATUS indication
÷ With the COLOR SYSTEM setting set
to AUTO mode, when you turn on the
power or select inputs, the color
system indication appears for about
3 seconds on the screen while PAL or
NTSC signals are being detected.
It does not appear when receiving a
B/W signal or when no signal is input.
Refer to page 8 for more information
about COLOR SYSTEM setting and
page 9 for more information about
STATUS indication setting.
00 ~ 50
VOLUME : 20
–
–20 ~ +20
PHASE : 00
–
Notes:
÷ Phase control is effective only in the
NTSC color system mode.
÷ Chroma control is not effective when
receiving B/W or when no signal is
input.
÷ When CHROMA is adjusted to "–20,"
the picture becomes less colorful.
÷ "NO EFFECT" is displayed (for about
3 seconds) when your selected
function has no effect.
+
+
7
