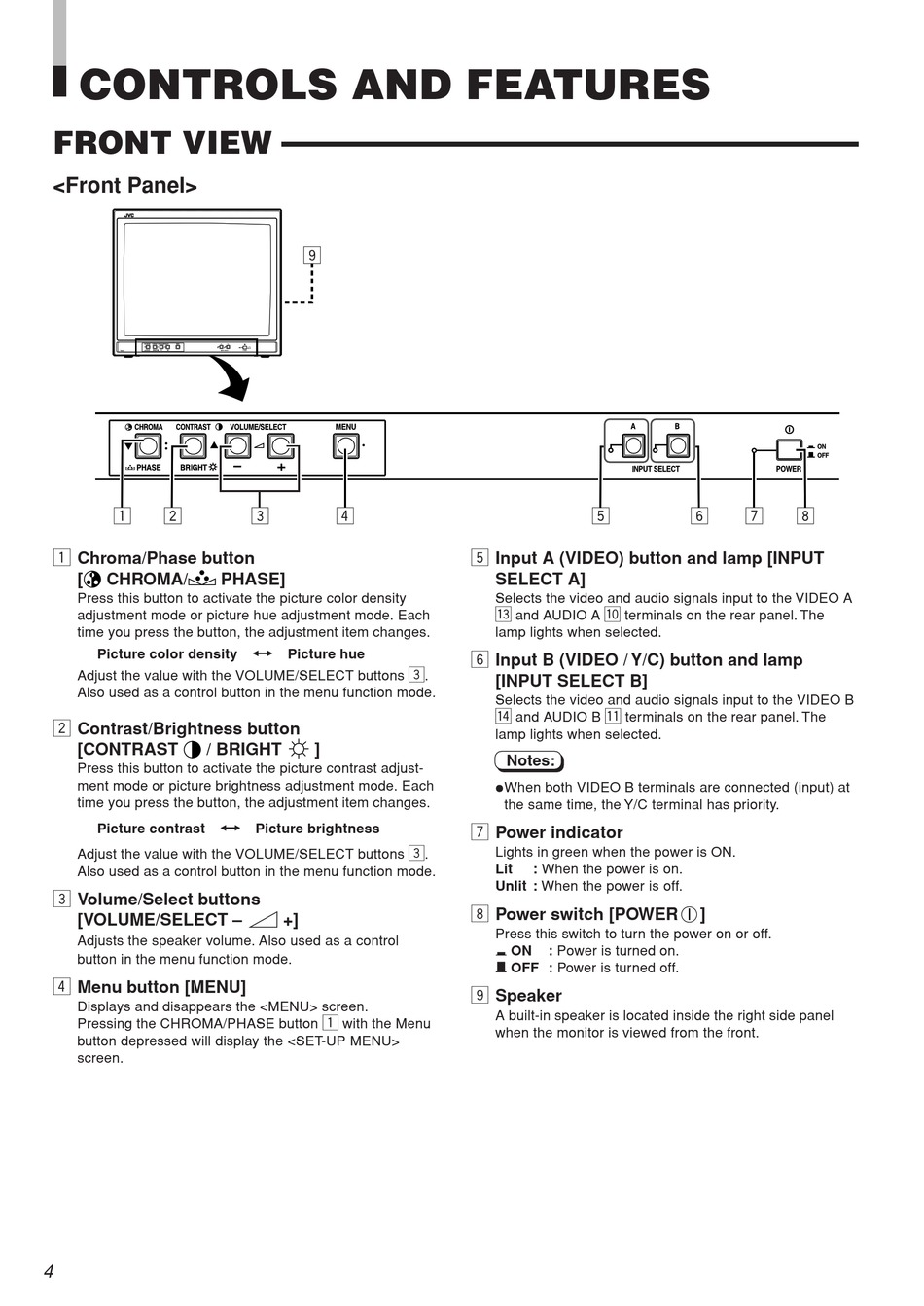

CONTROLS AND FEATURES

FRONT VIEW
<Front Panel>
1
Chroma/Phase button
[ CHROMA/
Press this button to activate the picture color density
adjustment mode or picture hue adjustment mode. Each
time you press the button, the adjustment item changes.
Picture color density
Adjust the value with the VOLUME/SELECT buttons
Also used as a control button in the menu function mode.
2
Contrast/Brightness button
[CONTRAST / BRIGHT
Press this button to activate the picture contrast adjust-
ment mode or picture brightness adjustment mode. Each
time you press the button, the adjustment item changes.
Picture contrast
Adjust the value with the VOLUME/SELECT buttons
Also used as a control button in the menu function mode.
3
Volume/Select buttons
[VOLUME/SELECT –
Adjusts the speaker volume. Also used as a control
button in the menu function mode.
4
Menu button [MENU]
Displays and disappears the <MENU> screen.
Pressing the CHROMA/PHASE button
button depressed will display the <SET-UP MENU>
screen.
4
PHASE]
Ô
Picture hue
]
Ô
Picture brightness
+]
1
with the Menu
5
Input A (VIDEO) button and lamp [INPUT
SELECT A]
Selects the video and audio signals input to the VIDEO A
e
and AUDIO A
lamp lights when selected.
6
Input B (VIDEO / Y/C) button and lamp
3
.
[INPUT SELECT B]
Selects the video and audio signals input to the VIDEO B
r
and AUDIO B
lamp lights when selected.
Notes:
÷When both VIDEO B terminals are connected (input) at
the same time, the Y/C terminal has priority.
7
Power indicator
3
Lights in green when the power is ON.
.
Lit : When the power is on.
Unlit : When the power is off.
8
Power switch [POWER
Press this switch to turn the power on or off.
_ ON
: Power is turned on.
— OFF : Power is turned off.
9
Speaker
A built-in speaker is located inside the right side panel
when the monitor is viewed from the front.
p
terminals on the rear panel. The
q
terminals on the rear panel. The
]
