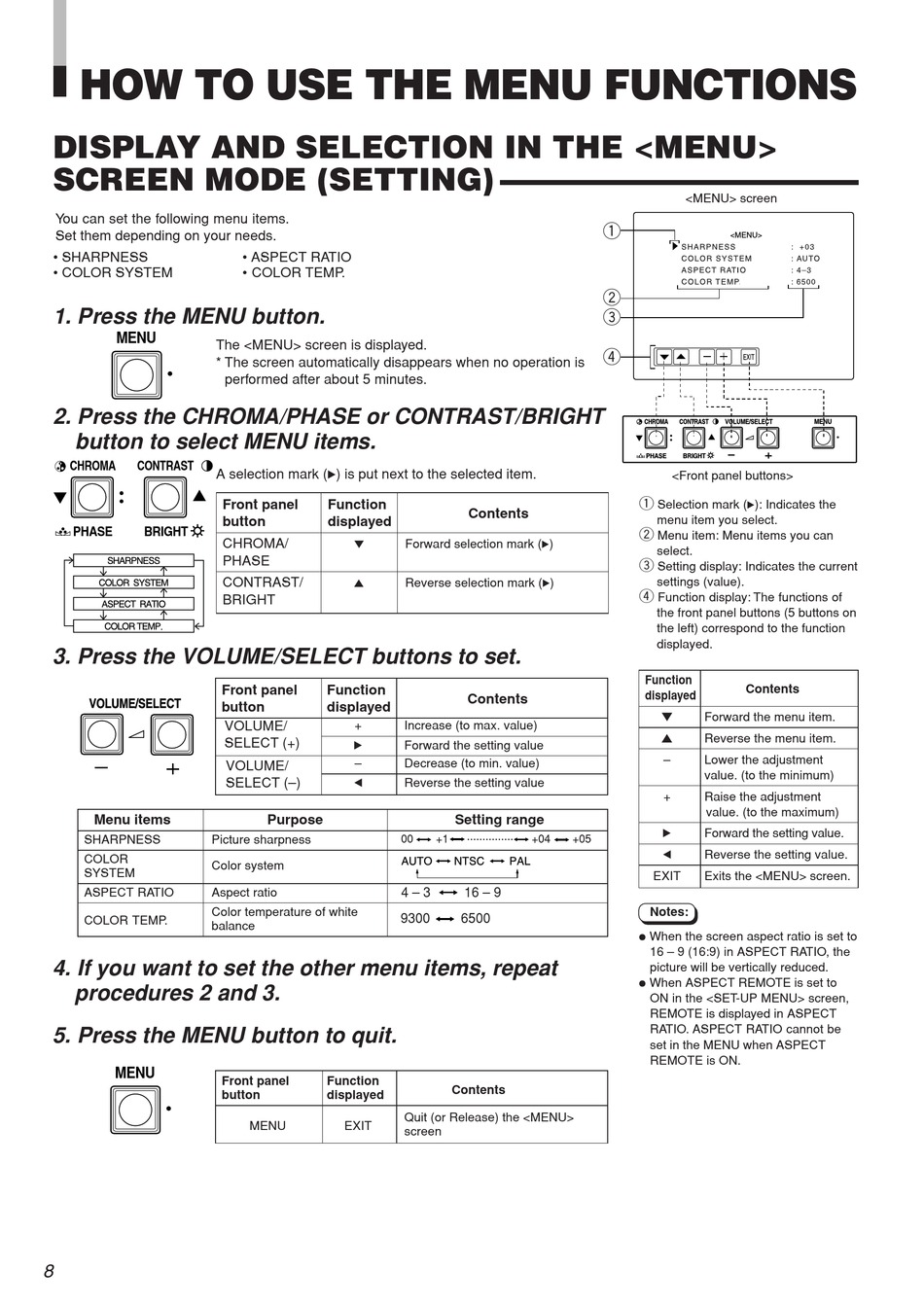

HOW TO USE THE MENU FUNCTIONS

DISPLAY AND SELECTION IN THE <MENU>
SCREEN MODE (SETTING)
You can set the following menu items.
Set them depending on your needs.
• SHARPNESS
• COLOR SYSTEM
1. Press the MENU button.
MENU
The <MENU> screen is displayed.
* The screen automatically disappears when no operation is
2. Press the CHROMA/PHASE or CONTRAST/BRIGHT
button to select MENU items.
CHROMA CONTRAST
A selection mark (3) is put next to the selected item.
PHASE BRIGHT
3. Press the VOLUME/SELECT buttons to set.
Menu items
SHARPNESS Picture sharpness
COLOR
Color system
SYSTEM
ASPECT RATIO Aspect ratio
Color temperature of white
COLOR TEMP.
balance
4. If you want to set the other menu items, repeat
procedures 2 and 3.
5. Press the MENU button to quit.
MENU
8
• ASPECT RATIO
• COLOR TEMP.
performed after about 5 minutes.
Front panel Function
button displayed
∞
CHROMA/
PHASE
5
CONTRAST/
BRIGHT
Front panel Function
button displayed
VOLUME/ +
3
SELECT (+)
–
VOLUME/
2
SELECT (–)
Purpose
Front panel Function
button displayed
MENU EXIT
Contents
Forward selection mark (3)
Reverse selection mark (3)
Contents
Increase (to max. value)
Forward the setting value
Decrease (to min. value)
Reverse the setting value
Setting range
00 +1 +04 +05
4 – 3 16 – 9
9300 6500
Contents
Quit (or Release) the <MENU>
screen
<MENU> screen
<Front panel buttons>
1
Selection mark (3): Indicates the
menu item you select.
2
Menu item: Menu items you can
select.
3
Setting display: Indicates the current
settings (value).
4
Function display: The functions of
the front panel buttons (5 buttons on
the left) correspond to the function
displayed.
Function
Contents
displayed
∞
Forward the menu item.
5
Reverse the menu item.
– Lower the adjustment
value. (to the minimum)
+ Raise the adjustment
value. (to the maximum)
3
Forward the setting value.
2
Reverse the setting value.
EXIT Exits the <MENU> screen.
Notes:
÷ When the screen aspect ratio is set to
16 – 9 (16:9) in ASPECT RATIO, the
picture will be vertically reduced.
÷ When ASPECT REMOTE is set to
ON in the <SET-UP MENU> screen,
REMOTE is displayed in ASPECT
RATIO. ASPECT RATIO cannot be
set in the MENU when ASPECT
REMOTE is ON.
