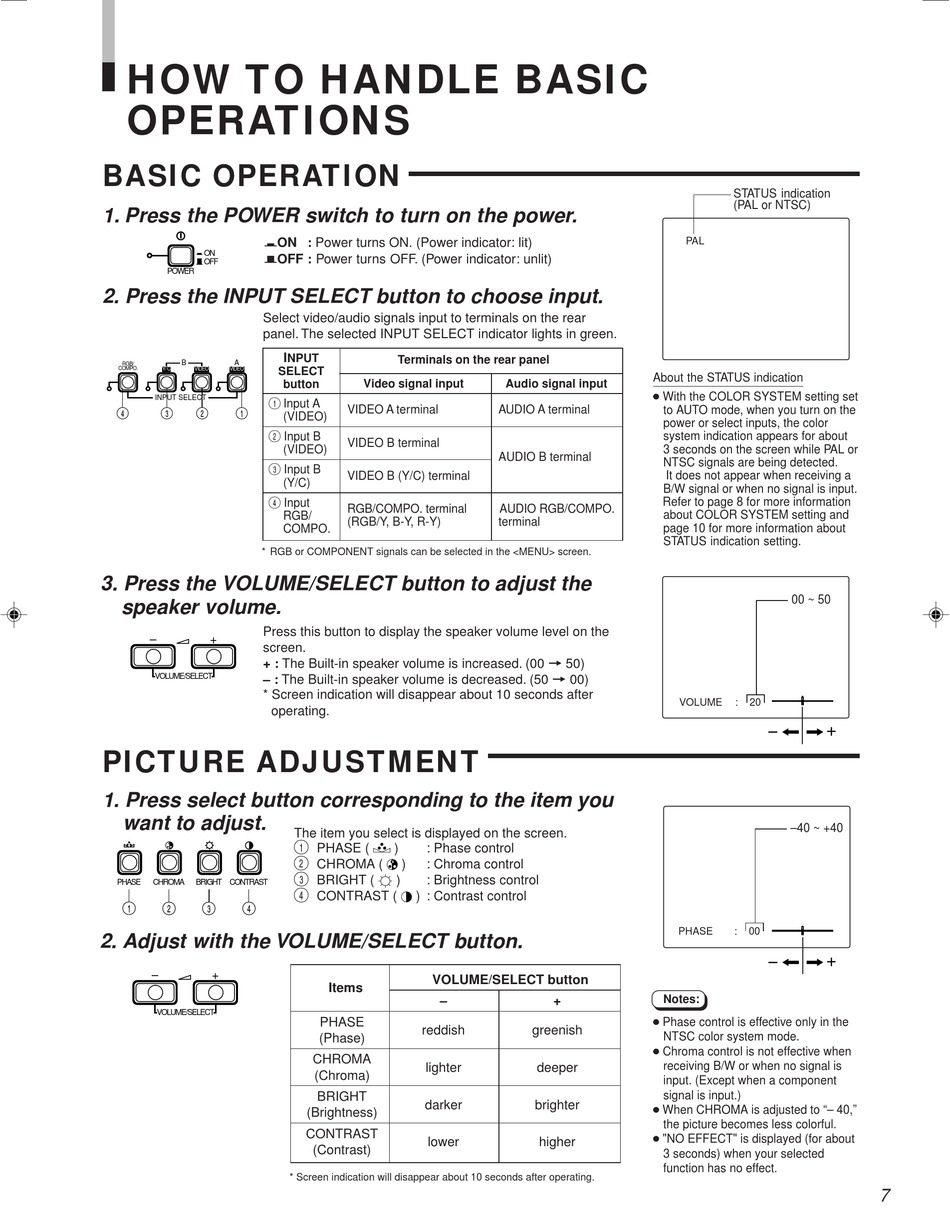

HOW TO HANDLE BASIC
OPERATIONS
BASIC OPERATION
1. Press the POWER switch to turn on the power.
gON : Power turns ON. (Power indicator: lit)
ON
GOFF : Power turns OFF. (Power indicator: unlit)
OFF
POWER
2. Press the INPUT SELECT button to choose input.
Select video/audio signals input to terminals on the rear
panel. The selected INPUT SELECT indicator lights in green.
B A
RGB/
COMPO. Y/ C VIDEO VIDEO
INPUT SELECT
* RGB or COMPONENT signals can be selected in the <MENU> screen.
3. Press the VOLUME/SELECT button to adjust the
speaker volume.
Press this button to display the speaker volume level on the
– +
screen.
+ : The Built-in speaker volume is increased. (00 = 50)
– : The Built-in speaker volume is decreased. (50 = 00)
VOLUME/SELECT
* Screen indication will disappear about 10 seconds after
PICTURE ADJUSTMENT
1. Press select button corresponding to the item you
want to adjust.
PHASE CHROMA BRIGHT CONTRAST
2. Adjust with the VOLUME/SELECT button.
– +
VOLUME/SELECT
I
NPUT
Terminals on the rear panel
SELECT
Video signal input
button
1
Input A
VIDEO A terminal
(VIDEO)
2
Input B
VIDEO B terminal
(VIDEO)
3
Input B
VIDEO B (Y/C) terminal
(Y/C)
4
Input
RGB/COMPO. terminal
RGB/
(RGB/Y, B-Y, R-Y)
COMPO.
operating.
The item you select is displayed on the screen.
1
PHASE ( ) : Phase control
2
CHROMA ( ) : Chroma control
3
BRIGHT ( ) : Brightness control
4
CONTRAST ( ) : Contrast control
VOLUME/SELECT button
Items
PHASE
reddish
(Phase)
CHROMA
lighter
(Chroma)
BRIGHT
darker
(Brightness)
CONTRAST
lower
(Contrast)
* Screen indication will disappear about 10 seconds after operating.
Audio signal input
AUDIO A terminal
AUDIO B terminal
AUDIO RGB/COMPO.
terminal
– +
greenish
deeper
brighter
higher
STATUS indication
(PAL or NTSC)
PAL
About the STATUS indication
● With the COLOR SYSTEM setting set
to AUTO mode, when you turn on the
power or select inputs, the color
system indication appears for about
3 seconds on the screen while PAL or
NTSC signals are being detected.
It does not appear when receiving a
B/W signal or when no signal is input.
Refer to page 8 for more information
about COLOR SYSTEM setting and
page 10 for more information about
STATUS indication setting.
00 ~ 50
VOLUME : 20
–
–40 ~ +40
PHASE : 00
–
Notes:
● Phase control is effective only in the
NTSC color system mode.
● Chroma control is not effective when
receiving B/W or when no signal is
input. (Except when a component
signal is input.)
● When CHROMA is adjusted to "– 40,"
the picture becomes less colorful.
● "NO EFFECT" is displayed (for about
3 seconds) when your selected
function has no effect.
+
+
7
