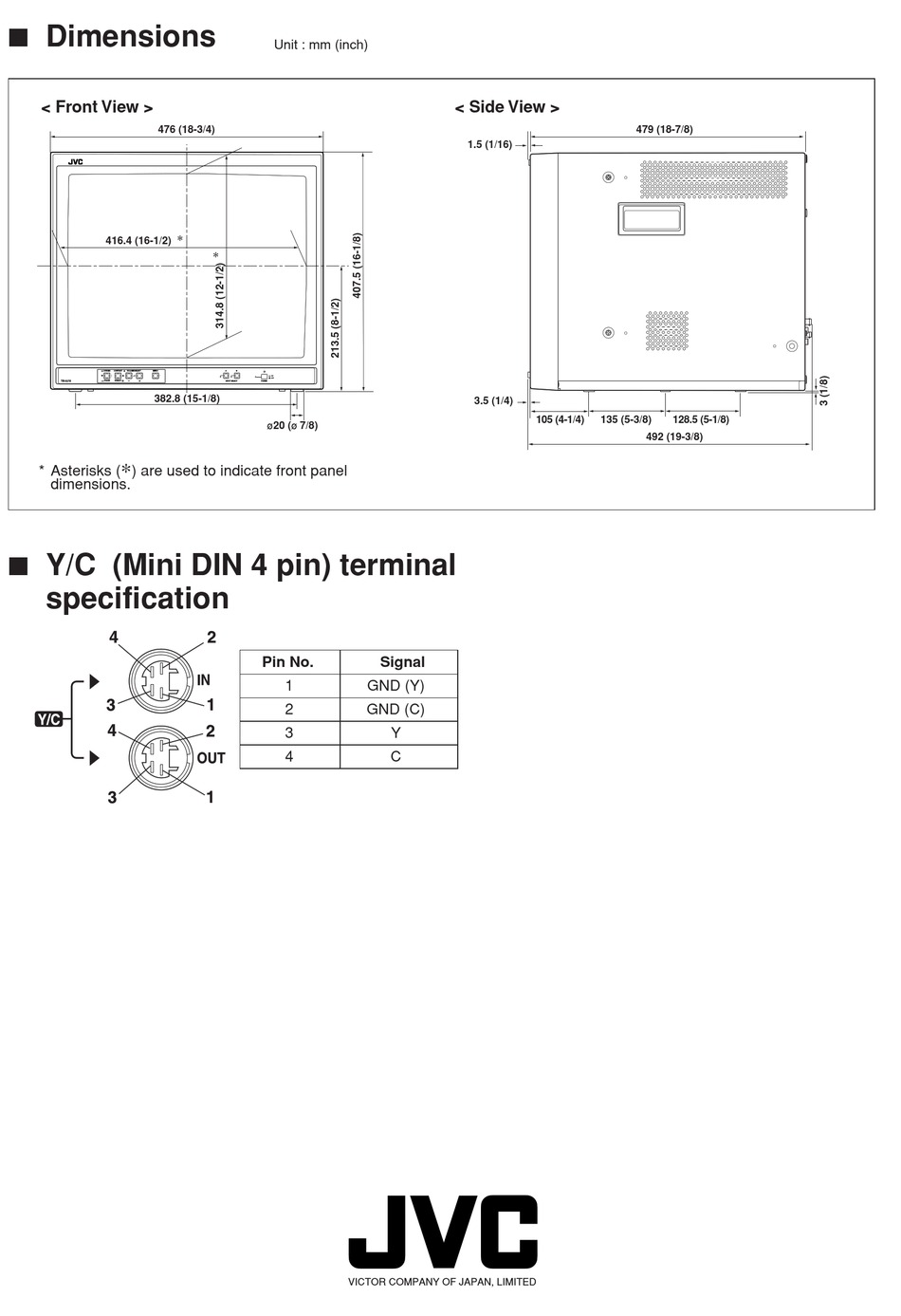

7 Dimensions
< Front View >
476 (18-3/4)
416.4 (16-1/2)
CHROMA CONTRAST VOLUME/SELECT MENU
PHASE BRIGHT
382.8 (15-1/8)
*
* Asterisks ( ) are used to indicate front panel
dimensions.
7 Y/C (Mini DIN 4 pin) terminal
specification
Unit : mm (inch)
*
*
A B
ON
OFF
INPUT SELECT POWER
20 ( 7/8)
Pin No.
1
2
3
4
< Side View >
1.5 (1/16)
3.5 (1/4)
Signal
GND (Y)
GND (C)
Y
C
VICTOR COMPANY OF JAPAN, LIMITED
479 (18-7/8)
105 (4-1/4) 135 (5-3/8) 128.5 (5-1/8)
492 (19-3/8)
