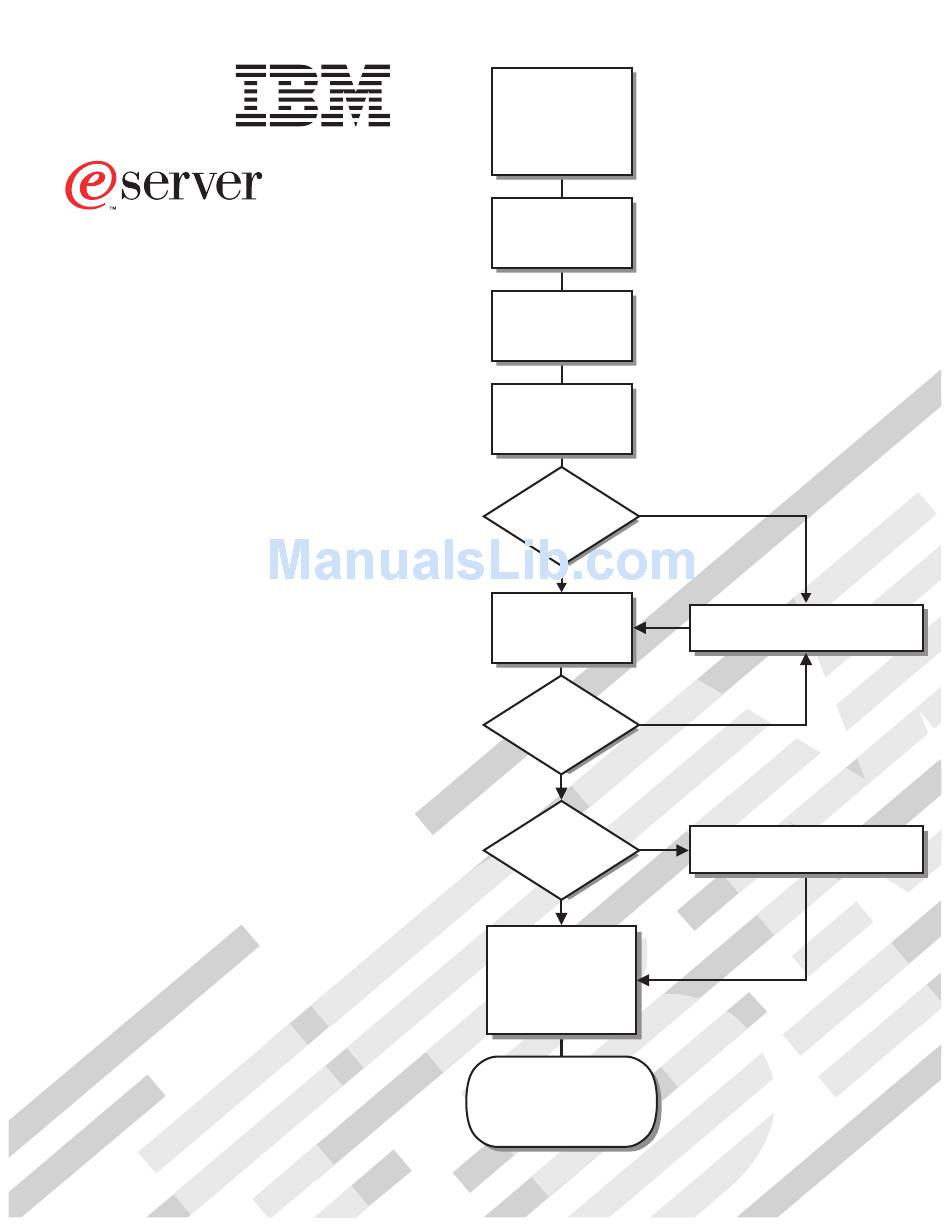

xSeries 365
Types 8861 and 8862

Installation Guide

Welcome. . .
Thank you for buying an
IBM xSeries server.
is based on the X-Architecture
technology, and it features
superior performance, availability,
and scalability.
Installation Guide
This server
contains information for setting
up and configuring your server.
For detailed information about
your server, view the publications
on the
Documentation CD.
You can also find the most
current information about your
server on the IBM Web site at:
http://www.ibm.com/pc/support
Your server
System is ready to use.
Go to the Server Support
and profile your server.
Install options:
• Drives
• Microprocessors
• Adapters
• Memory
• Power Supply
Install the server in
the rack, if required
Cable the server
and options
Start the server
No
Did the server
start correctly?
Yes
Use ServerGuide
to set up and
configure hardware
No
Did configuration
complete?
Yes
Use
No
ServerGuide to
install operating
system?
Yes
Install applications,
such as IBM systems
management software
and IBM ServeRAID
programs
flowchart to register
Go to the Server Support
flowchart
Go to the Web for instructions,
http://www.ibm.com/pc/support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 88625RX and is the answer not in the manual?

Questions and answers

Related Manuals for IBM 88625RX

Summary of Contents for IBM 88625RX

  • Page 1: Installation Guide

    Documentation CD. You can also find the most current information about your ServerGuide to Go to the Web for instructions, server on the IBM Web site at: install operating http://www.ibm.com/pc/support http://www.ibm.com/pc/support system? Install applications, such as IBM systems...

  • Page 2: Server Support

    Check all cables for loose connections and verify that all optional devices you ® installed are on the ServerProven list. You can view the ServerProven list at http://www.ibm.com/pc/compat/ View information about IBM support line at http://www.ibm.com/services/sl/products/ or view support telephone numbers at Problem http://www.ibm.com/planetwide/ solved?
  • Page 3 ERserver xSeries 365 Type 8861 and 8862 Installation Guide...
