2

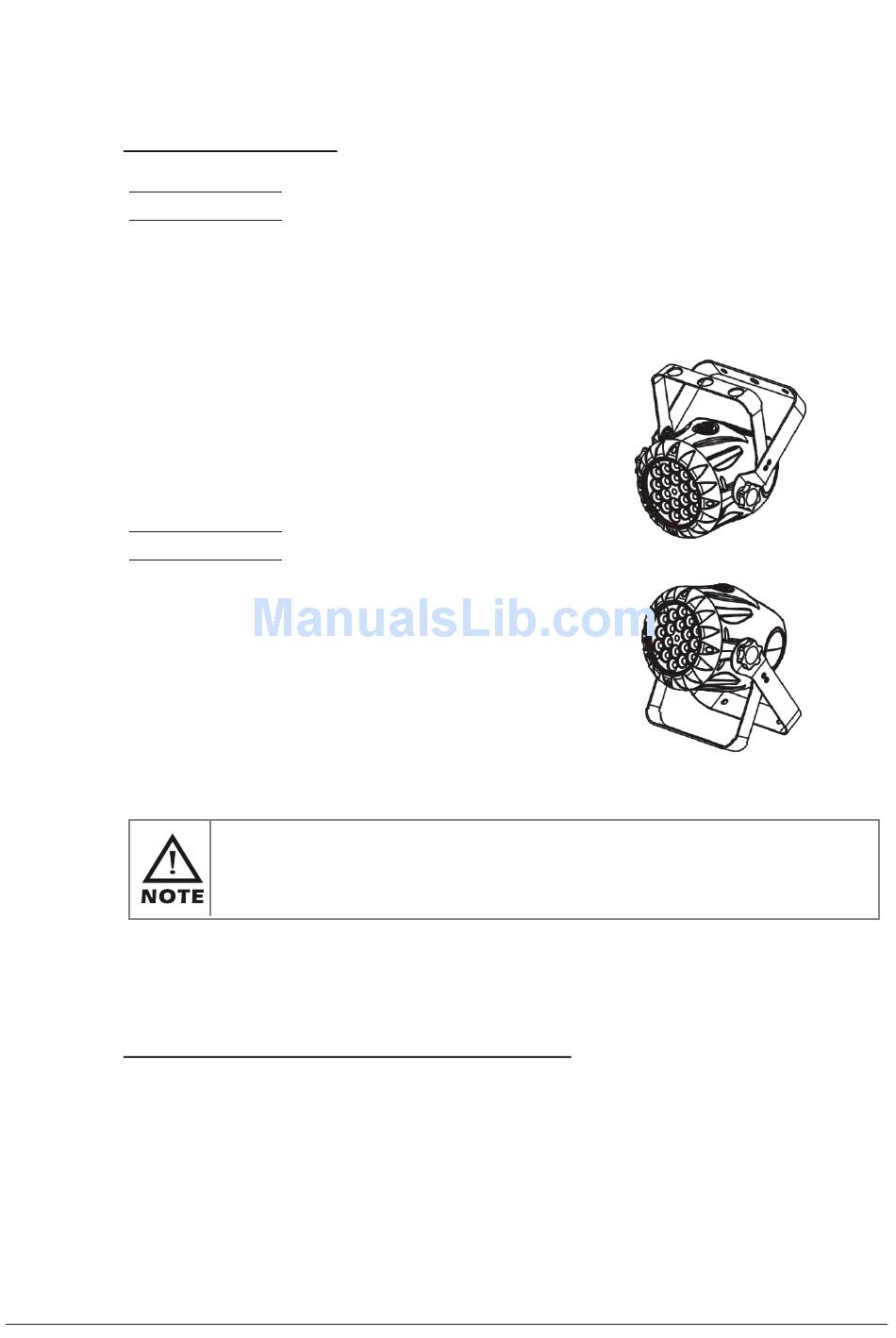

INSTALLATION
2.1
MOUNTING
HANGING
The LED PAR can be mounted in a hanging position using the
supporting bracket. The bracket should be secured to the mounting
truss or structure using a standard mounting clamp. Please note
that when hanging the unit a safety cable should also be used.
UPRIGHT
The LED PAR can be mounted in an upright or sitting
position using the supporting brackets.
2.2
POWER CONNECTIONS
@ 220V: 40 units may be connected in series
@120V: 20 units may be connected in series
Note: As this fixture's DMX signal cable connection had been changed to
Parallel connection, so if over 30 units to be connected, then a DMX signal
amplifier is needed.
2 INSTALLATION
The LED MODULE can be moun ted at any angle and in any
position. It is possible to further adjust the angle of the LED
MODULE using the two adjustment knobs located on the side of
the fixture.
5
2009.12.9
