Network Designer - Connecting Serial PPP Between Devices
Manually Connecting Serial PPP Between Devices
Note: If using the Add Connector Wizard, select Serial PPP to be guided through the process.
1. Left-Click on the Serial connection to add.
2. Select the "Point to Point Serial connection (serial cable)" option.

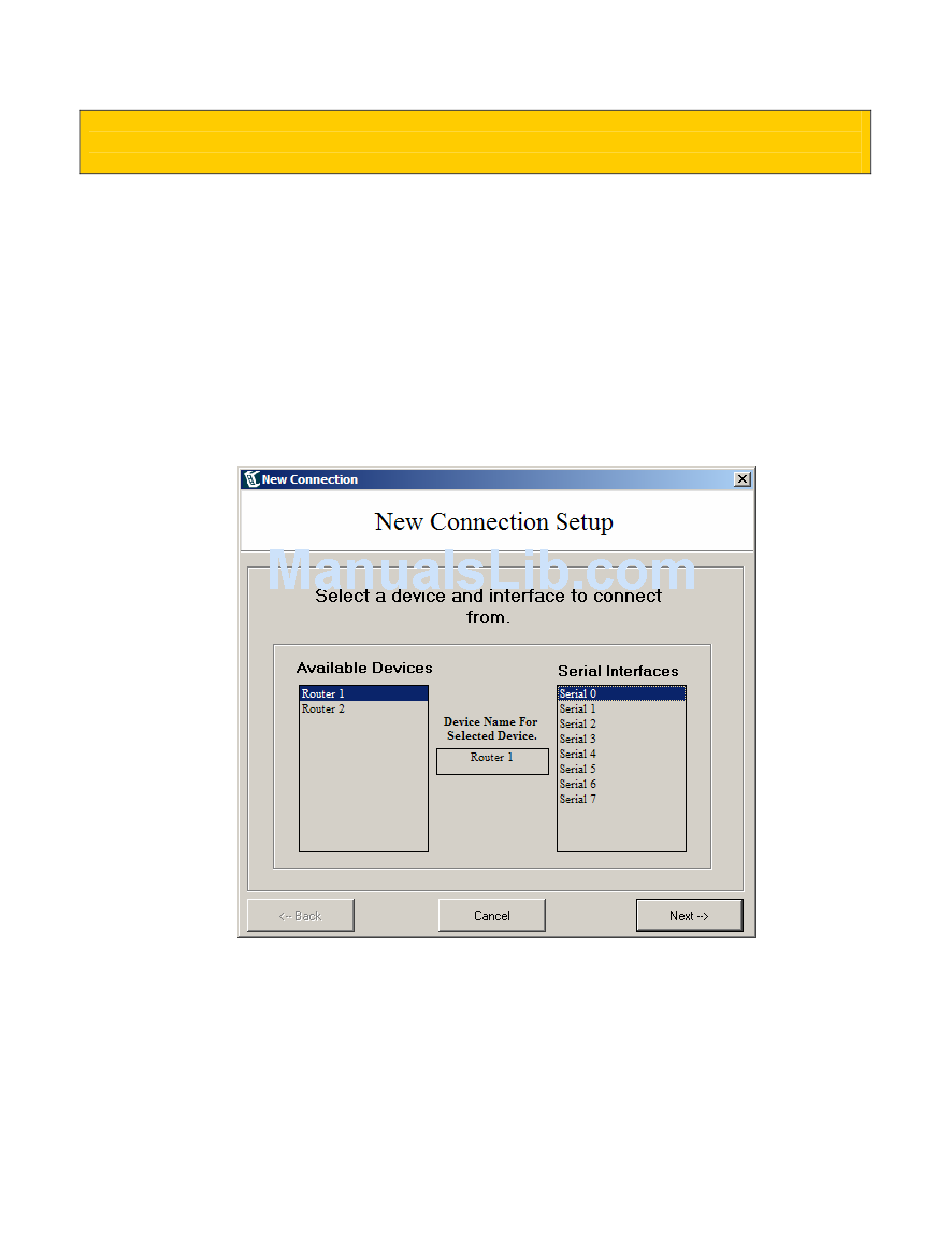

3. The New Connection box will appear, listing all Devices that have Serial ports correlating to
the Serial connection type that was selected.
4. Select a Serial-capable Device to connect from the Available Devices box
4. Select a Serial interface from the Interfaces box.
5. Repeat process for other devices
6. Click Finish when done.
