This will launch the NetMap Viewer application as a separate process, so you can ALT-TAB between
your network diagram and the other Cisco CCNA Network Simulator components. The default NetMap

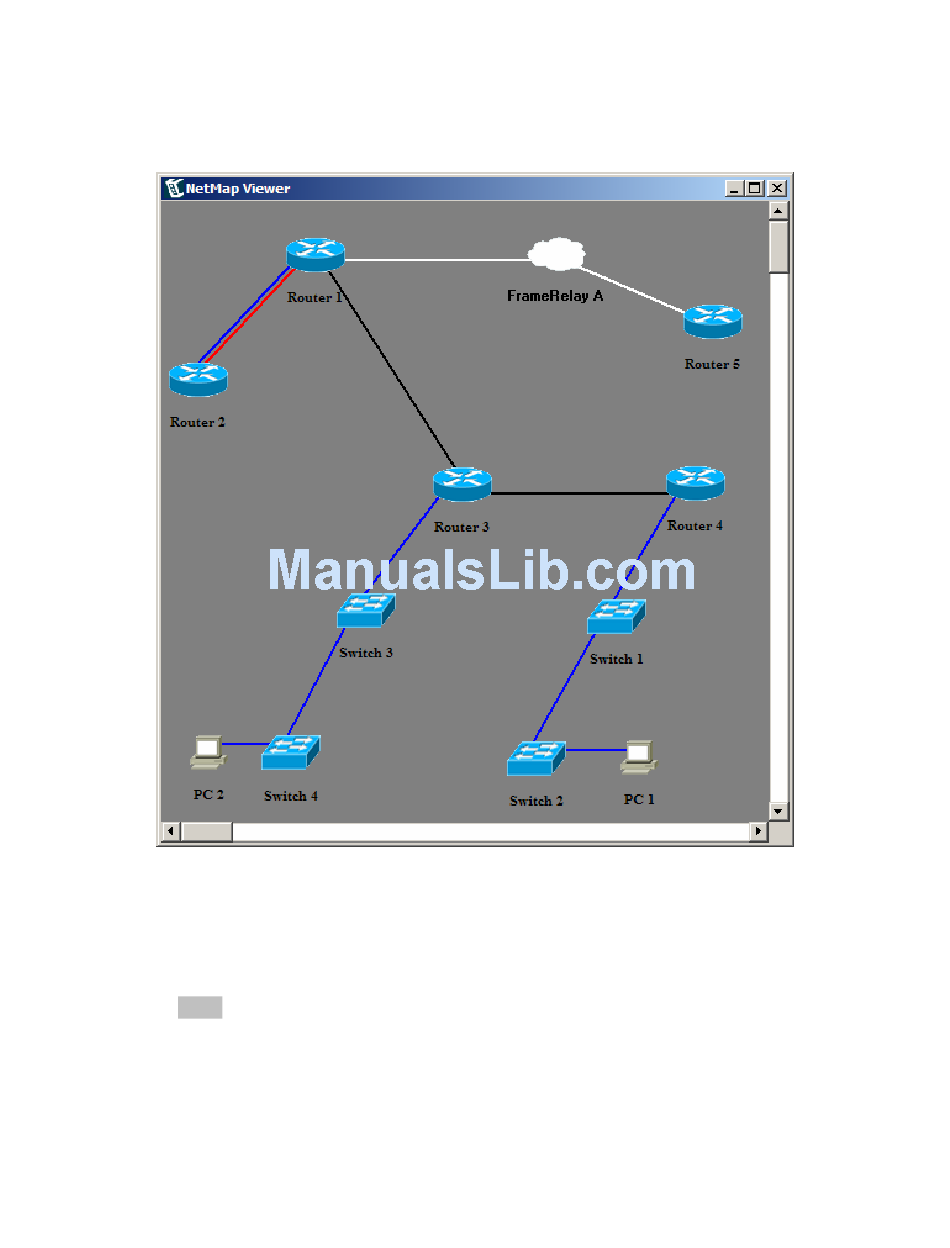

for the lab is shown below:
The NetMap Viewer, showing your Current Network Diagram
Color legend, as defined in the Cisco CCNA Network Designer
•
Blue is Ethernet
•
Red is ISDN/Dialup or PRI
•
Black is Serial PPP
•
White is Serial Frame
