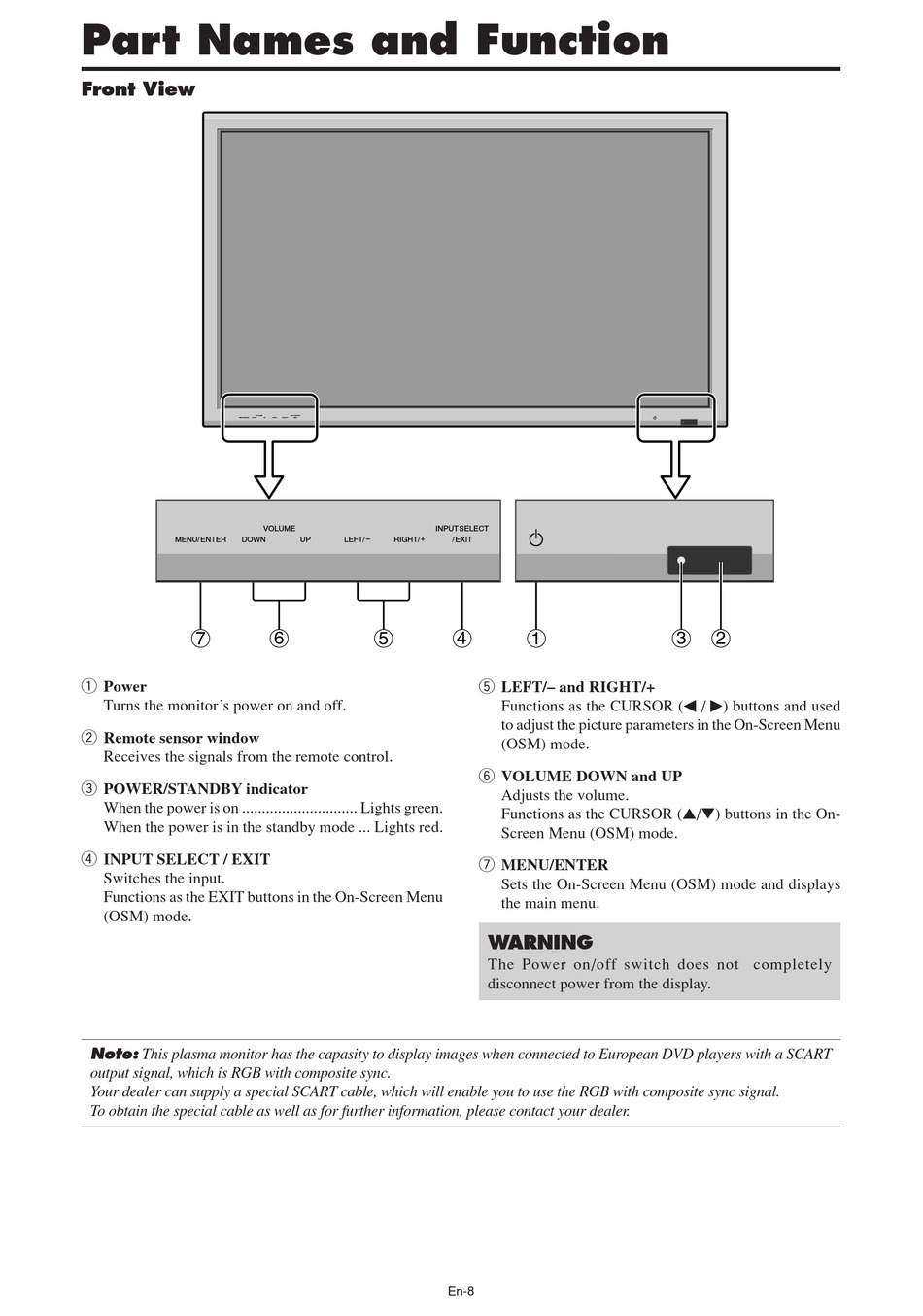

Part Names and Function

Front View

MENU/ENTER DOWN
MENU/ENTER DOWN
7
q Power
Turns the monitor's power on and off.
w Remote sensor window
Receives the signals from the remote control.
e POWER/STANDBY indicator
When the power is on ............................. Lights green.
When the power is in the standby mode ... Lights red.
r INPUT SELECT / EXIT
Switches the input.
Functions as the EXIT buttons in the On-Screen Menu
(OSM) mode.
Note: This plasma monitor has the capasity to display images when connected to European DVD players with a SCART
output signal, which is RGB with composite sync.
Your dealer can supply a special SCART cable, which will enable you to use the RGB with composite sync signal.
To obtain the special cable as well as for further information, please contact your dealer.
VOLUME INPUT SELECT
UP LEFT/- RIGHT/+ /EXIT
VOLUME
LEFT/ - RIGHT/ +
UP
6 5
INPUT SELECT
/EXIT
4 1
t LEFT/– and RIGHT/+
Functions as the CURSOR (
to adjust the picture parameters in the On-Screen Menu
(OSM) mode.
y VOLUME DOWN and UP
Adjusts the volume.
Functions as the CURSOR (L/M) buttons in the On-
Screen Menu (OSM) mode.
u MENU/ENTER
Sets the On-Screen Menu (OSM) mode and displays
the main menu.
WARNING
The Power on/off switch does not completely
disconnect power from the display.
En-8
