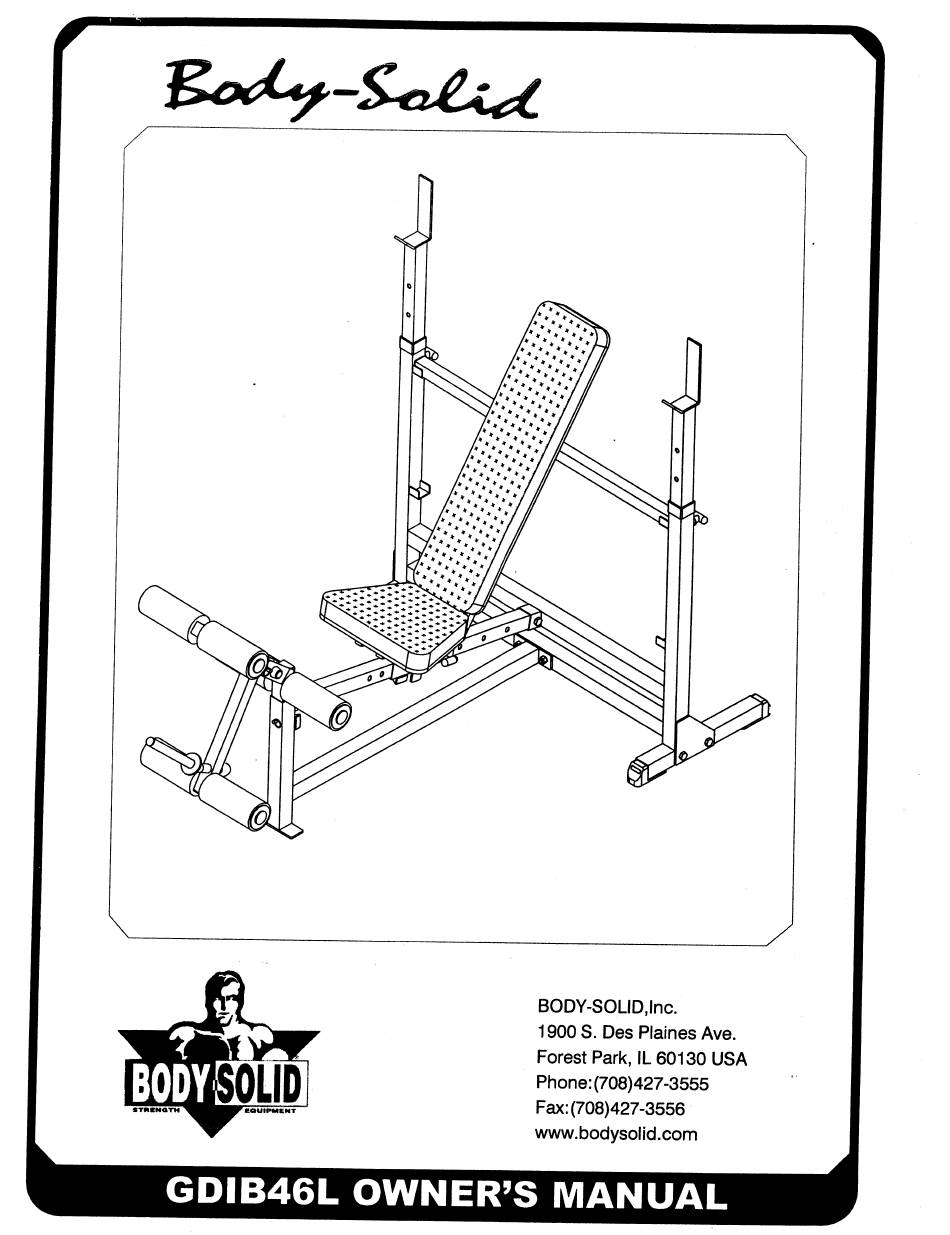

- Page 1 BODY-SOLID,lnc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA BODY eou•PMLNT www.bodysolid.com GDlB46L OWNER'S MANUAL...
- Page 2 GDlB46L ASSEMBLY INSTRUCTIONS TABLE OF CONTENTS General Instructions Training Tips and Safety Information Inspection and Maintenance Schedule Hardware Illustration Parts Illustration Assembly ( Step 1 ) Assembly (Step 2 9-10 Assembly ( Step 3) 11-12 GDIB46L-062005 Page 1...
- Page 3 GDlB46L ASSEMBLY INSTRUCTIONS GENERAL INSTRUCTIONS Thank you for purchasingthe Body-Solidequipment.At Body-solid,our goal is to ensure customer satisfaction. If you have any questions about these instructions or have any problemswith assembly or parts for this machine, please call our Customer Service Department at 1-800-556-...
- Page 4 GDlB46L ASSEMBLY INSTRUCTIONS TRAINING TIPS SAFETY INFORMATION Before starting any exercise program, it is recommended that you consult your physician and get a complete physical examination. There is a risk assumed by individuals who use this type of equipment. To minimize risk,...
- Page 5 GDIB46L ASSEMBLY INSTRUCTIONS INSPECTIONS MAINTENANCE SCHEDULE There is a risk assumed by individuals who use this type of equipment. minimize risk, follow the rules below. • Inspect equipment daily, ensuring that all nuts, bolts and screws are fully tightened. • Inspect cables daily ensuring they are routed properly and not worn, frayed or stretched.
- Page 6 GDlB46L ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION Qty. A1. M12X75 HEX HEAD BOLT ----------------[6PCS] A2. M8X45 HEX HEAD BOLT —-——----—-—-———[IOPCS] A3. 1/2"X85 HEX HEAD BOLT ---- -[IPCSJ A4. M12X70 HEX HEAD BOLT ----------------[IPCS] Bl.M12NYLONLOCKNUT [7PCS] B2. 1/2" NYLON LOCK NUT — [l PCS] Cl.
- Page 7 GDlB46L ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION A [1 PCS] F [2PCS] C [1PCS] H [2PCS] G [IPCS] D [2PCS J [IPCS] I [IPCS] E [2PCSl L [1PCS] M [2PCS] 41"X1.6X483L N [IPCS] 41"X1.6X493L GDIB46L-062005 Page 6...
- Page 8 GDIB46L ASSEMBLY INSTRUCTIONS ASSEMBLY- STEP **Note: DoNotfullytightenframeboltsandnutsuntilaftercompleting Step1 Thefollowing Partsand Hardwarewill be neededto completeStep 1 Parts Description Hardware Description Part Part Description Part Part Description Back Cross Frame M12 x 75 hex head bolt Middle Frame M12 x 70 hex head bolt Seat Carriage M12 nylon lock nut Bottom Support Frame...
- Page 9 GDlB46L ASSEMBLY INSTRUCTIONS ASSEMBLY- STEP THERE A RISK ASSUMED INDIVIDUALS THIS TYPE EQUIPMENT. TO MINIMIZE RISK. YOU MUST FOLLOW THESE RULES. Inspect equipment before each workout. Checke that all nuts, bolts. screws and pop pins are in place and fully tightened.
- Page 10 GDlB46L ASSEMBLY INSTRUCTIONS ASSEMBLY- STEP **Note : Do Not fully tighten frame bolts and nuts until after completing Step 2 The following Parts and Hardware will be needed to complete Step 2 Parts Description Hardware Description Part Part Description Part...
- Page 11 GDlB46L ASSEMBLY INSTRUCTIONS ASSEMBLY- STEP D3X2 D2X2 D6X2 DIOX2 Page 10 GDlB46L-062005...
- Page 12 GDlB46L ASSEMBLY INSTRUCTIONS ASSEMBLY- STEP **Note : Do Not fully tighten frame bolts and nuts until after completing Step 3 The following Parts and Hardware will be needed to complete Step 3 Parts Description Hardware Description Part Part Description Part Description...
- Page 13 GDlB46L ASSEMBLY INSTRUCTIONS ASSEMBLY- STEP Dl 5X3 DidX3 D15X3 Dl 8X3 Dl 9X3 Page 12 GDIB46L-OG2005...
