Connecting The Vehicle Speed Pulse - Eclipse AVN 2227P Installation Manual

Connecting the v
Connecting the v
• • Check the vehicle speed pulse signal carefully before making the connections. If the cables are incorrectly
connected, accidents or problems with correct operation may result.
• • The label on the vehicle speed pulse signal cable contains a protection circuit, so do not cut the cable or remove
the protective circuit, otherwise problems with operation may result.
Tip
The locations where the vehicle speed pulse signal cable may vary depending on the vehicle model and grade. Ask
the car dealer or your nearest Eclipse dealer for details.

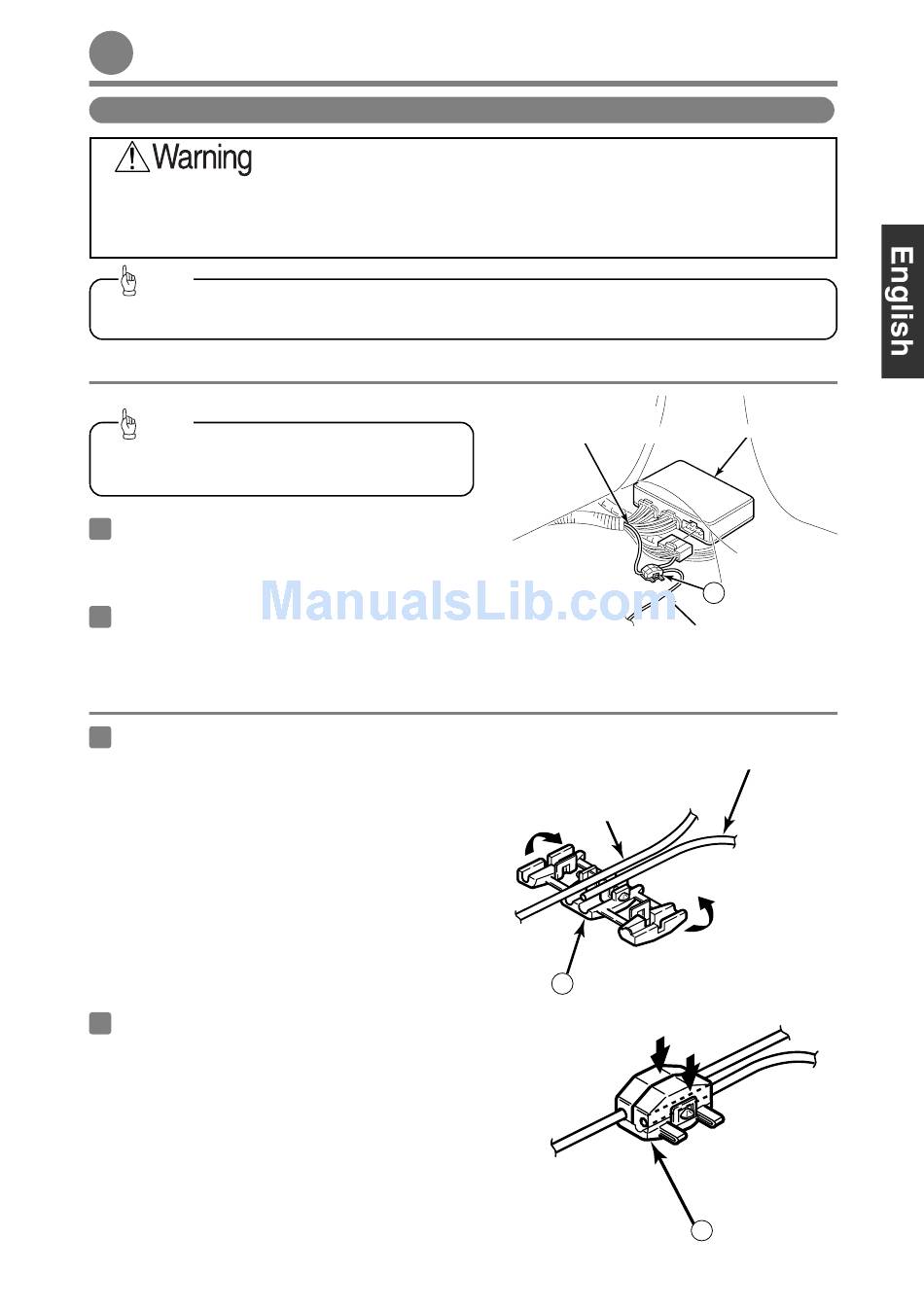

- Connecting point for the vehicle speed pulse signal (example) -
Tip
Always be sure to connect the vehicle speed pulse,
otherwise the measurement precision will be greatly
reduced.
1
Use a splicing connector to connect the vehicle speed
pulse signal cable (purple/white) coming from the main
unit to the vehicle speed pulse signal cable of the
vehicle.
2 Route the vehicle speed pulse signal cable to the main
unit.
- Using the splicing connector -
1
Insert the connection cable [vehicle speed pulse signal
cable (purple/white)] from the main unit and the vehicle
cable into the splicing connector.
2 Press down the cover of the splicing connector and
squeeze it until it locks.
ehicle speed pulse
ehicle speed pulse
Notes on installation
Vehicle speed pulse
signal cable (vehicle harness)
- 7 -
Engine computer
6
Vehicle speed pulse signal
cable (purple/white) of
connection cable
Vehicle speed pulse signal cable
(purple/white)
Harness in the car
6
Lock
6
