Eclipse AVN 2227P Installation Manual page 12

If installing using the 2DIN installation kit (sold separately)
Tip
Refer to the instructions provided with the kit (sold separately) for details on the installation method.

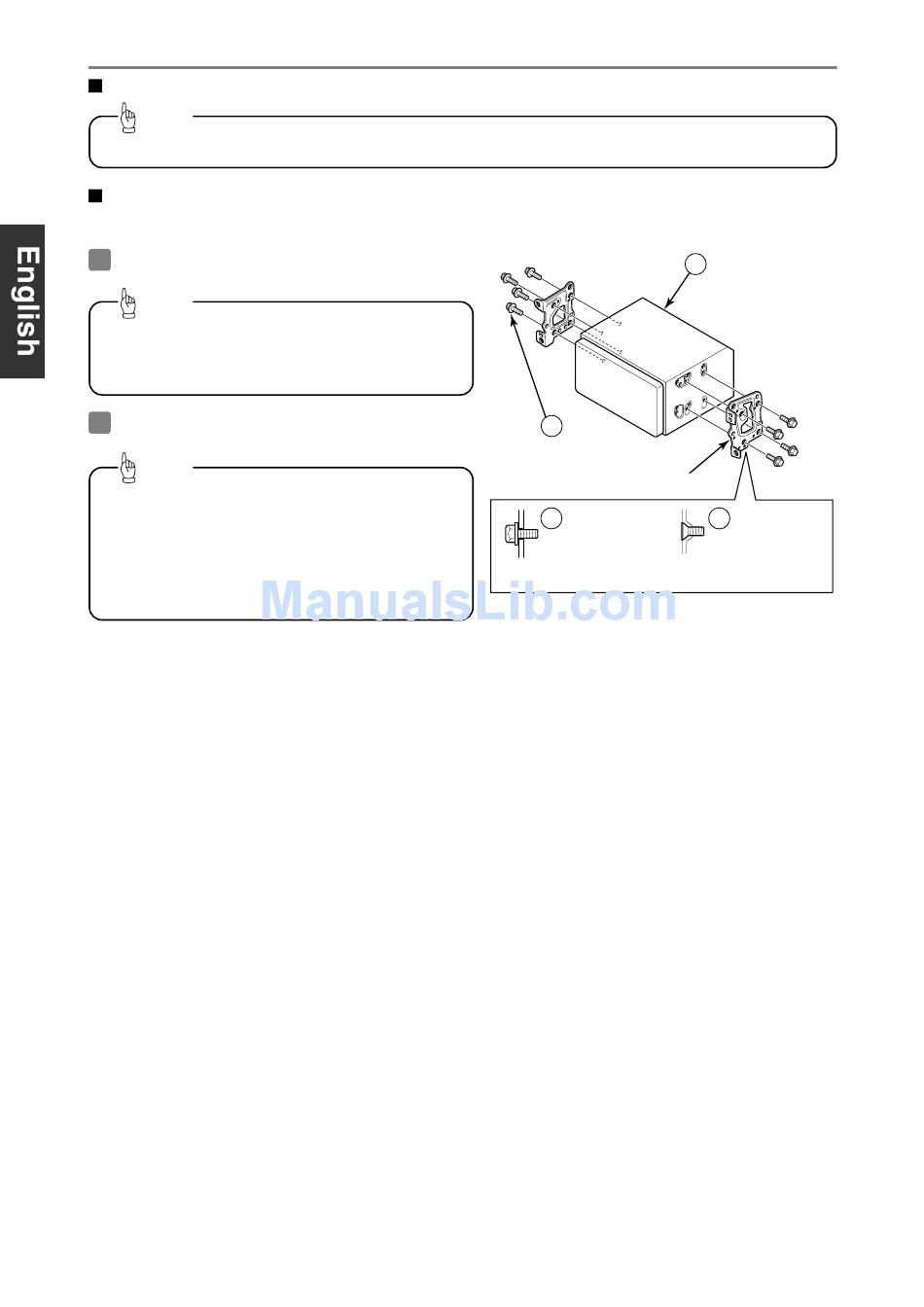

If installing using the existing vehicle bracket and a multi-purpose bracket
(such as for Japanese vehicles)
6
Attach the brackets to the main unit.
Tip
Be sure to use the supplied accessory mounting screws
(Red: M5 x 8) as the mounting screws. If any other
screws are used, they may damage the inside of the
main unit.
7 Install the main unit in the vehicle.
Tip
• • If using hexagonal head bolts (Red: M5x8), use the four
hexagonal head bolts (Red: M5x8) which were used to
install the carrying bracket and the four accessory
hexagonal head bolts (Red: M5x8).
• • Be careful not to forcefully push on the main unit's
display or buttons during installation. This may result in
damage to the main unit.
x 8
4
4
Hex-head bolt
(Red:M5 x 8) x 8
Select the screws in accordance with the shapes
of the screw holes in the mounting bracket.
"ECLIPSE" is a registered trademark of
FUJITSU TEN LIMITED in 54 countries.
- 12 -
1
Mounting bracket
5
Flathead screw
(Red:M5x8) x 8
