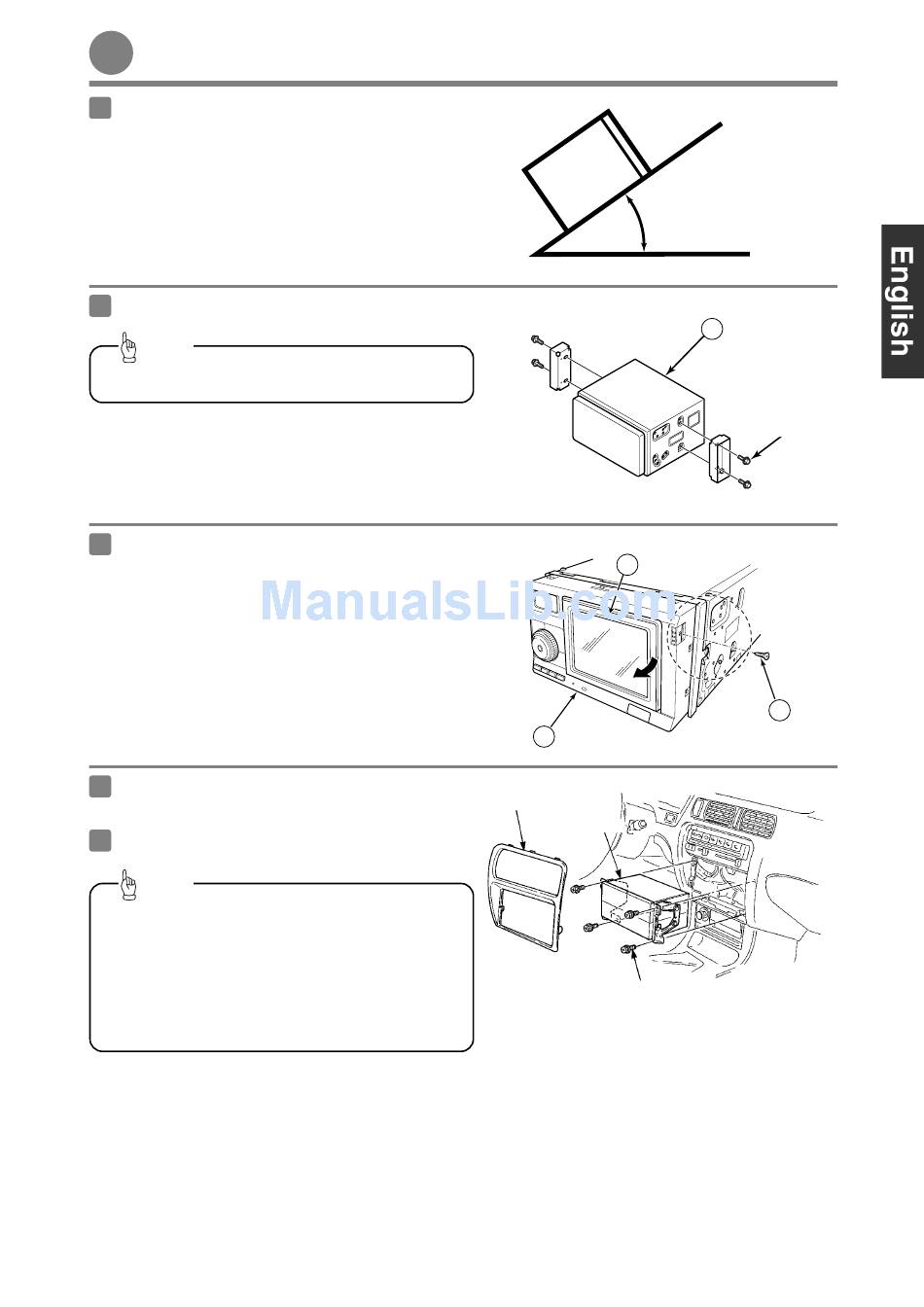

Installing the main unit

Installing the main unit
1
To maintain proper function, the unit must be mounted
less than 30 degrees. If the angle is in excess of 30
degrees, CD skipping and improper CD ejection may
occur.
2
Remove the carrying bracket.
Tip
The hexagonal head bolts (Red) which are removed
may be used again later when reinstalling.
3
When it is not required to detach the PND from the
main unit, use the provided screw to attach the control
panel to the main unit.
4
Remove the pocket and any other accessories from the
centre cluster to make room for the main unit.
5
Remove the mounting brackets for the pocket.
Tip
• • Carefully bind any excess length of cable that is
connected to the main unit and secure it to an area of
empty space in the vehicle so that it does not move
around or get caught in the main unit or vehicle-side
equipment. If the cables are not handled correctly,
operating problems or short-circuits may occur, and this
may result in the danger of fire or other accidents.
• • Connect all cables before installing the main unit.
1
Centre cluster panel
Pocket, etc
Mounting bolts
- 11 -
Front
30˚ or less
Level (reference)
1
The hexagonal
head bolts
(Red) x4
