TJERNLUND PRODUCTS, INC.
1601 Ninth Street • White Bear Lake, MN 55110-6794
PHONE (800) 255-4208 • (651) 426-2993 • FAX (651) 426-9547
Visit our web site • www.tjernlund.com
CRAWL SPACE VENTILATOR MODELS V1, V1D, V2D
READ OWNERS INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION.
THESE INSTRUCTIONS MUST REMAIN WITH EQUIPMENT. DO NOT DESTROY.

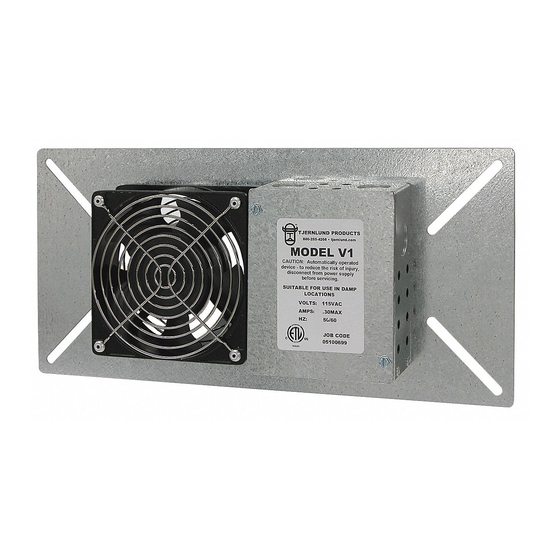

MODEL V1
The Tjernlund UnderAire™ Series Crawl Space Ventilators are designed to circulate fresh outdoor air underneath homes
and porches. Excessive humidity levels in Crawl Spaces is the leading cause of premature rotting of support columns,
joists, floors and beam supports. Humidity can promote fungus growth and increased termite activity. Humidity may also
cause plumbing failures due to rust and corrosion. Constant operation helps vent radon gases, treated wood off-gassing
and other odors that might migrate into living areas.
All Ventilator models are equipped with a factory installed and pre-wired thermostat which will prevent operation of the fan
below 35°F. Deluxe models (V1D & V2D) are controlled by a dehumidistat which actuates the fan if the relative humidity
rises above the selected set-point.
MODEL V1 Ventilator:
Capacity:
110 CFM
Motor:
115 Volts ~ 50/60 Hz
0.30 amps maximum
Thermostat: On at 50°F
Off at 35°F
Dimensions: 14 3/8" x 6 7/8" x 2"
Each UnderAire™ Crawl Space Ventilator is electrically factory line tested before shipment.
After opening carton, inspect thoroughly for shipment damage. Fan should rotate freely and all electrical wires and connec-
tions should be secured. If any damage is found, notify freight carrier and your distributor immediately and file a concealed
damage claim.
Calculate the cubic area of the crawl space by multiplying the length x width x height. Divide this number by 15 to determine
the minimum CFM necessary to fully ventilate the space in 15 minutes. Example: 20' wide x 40' long x 3' high crawl space =
2,400 cubic ft. 2400 cubic ft. divided by 15 minutes = 160 CFM of ventilation. Choose two V1 or V1D ventilators or one V2D
ventilator.
©2006 TJERNLUND PRODUCTS, INC. ALL RIGHTS RESERVED
MODEL V1D
DESCRIPTION
SPECIFICATIONS
MODEL V1D Ventilator:
Capacity:
110 CFM
Motor:
115 Volts ~ 50/60 Hz
0.30 amps maximum
Thermostat: On at 50°F
Off at 35°F
Dehumidistat: 20% - 80% RH Range
Dimensions: 18" x 9" x 2"
GENERAL INFORMATION
RECOMMENDED VENTILATION RATE
MODEL V2D
MODEL V2D Ventilator:
Capacity:
220 CFM
Motors:
2 @ 115 Volts ~ 50/60 Hz
0.60 amps maximum
Thermostat: On at 50°F
Off at 35°F
Dehumidistat:
20% - 80% RH Range
Dimensions: 18" x 9" x 2"
P/N: 8504129
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TJERNLUND V1, V1D, V2D CRAWL SPACE VENTILATORS 8504129
Summary of Contents for TJERNLUND V1, V1D, V2D CRAWL SPACE VENTILATORS 8504129
- Page 1 MODEL V1D DESCRIPTION The Tjernlund UnderAire™ Series Crawl Space Ventilators are designed to circulate fresh outdoor air underneath homes and porches. Excessive humidity levels in Crawl Spaces is the leading cause of premature rotting of support columns, joists, floors and beam supports. Humidity can promote fungus growth and increased termite activity. Humidity may also cause plumbing failures due to rust and corrosion.
- Page 2 Electrical Code. Improper installation can create a hazardous condition such as fire, electric shock or personal injury. To reduce these risks significantly, use this unit only in the manner intended by the manufacturer. If you have questions, contact Tjernlund Products. Always disconnect the Crawl Space Ventilator from its power source before installation and servic- ing.
- Page 3 WIRING WIRING A SINGLE MODEL V1 120 VAC GROUND 50/60 Hz T-STAT OPTIONAL SWITCH V1 ELECTRICAL BOX 8050001 PROVIDED BY INSTALLER WIRING MULTIPLE MODEL V1’s 120 VAC GROUND 50/60 Hz T-STAT OPTIONAL SWITCH V1 ELECTRICAL BOX PROVIDED BY INSTALLER T-STAT V1 ELECTRICAL BOX 8050002 MODEL V1D INTERNAL WIRING...
