TJERNLUND DRAFT INDUCER DJ-3, D-3, I, IL, HD 8506000 REV C 1105 Specifications

TJERNLUND PRODUCTS, INC.
1601 Ninth Street • White Bear Lake, MN 55110-6794
PHONE (800) 255-4208 • (651) 426-2993 • FAX (651) 426-9547
Visit our web site • www.tjernlund.com
GAS FIRING
GAS FIRING
PIPE WITH
SIZE
WITH
BAR. DRAFT
IN.
DRAFT HOOD
CONTROL
MODEL
NO. HEATER HEATER
BTU BTU
INPUT INPUT
FLUE GAS FLUE GAS
S.P. CFM S.P.
DJ-3

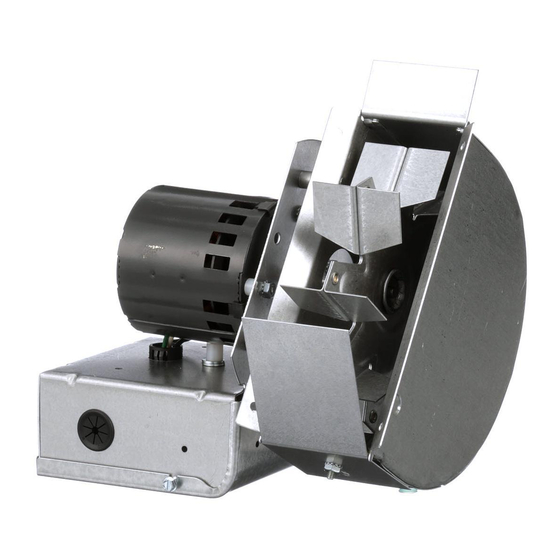

MODEL DJ-3 DRAFT INDUCER

OIL FIRING
WITH
BAR. DRAFT
CONTROL
HEATER
BTU
INPUT
FLUE GAS
CFM S.P. CFM

SPECIFICATIONS

Performance Curves

1. Inputs shown are believed to be
maximum capacities for inducers when
mounted on pipe sizes shown for
ordinary jobs where a moderate amount
of mechanical induced draft is required.
2. Consideration is given to typically
higher static pressure requirements for
larger installations, for the type of fuel
burned and for the type of draft control
installed.
3. Where pressure requirements are
unknown or believed to be unusually
severe, ask for complete performance
curves or consult factory.
4. All ratings have been developed in our
testing and research department and
have been approved by a nationally
known independent testing laboratory.
Certification is available upon request.
5. Heating capacities shown are for 1000
BTU per cubic foot natural gas and for
139,000 BTU per gallon No. 2 fuel oil.
Consult factory for capacities with other
fuels. Heating capacities are based on
typical combustion efficiencies and
allow for approximately 5 percent
ambient air drawn into inducer to
cool motor and drives.
6. Draft Inducers should be installed
in single wall vent pipe in order
to insure proper performance.
Note: Tjernlund Products, Inc. reserves the
right to make changes to specifications without
notification.

MOTOR SPECIFICATIONS

ELECTRICAL DATA

Volts 115
Hertz 60
RPM 1550
Watts 35
Amps .43
Therm. Prot. Imp. Prot.
P/N 8506000
REV. C 11/05
