Mirrored
LAG
STP Mode Select the Spanning Tree Protocol (STP) Administrative Mode for the port or LAG.
The possible values are Enabled and Disabled.
Admin Mode
Use the pull-down menu to select the port control administration state. You must
select Enabled if you want the port to participate in the network. The factory default
is Enabled.
Flow Control Mode
Use the pull-down menu to Enable or Disable flow control for the port. The factory
default is Disabled.
LACP Mode
Selects the Link Aggregation Control Protocol administration state. The mode must
be Enabled in order for the port to participate in Link Aggregation. It may be
Enabled or Disabled by selecting the corresponding line on the pull-down entry
field. The factory default is Enabled.
Physical Mode
Use the pull-down menu to select the port's speed and duplex mode. If you select
auto the duplex mode and speed will be set by the auto-negotiation process. Note
that the port's maximum capability (full duplex and 100 Mbps) will be advertised.
Otherwise, your selection will determine the port's duplex mode and transmission
rate. The factory default is auto. You can only use this menu for the external ports.
Physical Status
Indicates the port speed and duplex mode. This field only displays if the Link Status
is Up.
64
Port being mirrored.

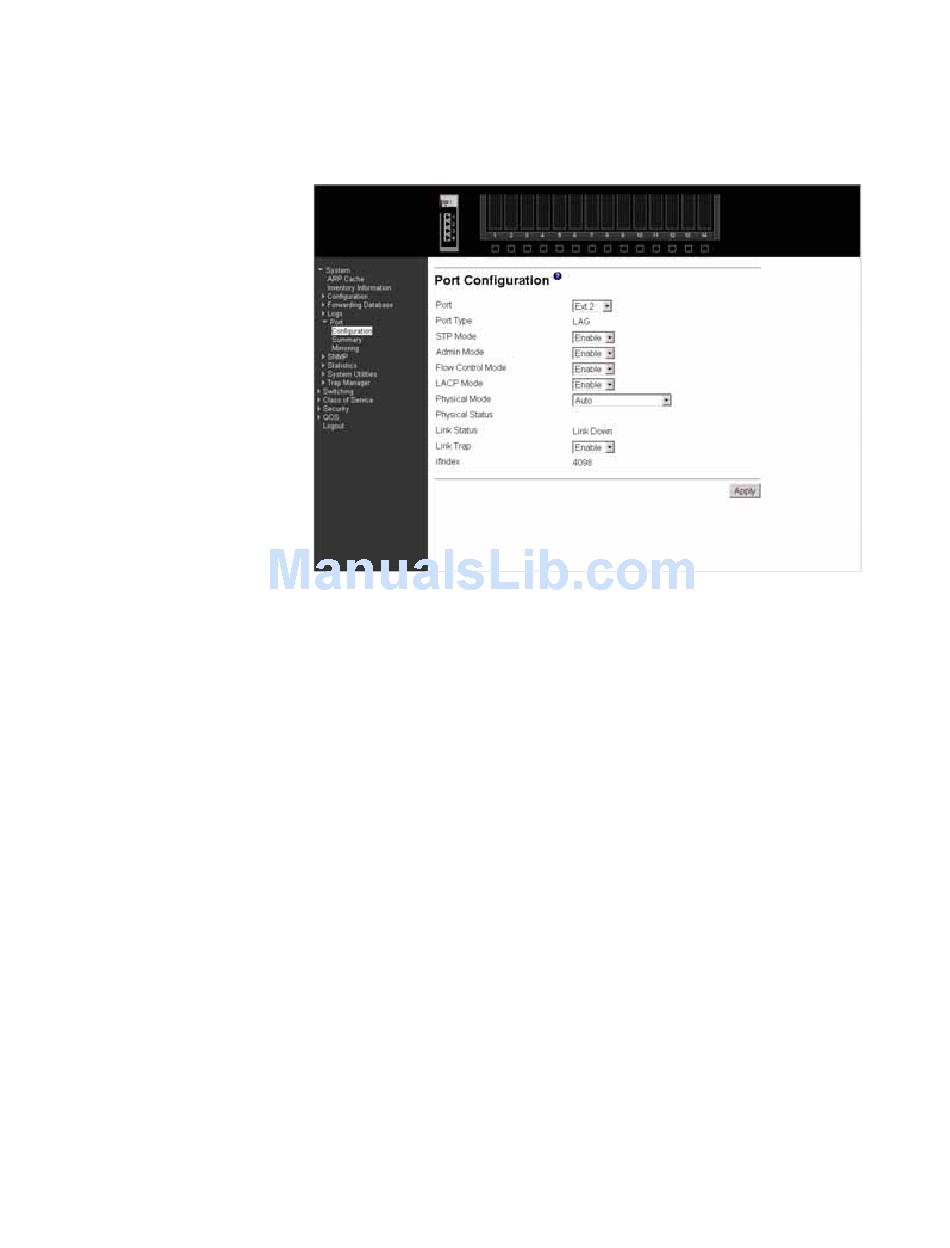

Member of a Link Aggregation (LAG) trunk. Following is how this panel
displays when the port type is LAG.
