• Spanning tree
VLAN
This menu provides access to Virtual Local Area Network (VLAN) configuration, displays status
and displays summary information. Menu options are:
• Configuration
• Status
• Port configuration
• Port summary
• Reset configuration
Configuration

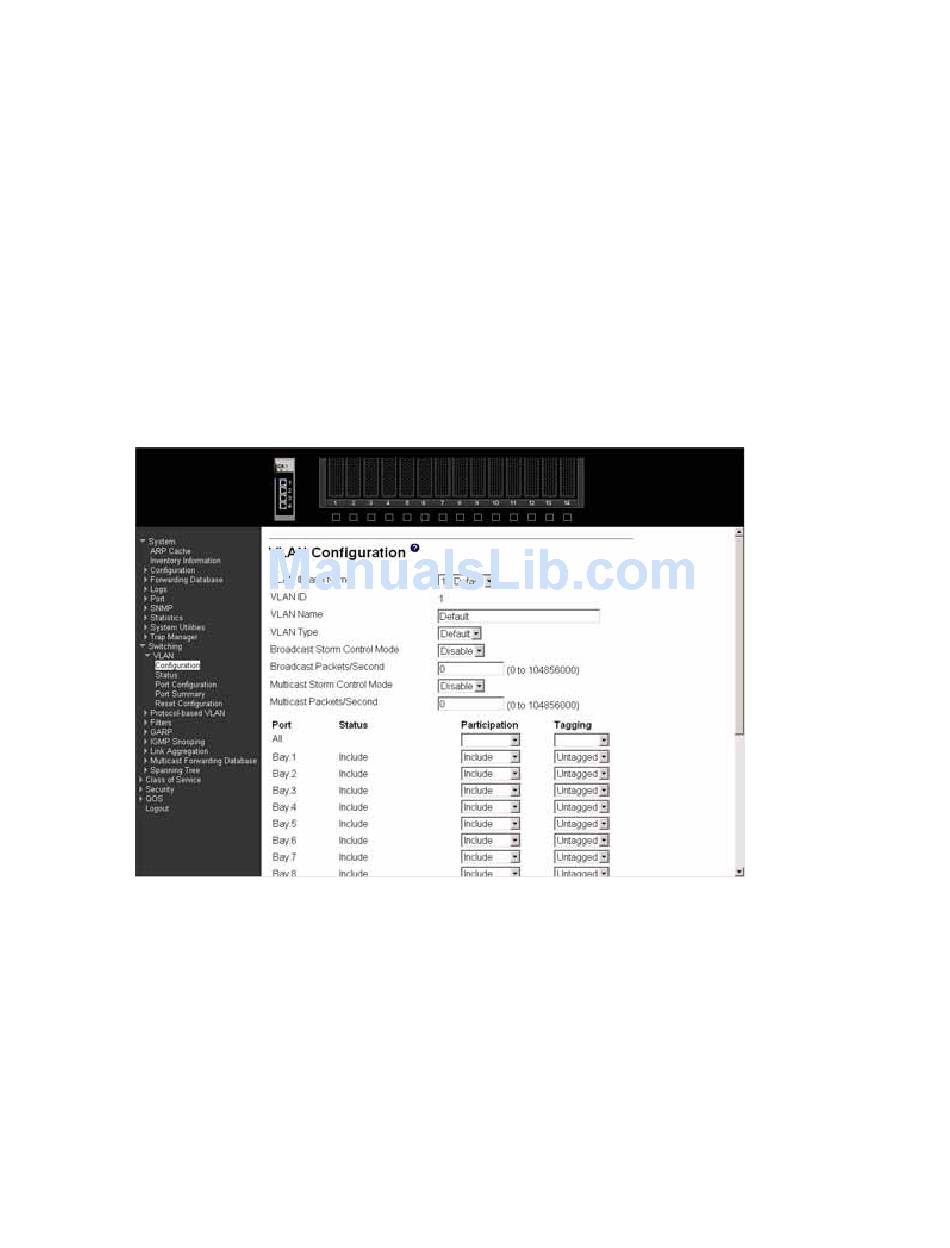

This panel displays detailed information, including interface information, for a specific VLAN. You
also use it to create new VLANs.
VLAN ID and Name
Select the VLAN to display from the pop-down menu, or select Create to set up a
new VLAN. When Create is selected the VLAN ID field changes from non-
configurable to configurable.
VLAN ID There is a VLAN Identifier (VLAN ID) associated with each VLAN. Use this field
to create a new VLAN and assign it an ID. The ID is a number in the range of 2 to
4094 (ID 1 is reserved for the default VLAN).
VLAN Name
A string associated with this VLAN as a convenience. It can be up to 16
alphanumeric characters long, including blanks. The default is blank. VLAN ID 1
92
Intel® Blade Server Ethernet Switch Module IXM5414E
