Backend State
Displays the current state of the backend authentication state machine. Possible
values are:
•
•
•
•
•
•
•
Click the Refresh button to update the information on the page.

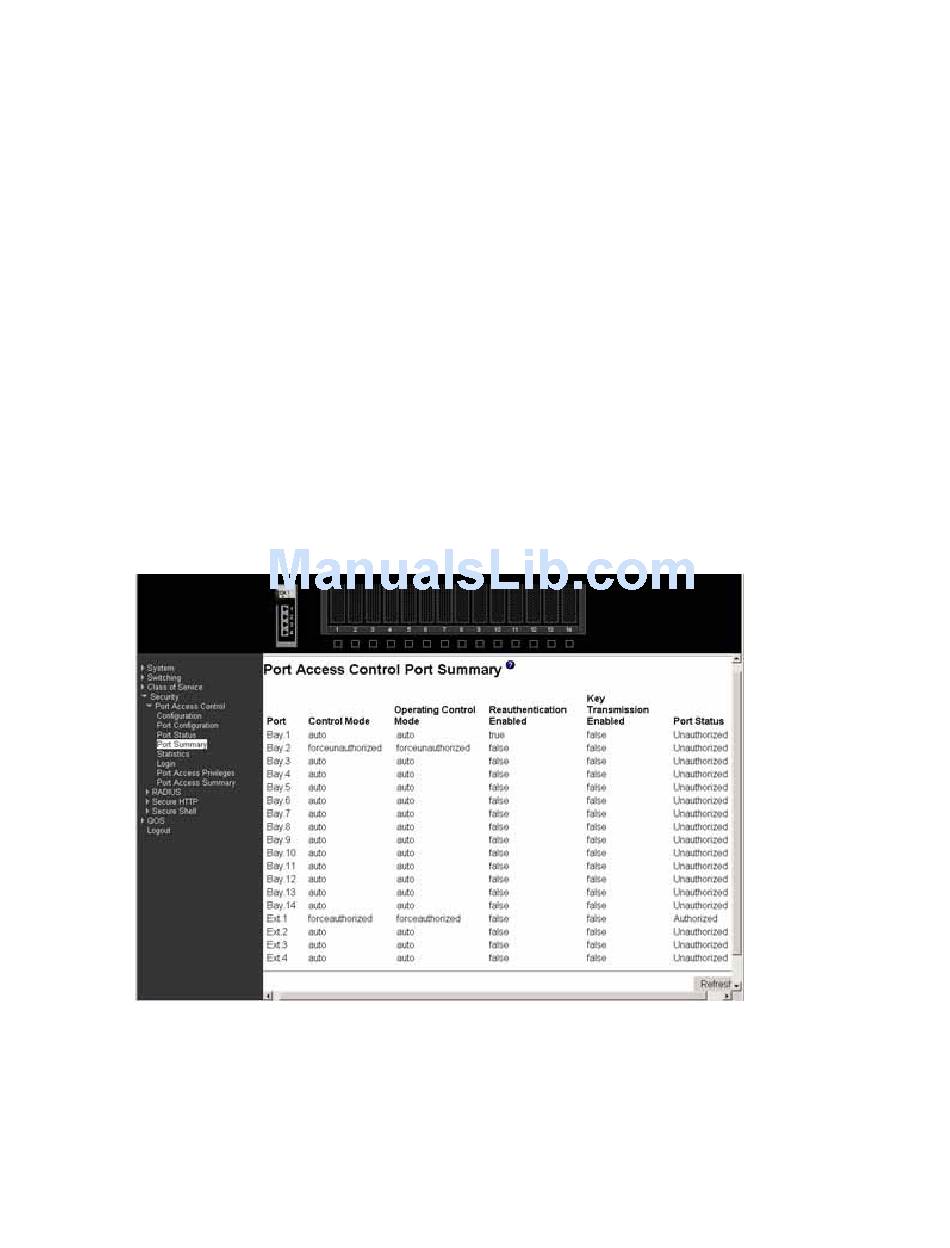

Port summary
This panel displays a summary of the IEEE 802.1X configuration parameters for all switch ports.
Port The port whose settings are displayed in the associated table row.
Control Mode
Displays the configured control mode for the port. Possible values are:
122
Aborting
Held
Force Authorized
Force Unauthorized
Request
Response
Success
Fail
Timeout
Initialize
Idle
