STP Mode The Spanning Tree Protocol Administrative Mode associated with the LAG. The
possible values are:
Disable
Enable
Link Trap Indicates whether or not a trap will be sent when link status changes. The factory
default is Enabled.
Member Ports
A listing of the ports that are members of this LAG, in port notation. There can be a
maximum of 8 ports assigned to a given LAG.
MFDB
The Multicast Forwarding Database (MFDB) holds the port membership information for all active
multicast address entries. The key for an entry consists of a VLAN ID and MAC address pair.
Entries may contain data for more than one protocol. Options on this menu are:
•

MFDB table

• GMRP table
• IGMP snooping table
• Stats

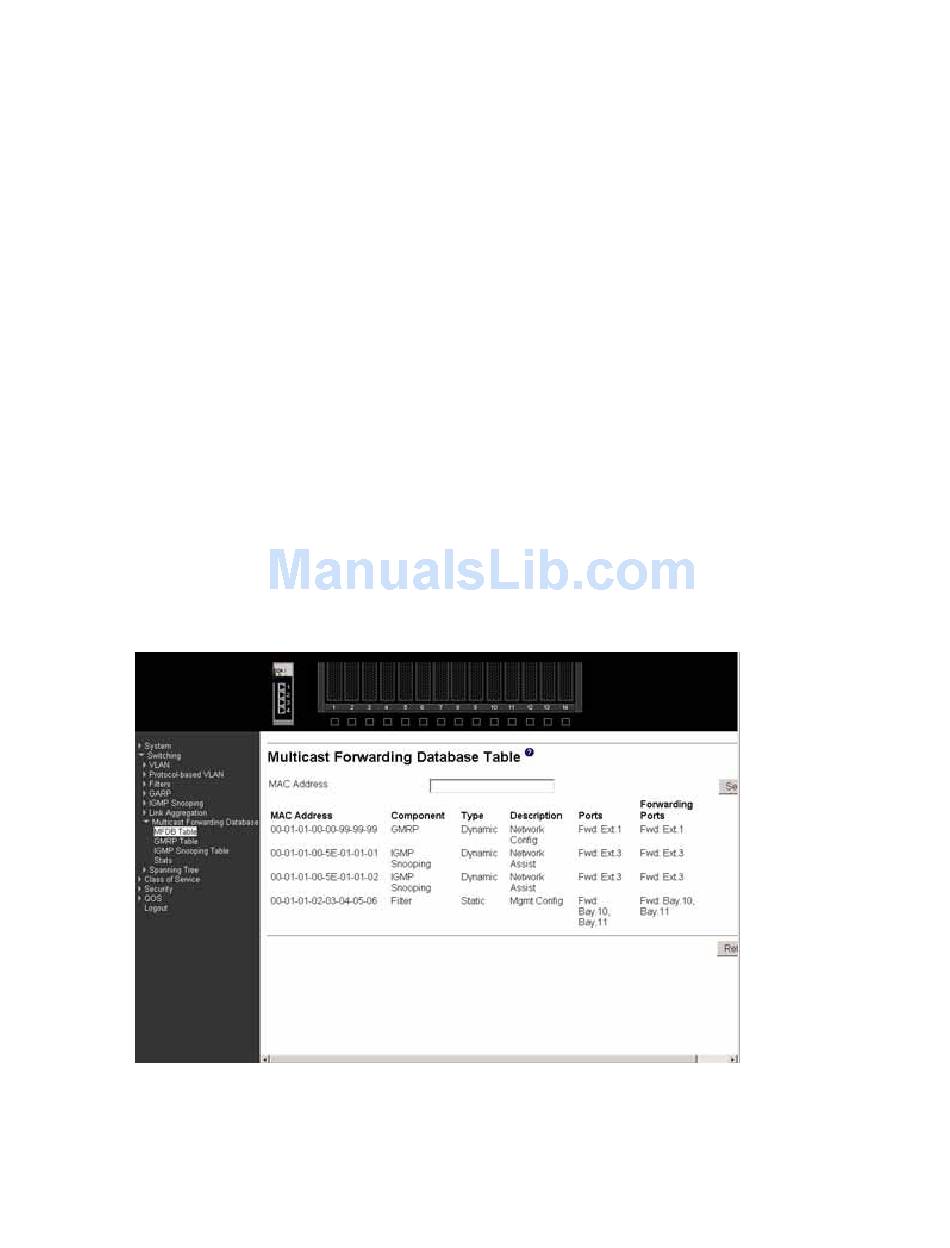

MFDB table
Use this panel to display entries from the MFDB.
Intel® Blade Server Ethernet Switch Module IXM5414E
Spanning tree is Disabled for this LAG.
Spanning tree is Enabled for this LAG.
107
