• Port configuration
• Port status
• Port summary
• Statistics
• Login
• Port access privileges
• Port access summary

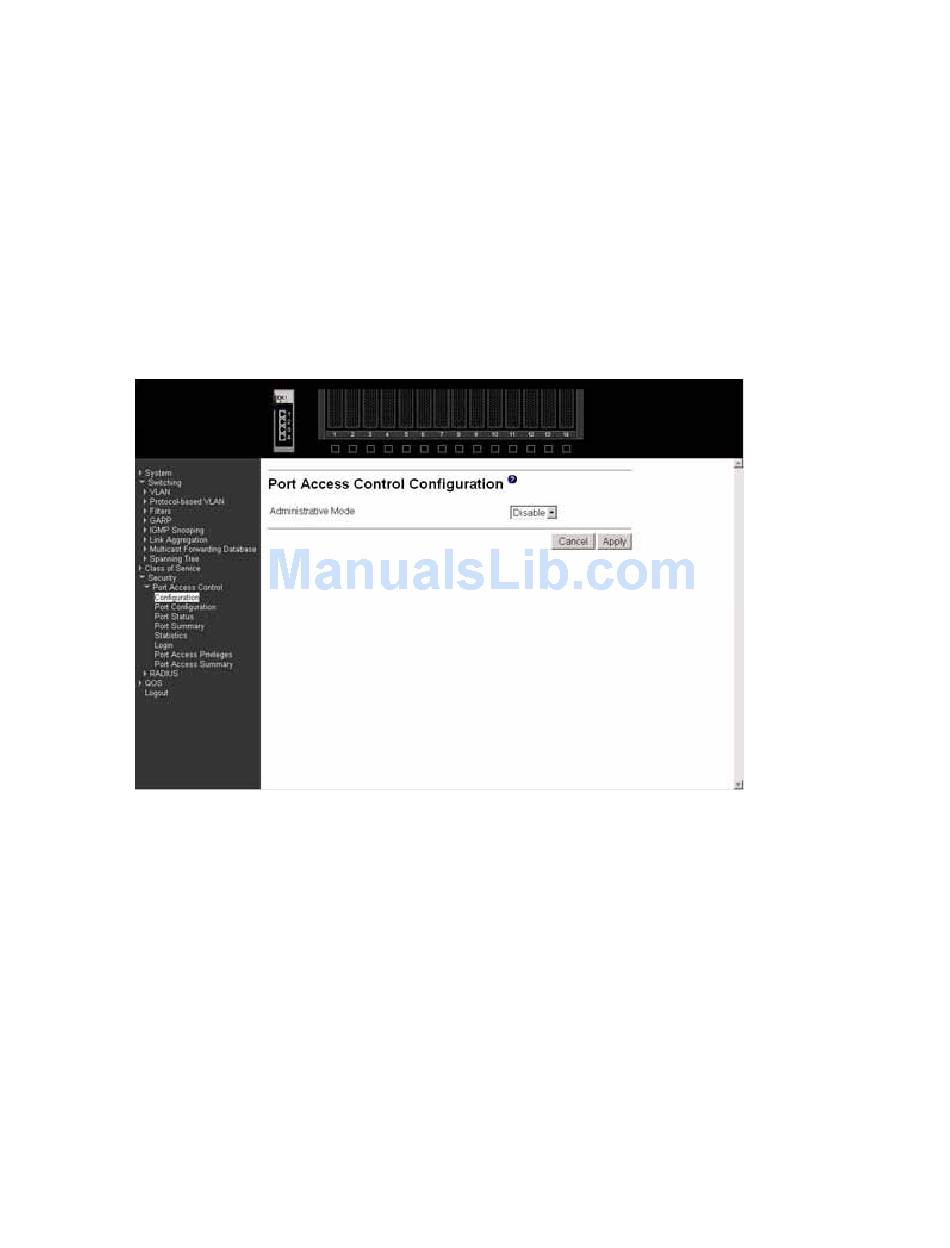

Configuration
Use this panel to enable or disable authentication support on the switch. In disabled mode, the IEEE
802.1X configuration is retained and can be changed, but it is not activated.
Administrative Mode
Lists the two options for administrative mode: Enable and Disable. The default
value is Disable.
Click the Cancel button to reset the page to display the administrative mode that is currently
configured by the selected unit.
Click the Apply button to send the updated screen to the switch and cause the changes to take effect
on the switch. If you want the switch to retain the new values across a power cycle you must perform
a save.
Port configuration
Use this panel to begin the initialization or the reauthentication sequence on the selected port.
