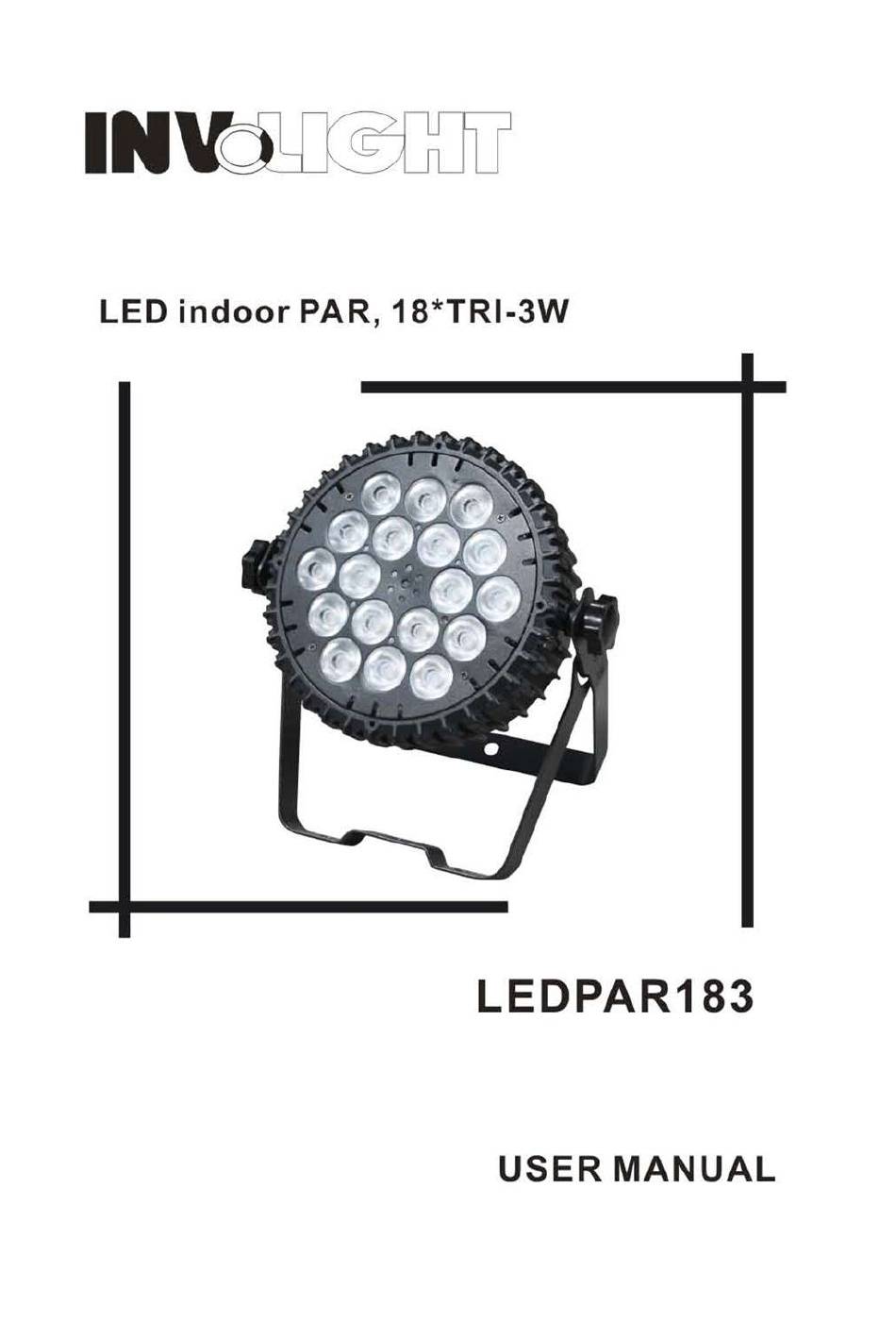

- Page 2 LED Indoor Par, 18*Tri-3W User Manual Our indoor LED par offers many possibilities to achieve the effects which you want. It is for DJs, bands, nightclubs and other performers who want a complete LED wash light system. Please read the manual before operation. A.
- Page 3 select built-in programs 7 kinds of static color (1.-r; 2.-rg; 3.-g; 4.-gb; 5.-b; 6.-rb; 7.rgb), when display 7.rgb, press the “SETUP” can adjust the brightness of red, green, blue by “UP” or “DOWN”, then press the “SETUP” can set the color strobe “FSxx”, adjust the strobe speed by “UP”...
- Page 4 0-255 GREEN 0-255 BLUE DMX mode 3： CHANNEL VALUE FUNCTION 0-255 MASTER DIMMER 0-255 0-255 GREEN 0-255 BLUE DMX mode 4： CHANNEL VALUE FUNCTION 0-255 Master dimming Red dimming 0-255 Red dimming 0-255 R(255) 9-17 R(255) G(50) 18-26 R(255) G(150) 27-35 R(255) G(255) 36-44...
- Page 5 180-188 R(50) G(220) B(100) 189-197 R(150) G(220) 198-206 R(150) B(220) 207-215 G(180) B(220) 216-224 G(220) B(50) 225-233 R(220) G(100) B(50) 234-242 R(220) G(200) B(100) 243-251 R(255) G(200) B(150) 252-255 R(255) G(255) B(255) speed adjust(control the CH625-249select 0—255 slow —fast 0-255 the programs speed）...
- Page 6 225-249 Pr10（blue gradient） 250-255 Sound active 4. Master/slave Mode Press the “MODE”, enter slave mode “SLAV”. 5. Sound-Active Mode Press the “MODE”, enter sound active mode “SU.XX” (00-31) Press the “UP” or “DOWN” can adjust the sonic sensitivity. Note: A. If 4 buttons haven’t been pressed in 20 seconds， digital display will disable. At the same time the buttons will be locked to prevent from error operating.
