- Page 1 F2 Ultra Quick Start Guide Kurzanleitung Guía de inicio rápido Guide de démarrage rapide Guida rapida Korte handleiding Manual de referência rápida クイックガイド 빠른�시작�가이드 快速入門指南 Skrócona instrukcja obsługi 快速使用指南 D1.1.1_KD011011000...
- Page 2 List of items Versões multi-idiomas e mais informações Para encontrar manuais do utilizador em idiomas múltiplos e mais ajuda, visite, se faz o favor, support.xtool.com/article/1961 ou leia o código QR. Meet xTool F2 Ultra Wersje wielojęzyczne i więcej informacji Aby znaleźć instrukcje obsługi w wielu językach i dodatkową pomoc, odwiedź...

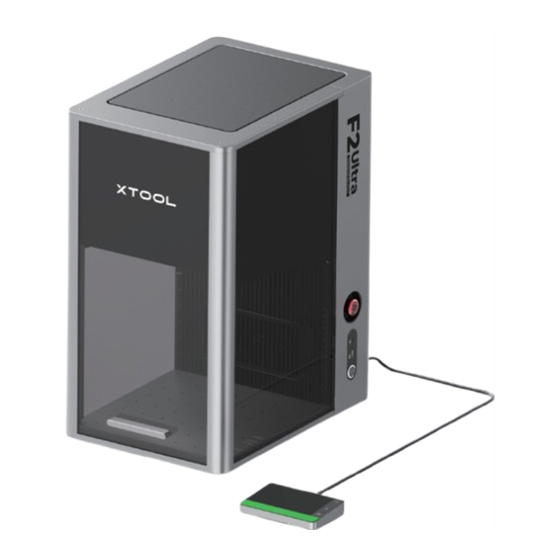

- Page 3 List of items Meet xTool F2 Ultra Product structure Field lens Protective Laser guide enclosure Port for rotary Indicator attachment/conveyor Touchscreen controller Pipe xTool F2 Ultra Reserved port A Camera for distance measuring Smoke outlet Camera for positioning Gas input for fire safety set...
- Page 4 Maximum processing speed 15,000 mm/s Handhold The single-laser xTool F2 Ultra includes only a 60 W infrared MOPA working laser. The 40 W blue-light diode laser is not included in the single-laser model. By gripping on the handholds, you can easily Install xTool F2 Ultra move the machine.
- Page 5 Power on Ensure that the side with the notch faces upward. Press the power button to turn on xTool F2 Ultra. Connect to a power supply. Never use the emergency stop button as a power button. Use the emergency stop button only when an emergency occurs. Using it...
- Page 6 Set up the language (2) Use the USB cable to connect xTool F2 Ultra to your computer, and then connect xTool F2 Ultra in the software. Set the UI language of the touchscreen controller. The other end of the USB cable can be connected to a USB Type-A or Type-C port.
- Page 7 Use accessories Maintenance Slatted panel Disconnect power before maintaining the product. To cut a material, you are advised to use the slatted panel. It can reduce the areas burned and protect the baseplate during material processing. Clean the field lens When laser power attenuation occurs, for example, engraved patterns are shallow or materials can't be cut as expected, the field lens may get dirty.
- Page 8 (2) Open the cover, and then take out the fan module. (3) Open the cover to reveal the fan. (4) Use a brush or other tools to clean the fan module and the magnetic fan guard. Then, install them back to the main unit. Brush (Not provided) (Magnetic fan guard) (Bottom)
