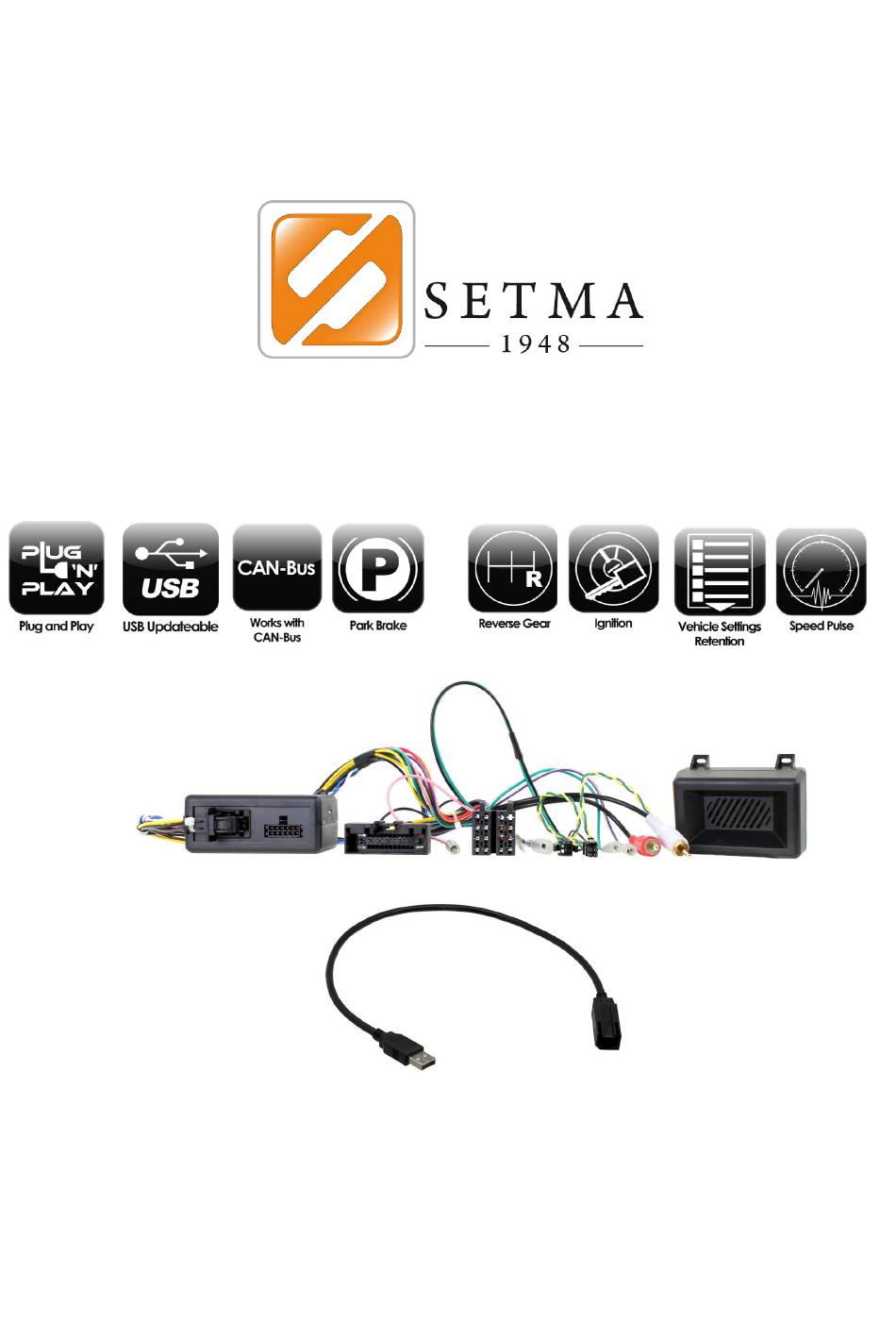

- Page 1 E01FO10011 Ford Steering Wheel Control Interface INSTRUCTION MANUAL...
- Page 2 SETMA want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting SETMA, try to provide as much Information as possible. This will speed up the process and help us to help you.
- Page 3 FITTING GUIDE 1. Remove and disconnect the original head unit. 2. Connect the 12 way molex connector of the head unit patch lead (supplied separately) to the interface. 3. Connect the opposite end of head unit patch lead to the head unit steering wheel control input on the back of the aftermarket head unit.
- Page 4 FITTING GUIDE For aftermarket head units which do not have an ISO connector the interface uses the following wiring colours: Wire Colour Function Wire Colour Function Purple Right Rear Speaker + Yellow Permanent 12V Purple/Black Right Rear Speaker - Black Ground Green Left Rear Speaker +...
